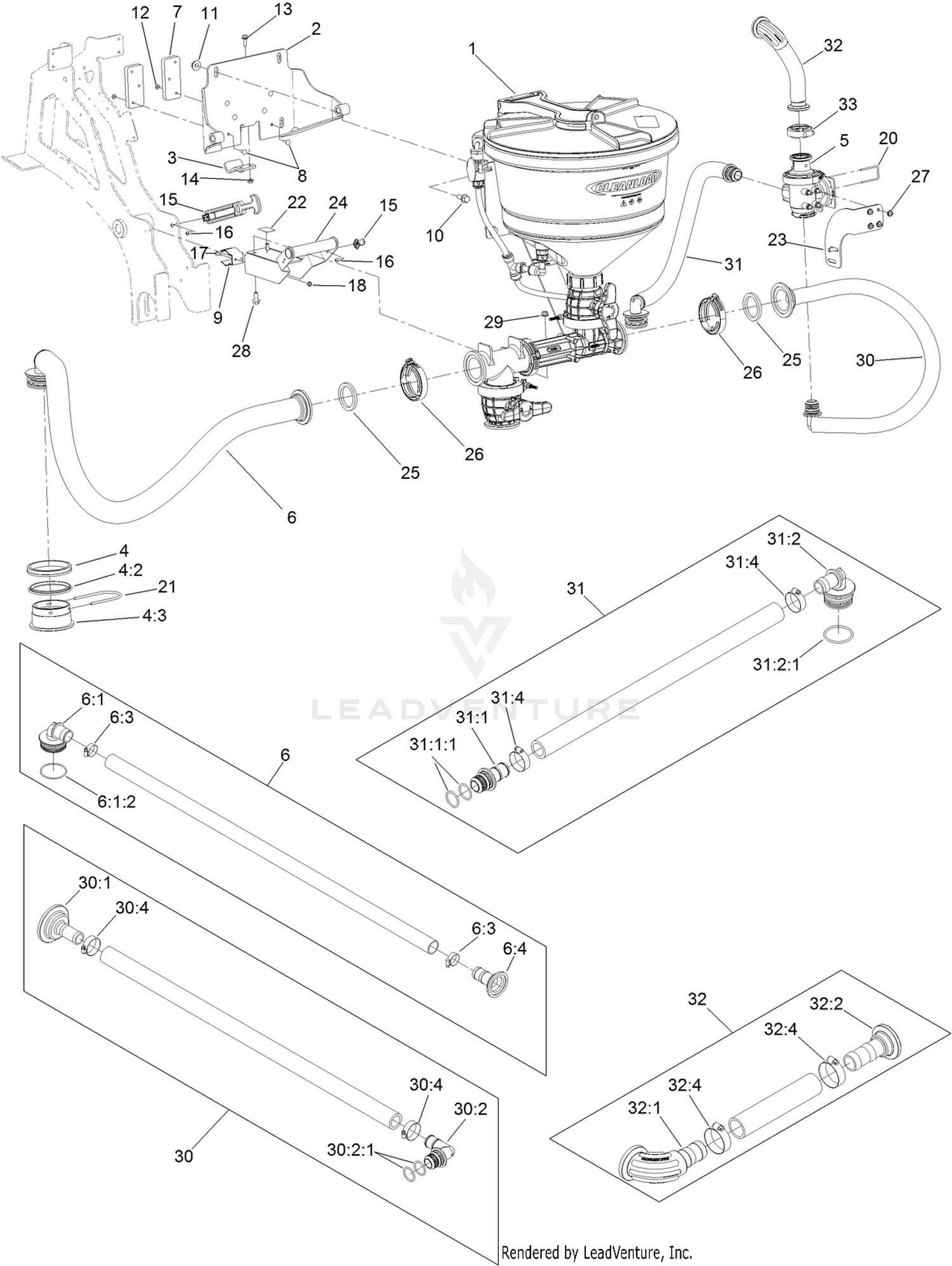

Eductor Mounting Assembly

Ref	Part Number	Description
1	127-2949	EDUCTOR ASM Price: $2,558.78
2	119-4912-03	PLATE-PIVOT Price: $150.18
3	119-4928	BRACKET-LATCH Price: $15.02
4	117-7851	BULKHEAD ASM Price: $108.56
5	130-7324	EDUCTOR VALVE ASM Price: $720.34
6	125-4162	EDUCTOR HOSE ASM Price: $300.94
7	119-4963	PAD-WEAR Price: $42.68
8	1-807533	BOLT-CARR Price: $0.99
9	119-4937	CLIP-SPRING Price: $21.31
10	3234-11	SCREW-HHF Price: $1.23
11	32128-43	NUT-FLANGE Price: $0.94
12	3296-12	NUT-LOCK, NI Price: $1.29
13	3234-4	SCREW-HHF Price: $0.50
14	32128-33	NUT-HF Price: $0.25
15	115-8215	DRAW LATCH ASM Price: $63.51
16	115-9830	SCREW-HSBH Price: $0.42
17	3250-12	SCREW-PPH Price: $0.25
18	3296-2	NUT-LOCK, NI Price: $1.89
20	131-0235	FORK-FITTING, EDUCTOR VALVE Price: $2.77
21	117-7996	FORK Price: $9.74
22	119-4988	DECAL-LOCK Price: $24.30
23	131-5829-03	MOUNT-VALVE Price: $23.53
24	127-5000-03	HANDLE-EDUCTOR Price: $100.95
25	127-5004	GASKET Price: $3.39
26	127-5005	CLAMP-WORM SCREW Price: $10.92
27	104-7201	NUT-HF Price: $0.69
28	3234-47	SCREW-HHF Price: $1.79
29	104-8300	NUT-HF, NI Price: $0.39
30	131-5826	SUPPLY HOSE ASM Price: $102.64
31	131-5827	MAIN SUPPLY HOSE ASM Price: $107.34
32	131-5828	CONNECTION HOSE ASM Price: $95.18
