| Ref | Part Number | Description |
|---|
| 1 |
94-3307 |
PAD-PEDAL, TRACTION Price: $12.11 |
| 2 |
94-3591 |
DISCONTINUED Price: Call Us |
| 3 |
94-3308 |
PAD-PEDAL, TRACTION Price: $8.96 |
| 4 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 5 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 6 |
5-7570 |
WASHER-FLAT Price: $6.19 |
| 7 |
92-8854-03 |
PIVOT BRACKET ASM This part replaces 92-8854. Price: $81.10 |
| 8 |
92-5537 |
PIN-PEDAL, TRACTION Price: $41.17 |
| 9 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 10 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 15 |
63-6410-03 |
TUBE-PUMP, CONTROL ASM This part replaces 63-6410. Price: $187.48 |
| 16 |
3220-3 |
NUT-HJ Price: $0.28 |
| 17 |
323-29 |
SCREW-HH Price: $0.42 |
| 18 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 21 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 24 |
32128-56 |
NUT-HF Price: $1.09 |
| 25 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 26 |
92-5534 |
SHAFT-PEDAL, TRACTION Price: $55.59 |
| 27 |
92-5077 |
BRACKET-FOOTREST Price: $10.24 |
| 28 |
32128-44 |
NUT Price: $2.69 |
| 30 |
92-5514-01 |
FOOTREST ASM This part replaces 92-5514. Price: $37.73 |
| 31 |
92-5750 |
PAD-FOOTREST Price: $11.26 |
| 503200735 |
503200782 |
SCREW IHSCFM This part replaces 503200735. Price: $3.99 |
| 503202956 |
503202956 |
SCREW Price: $4.99 |
| 503712201 |
503712201 |
BEARING Price: $11.99 |
| 537014101 |
537014101 |
GASKET Price: $3.99 |
| 537085102 |
537085103 |

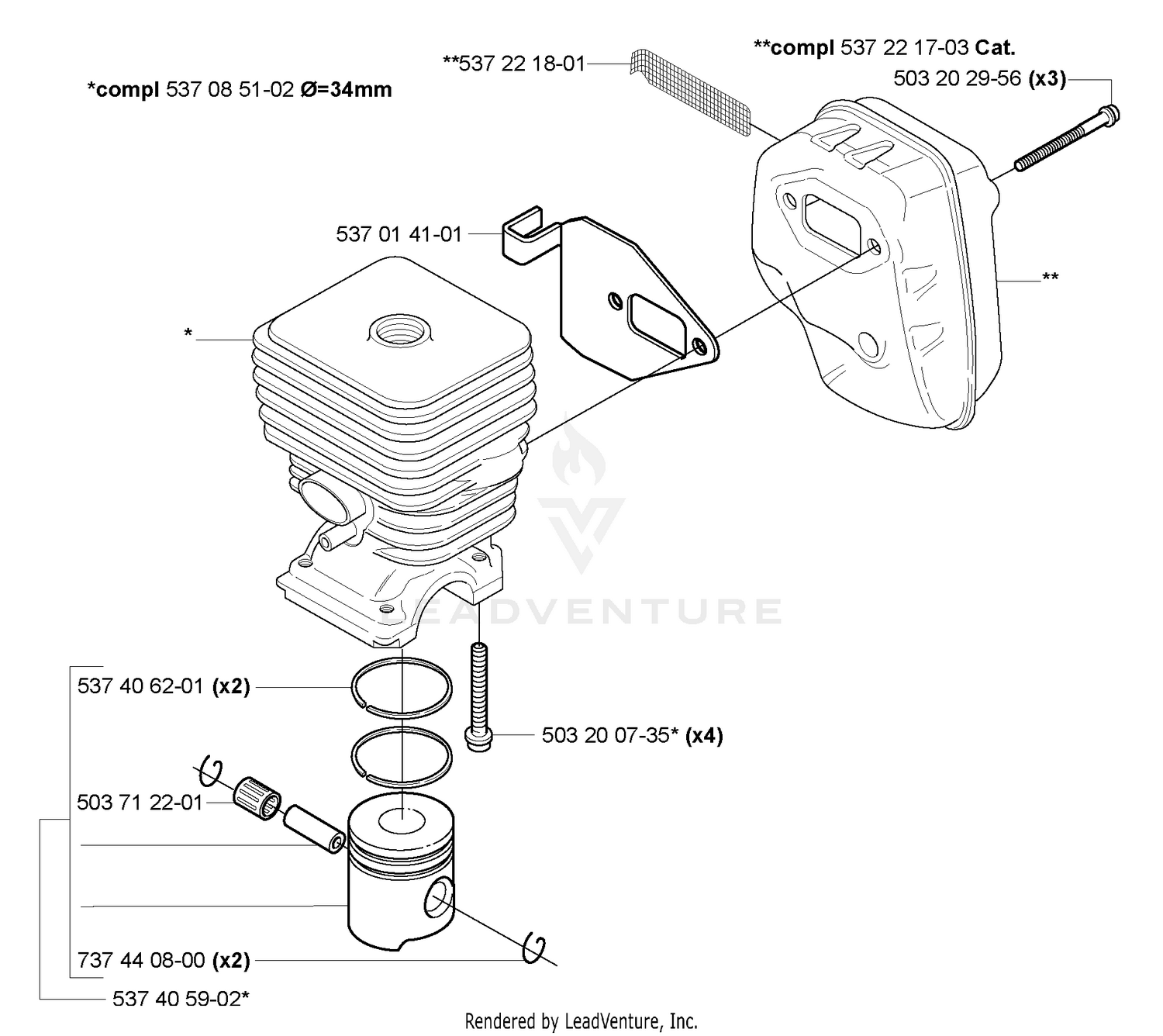

CYLINDER COMPL This part replaces 537085102. Price: $129.99 |
| 537221703 |
537221703 |
MUFFLER Price: $54.99 |
| 537221801 |
537221801 |
SPARK ARRESTOR SCREEN Price: $4.99 |
| 537405902 |
537405902 |
PISTON Price: $69.99 |
| 537406201 |
537406201 |
PISTON RING Price: $11.99 |
