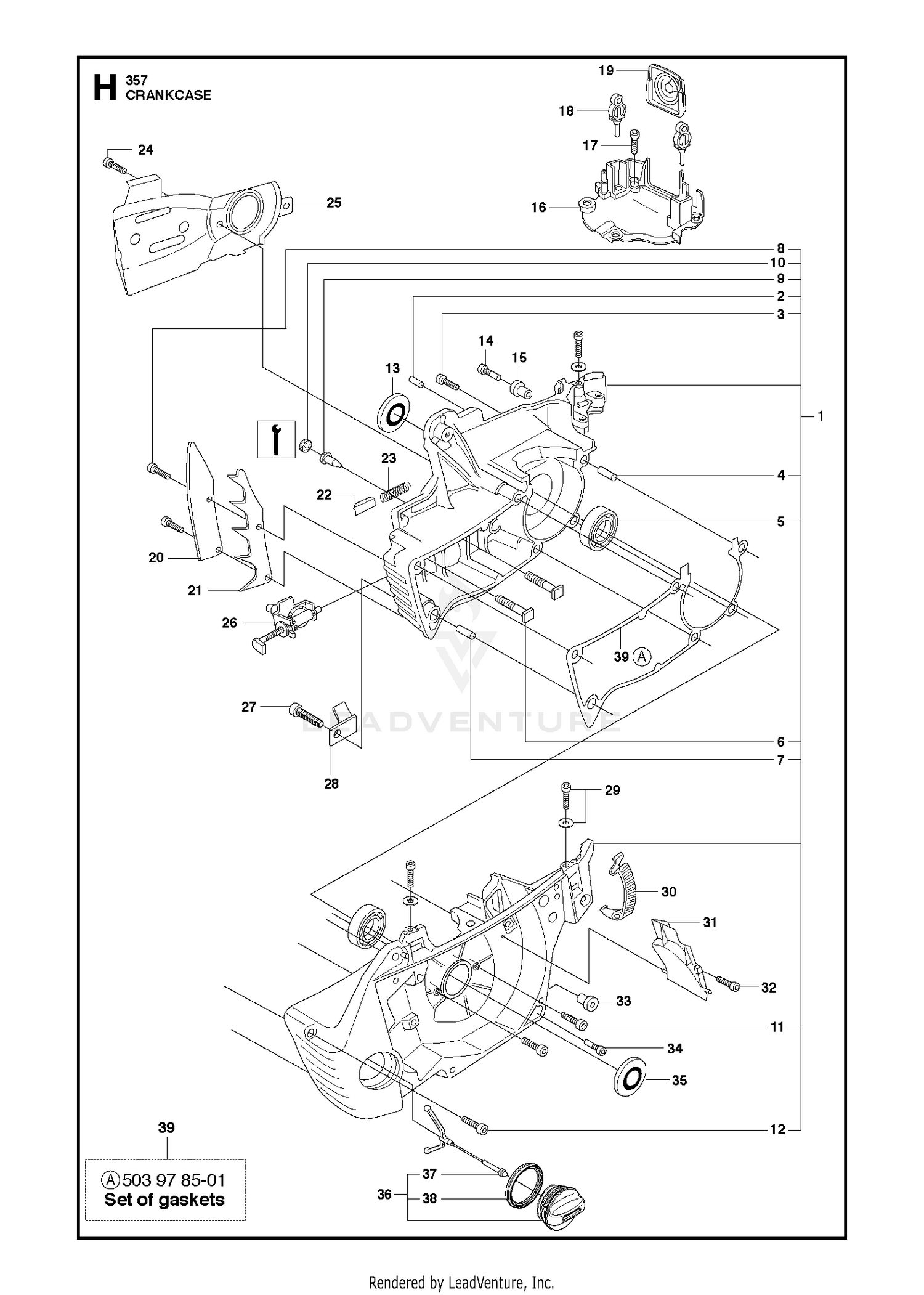

CRANKCASE
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503925305 | CRANKCASE ASSY Price: $229.00 |
| 2 | 721120730 | PIN Price: $3.99 |
| 3 | 503200832 | SCREW Price: $4.99 |
| 4 | 503905601 | Sleeve Price: $3.50 |
| 5 | 738220225 | BALL BEARING-6202-C3 SKF Price: $19.99 |
| 6 | 503875401 | BOLT Price: $4.99 |
| 7 | 503905601 | Sleeve Price: $3.50 |
| 8 | 503200776 | SCREW Price: $3.99 |
| 9 | 530026119 | VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 10 | 537403502 | SINTERED BRONZE FILTER This part replaces 537403501. Price: $2.99 |
| 11 | 503202516 | SCREW Price: $2.99 |
| 12 | 503200220 | SCREW Price: $2.99 |
| 13 | 505275719 | SEAL RING Price: $11.99 |
| 14 | 503215101 | SCREW Price: $3.99 |
| 15 | 503869201 | MOVEMENT LIMITER Price: $7.99 |
| 16 | 503927903 | BASE Price: $5.99 |
| 17 | 503217512 | SCREW Price: $3.99 |
| 18 | 597909701 | DAMPNER This part replaces 503869301. Price: $5.99 |
| 19 | 537146501 | BELLOWS Price: $12.99 |
| 20 | 537021801 | BUMPER Price: $8.99 |
| 21 | 503973801 | FELLING DOG Price: $12.99 |
| 23 | 503436501 | LOCK SPRING Price: $3.99 |
| 24 | 503217412 | SCREW Price: $2.99 |
| 25 | 503935401 | PLATE Price: $9.99 |
| 26 | 537071201 | CHAIN TENSIONER Price: $17.99 |
| 27 | 503218876 | SCREW Price: $4.99 |
| 28 | 537377901 | CHAIN CATCHER Price: $4.99 |
| 29 | 503213901 | SCREW Price: $3.99 |
| 30 | 503894701 | BUCKLE ORANGE Price: $11.99 |
| 31 | 503929001 | JET Price: $6.99 |
| 32 | 503217412 | SCREW Price: $2.99 |
| 33 | 503869201 | MOVEMENT LIMITER Price: $7.99 |
| 34 | 503215101 | SCREW Price: $3.99 |
| 35 | 505275719 | SEAL RING Price: $11.99 |
| 36 | 537215207 | TANK CAP This part replaces 537215202. Price: $9.99 |
| 37 | 503578901 | TANK LOCK Price: $4.99 |
| 38 | 589241101 | SEALING This part replaces 537215001. Price: $4.99 |
