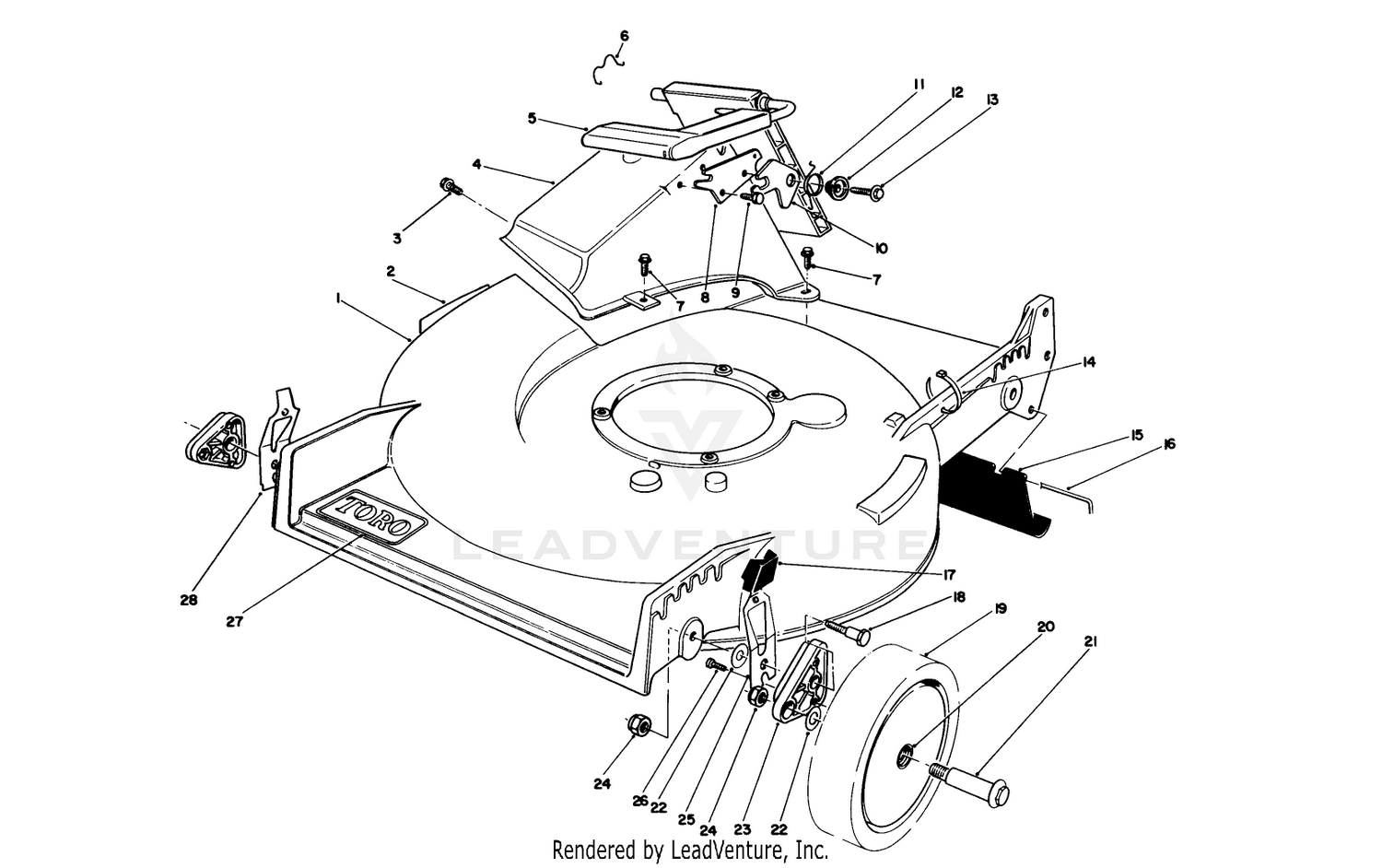

| Ref | Part Number | Description |
|---|
| 1 |
134639 |
Housing (Incl. Ref. #5) Price: Call Us |
| 2 |
39-5770 |
DECAL-DANGER Price: $5.12 |
| 3 |
46-6810 |
SCREW AND WASHER ASM Price: $3.49 |
| 4 |
82-9151 |
TUNNEL-DISCHARGE This part replaces 46-3501. Price: $109.15 |
| 5 |
77-0200 |
DOOR ASSEMBLY This part replaces 51-0201. Price: Call Us |
| 6 |
47-5840 |
DOOR RET SPRING Price: $4.30 |
| 7 |
46-6811 |
SCREW-HWH Price: $3.09 |
| 8 |
23-1040 |
DOOR LATCH PLATE Price: $16.08 |
| 9 |
46-8090 |
SCREW-PLASTITE Price: $1.84 |
| 10 |
42-4010 |
SAFETY LATCH Price: Call Us |
| 11 |
33-4860 |
TORSION SPRING Price: $40.42 |
| 12 |
43-4840 |
DOOR SPACER Price: $4.83 |
| 13 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 14 |
250-4 |
TIE-CABLE Price: $0.61 |
| 15 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $18.32 |
| 16 |
33-3208 |
ROD-SHIELD Price: $9.44 |
| 17 |
25-7740 |
KNOB-ARM Price: $3.38 |
| 18 |
66-0561 |
SCREW-SHOULDER Price: $5.49 |
| 19 |
51-2751 |
WHEEL AND TIRE ASM This part replaces 11-9509. Price: $21.88 |
| 20 |
27-6250 |
BUSHING Price: $2.17 |
| 21 |
27-6231 |
WHEEL BOLT Price: $3.28 |
| 22 |
40-1940 |
WASHER Price: $1.59 |
| 23 |
66-0580 |
ARM-PIVOT, FRONT Price: $11.73 |
| 24 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 25 |
71-0570 |
LH SPRING ARM ASSEMBLY Price: $14.30 |
| 26 |
32144-85 |
SCREW-HWH Price: $1.59 |
| 27 |
71-0600 |
DECAL Price: $7.93 |
