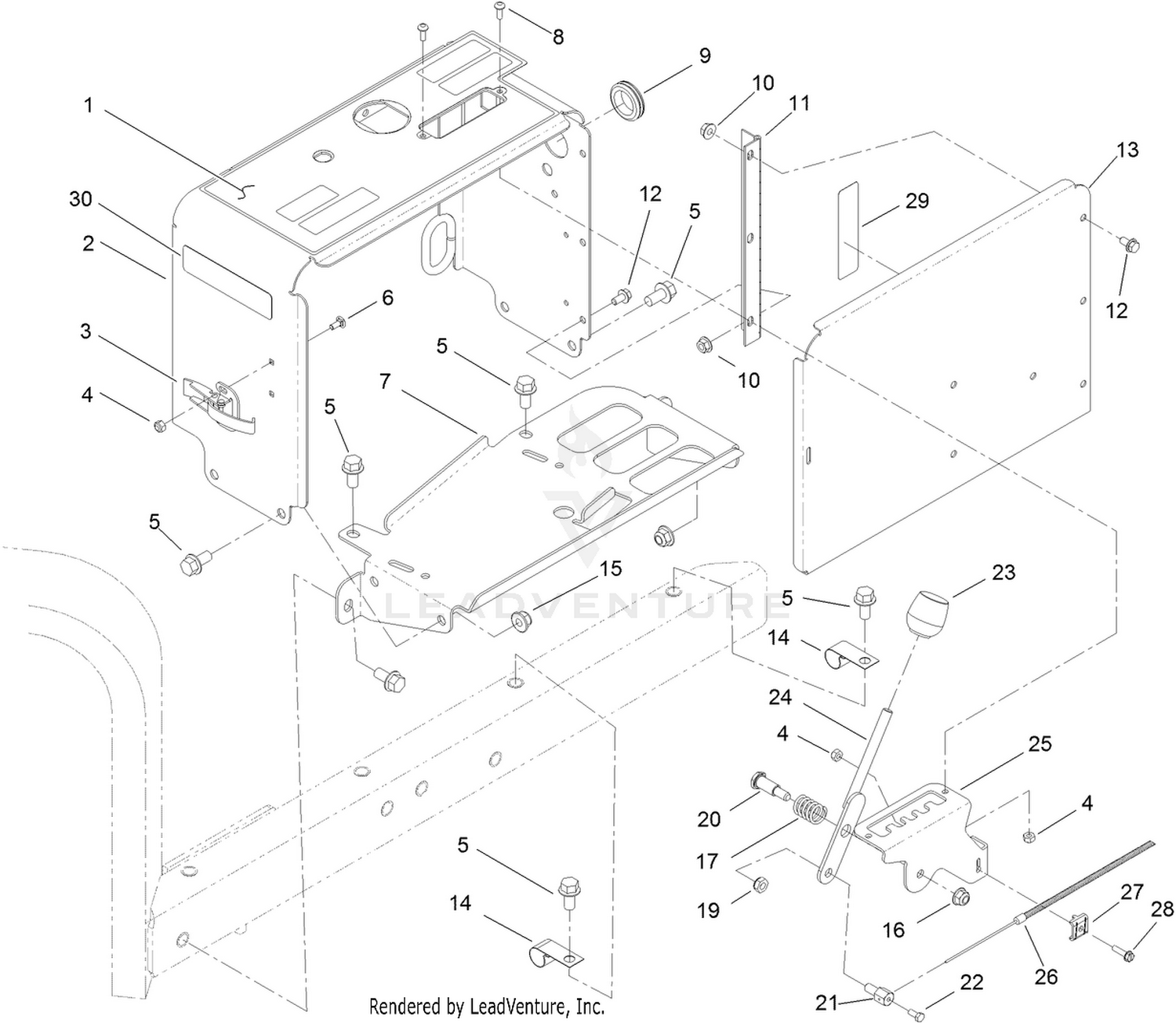

Console Assembly
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 106-8854 | DECAL-CONSOLE, MAIN Price: $22.38 |
| 2 | 105-1175-01 | CONSOLE Price: $168.42 |
| 3 | 249-21 | CLAMP-SLOTTED Price: $18.93 |
| 4 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 5 | 3234-1 | SCREW-HHF Price: $1.62 |
| 6 | 104-1450 | BOLT-CARR Price: $0.25 |
| 7 | 105-1182-01 | BASE-CONSOLE Price: $67.52 |
| 8 | 3250-12 | SCREW-PPH Price: $0.25 |
| 9 | 240-5 | GROMMET Price: $13.66 |
| 10 | 32128-33 | NUT-HF Price: $0.25 |
| 11 | 106-8908 | HINGE-CONSOLE Price: $43.11 |
| 12 | 3234-13 | SCREW-HHF Price: $0.77 |
| 13 | 105-1171-01 | COVER-CONSOLE Price: $59.59 |
| 14 | 2412-150 | CLIP-J Price: $1.63 |
| 15 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 16 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 17 | 20-6110 | SPRING-COMPRESSION Price: $12.99 |
| 19 | 3296-20 | NUT-LOCK, NI Price: $0.40 |
| 20 | 63-2650 | SCREW-SHOULDER Price: $6.19 |
| 21 | 98-9311 | SWIVEL-THROTTLE Price: $28.41 |
| 22 | 25-8640 | SCREW-HH Price: $1.09 |
| 23 | 233-37 | KNOB Price: $31.99 |
| 24 | 105-1167 | SPACING LEVER ASM Price: $19.44 |
| 25 | 105-1166-03 | BRACKET-LEVER, SPACER Price: $34.71 |
| 26 | 105-1062 | CABLE-CONTROL, SPACING Price: $25.70 |
| 27 | 81-1690 | CLAMP-CABLE Price: $2.24 |
| 28 | 32105-13 | SCREW-HWH Price: $1.59 |
| 29 | 107-7555 | DECAL-BLOCK, FUSE Price: $4.82 |
