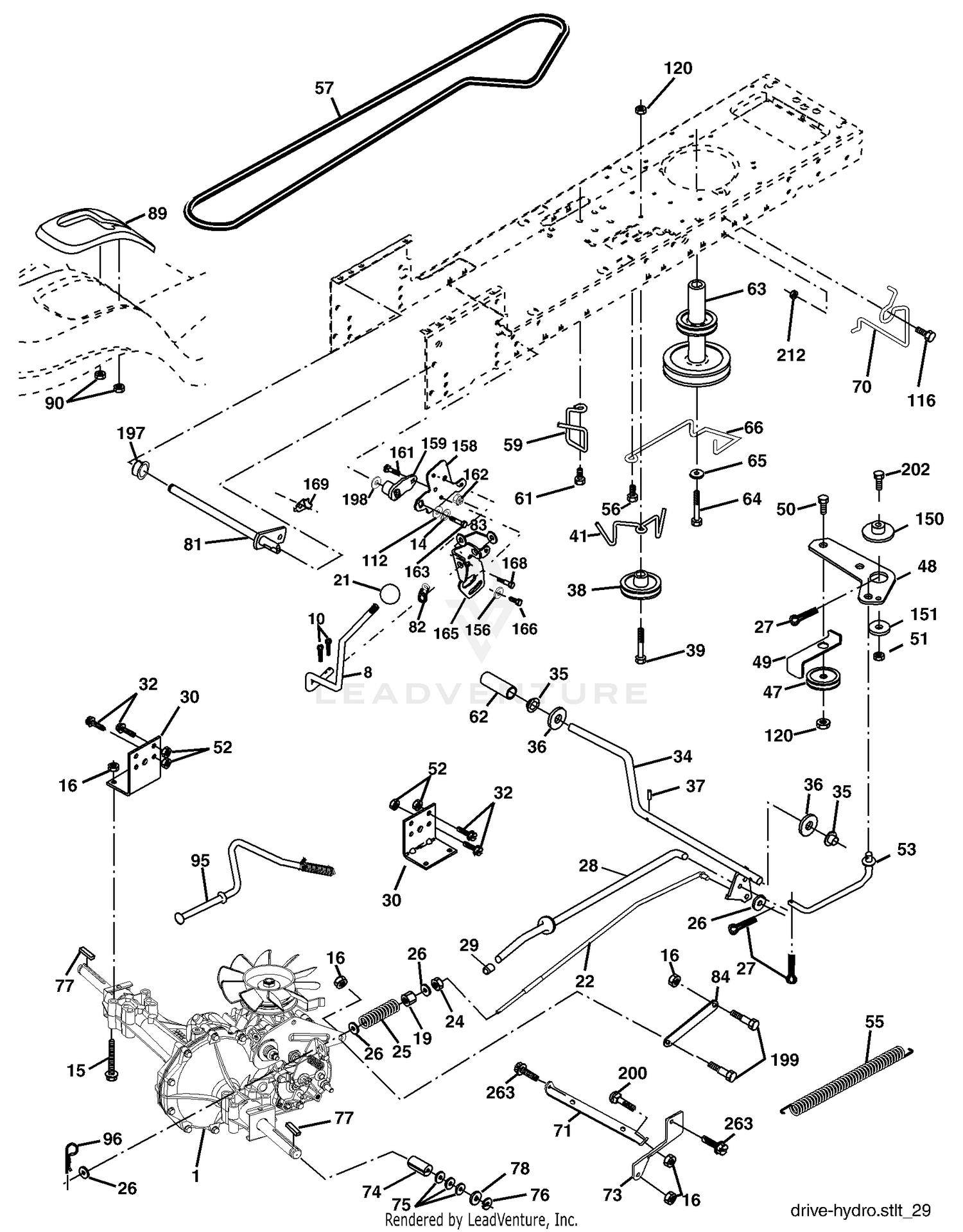

| Ref | Part Number | Description |
|---|
| 8 |
165866 |
Rod, Shift Price: Call Us |
| 10 |
76020416 |
Pin, Cotter 1/8 x 1 Price: Call Us |
| 14 |
10040400 |
Washer Lock 1/4 Price: Call Us |
| 15 |
74490544 |
Bolt Hex Flghd 5/16-18 Gr. 5 Price: Call Us |
| 16 |
73800500 |
Nut, Lock Hex w/Ins 5/16-18 unc Price: Call Us |
| 19 |
73800600 |
Nut Lock Hex w/Ins 3/8-16 Price: Call Us |
| 21 |
106933X |
Knob Price: Call Us |
| 22 |
169498 |
Rod, Brake Price: Call Us |
| 24 |
73350600 |
Nut Price: Call Us |
| 25 |
106888X |
Spring, Rod, Brake Price: Call Us |
| 26 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 27 |
STD561210 |
Pin, Cotter 1/8 x 3/4 Price: Call Us |
| 28 |
175765 |
Rod, Parking Brake Price: Call Us |
| 29 |
71673 |
Cap, Parking Brake Price: Call Us |
| 30 |
169592 |
Bracket, Transmission Price: Call Us |
| 32 |
74760512 |
Bolt Hex 5/16-18 unc x 3/4 Price: Call Us |
| 34 |
175578 |
Shaft, Foot Pedal Price: Call Us |
| 35 |
120183X |
Bearing, Nylon Price: Call Us |
| 36 |
19211616 |
Washer Price: Call Us |
| 37 |
1572H |
Pin, Roll Price: Call Us |
| 38 |
179114 |
Pulley, Composite Price: Call Us |
| 39 |
72110622 |
Bolt Price: Call Us |
| 41 |
175556 |
Keeper, Belt, Idler Price: Call Us |
| 47 |
127783 |
Pulley, Idler, V-Belt Price: Call Us |
| 48 |
154407 |
Bellcrank Clutch Grnd Drustl Price: Call Us |
| 49 |
123205X |
Retainer, Belt Price: Call Us |
| 50 |
72110612 |
Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 51 |
73680600 |
Nut Price: Call Us |
| 52 |
73680500 |
Nut Crownlock 5/16-18 Price: Call Us |
| 53 |
105710X |
Link, Clutch Price: Call Us |
| 55 |
105709X |
Spring, Return, Clutch Price: Call Us |
| 56 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 57 |
140294 |
V-Belt, Drive Price: Call Us |
| 59 |
169691 |
Keeper, Belt, Center Price: Call Us |
| 61 |
17120614 |
Screw 3/8-16 x .875 Price: Call Us |
| 62 |
8883R |
Cover, Pedal Price: Call Us |
| 63 |
175410 |
Pulley, Engine Price: Call Us |
| 64 |
173937 |
Bolt Hex 7/16 x 4 Gr. 5 Price: Call Us |
| 65 |
10040700 |
Washer Price: Call Us |
| 66 |
154778 |
Keeper, Belt Engine Hydro Price: Call Us |
| 70 |
134683 |
Guide, Belt, Mower Drive RH Price: Call Us |
| 71 |
169183 |
Strap, Torque, Lh Price: Call Us |
| 73 |
169182 |
Strap, Torque, Rh Price: Call Us |
| 74 |
137057 |
Spacer, Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 76 |
12000001 |
Ring, E Price: Call Us |
| 77 |
123583X |
Key, Square Price: Call Us |
| 78 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 81 |
165596 |
Shaft Asm Cross Price: Call Us |
| 82 |
165711 |
Spring, Torsion Price: Call Us |
| 83 |
19171216 |
Washer 17/32 x 3/4 x 16 Ga. Price: Call Us |
| 84 |
169594 |
Link Transaxle Price: Call Us |
| 89 |
164890X428 |
Console, Shift Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wshd 1/4 Price: Call Us |
| 95 |
170201 |
Control Asm Bypass Hydro Price: Call Us |
| 96 |
4497H |
Spring, Retainer 1" Price: Call Us |
| 112 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 116 |
72140608 |
Bolt Rdhd Sq Neck 3/8-16 x 1 Price: Call Us |
| 120 |
73900600 |
Nut Lock Flg 3/8-16 Price: Call Us |
| 150 |
175456 |
Spacer Retainer Price: Call Us |
| 151 |
19133210 |
Washer 13/32 x 2 x 10 Price: Call Us |
| 156 |
166002 |
Washer 5/16 x 1.0 x 1.25 Price: Call Us |
| 158 |
165589 |
Bracket Shift Mount Price: Call Us |
| 159 |
183900 |
Hub Shift Price: Call Us |
| 161 |
72140406 |
Bolt Rdhd Sqnk 1/4-20 x 3/4 Gr. 5 Price: Call Us |
| 162 |
73680400 |
Nut Crownlock 1/4-20 unc Price: Call Us |
| 163 |
74780416 |
Bolt Hex Fin 1/4-20 x 1 Price: Call Us |
| 165 |
165623 |
Bracket Pivot Lever Price: Call Us |
| 166 |
17490510 |
Screw 5/16 x 18 x 5/8 Price: Call Us |
| 168 |
165492 |
Bolt Shoulder 5/16-18 x .561 Price: Call Us |
| 169 |
165580 |
Plate Fastener Cross Shaft Price: Call Us |
| 197 |
169613 |
Nyliner Snap-In Price: Call Us |
| 198 |
169593 |
Washer Nyliner Price: Call Us |
| 199 |
169612 |
Bolt Shoulder 5/16-18 unc Price: Call Us |
| 200 |
72140508 |
Bolt Rd Hd Sqnk 5/16-18 unc x 1 Price: Call Us |
| 202 |
72110614 |
Bolt Carr. Sh 3/8-16 x 1-3/4 Gr. 5 Price: Call Us |
| 212 |
145212 |
Nut Hex Flange Lock Price: Call Us |
