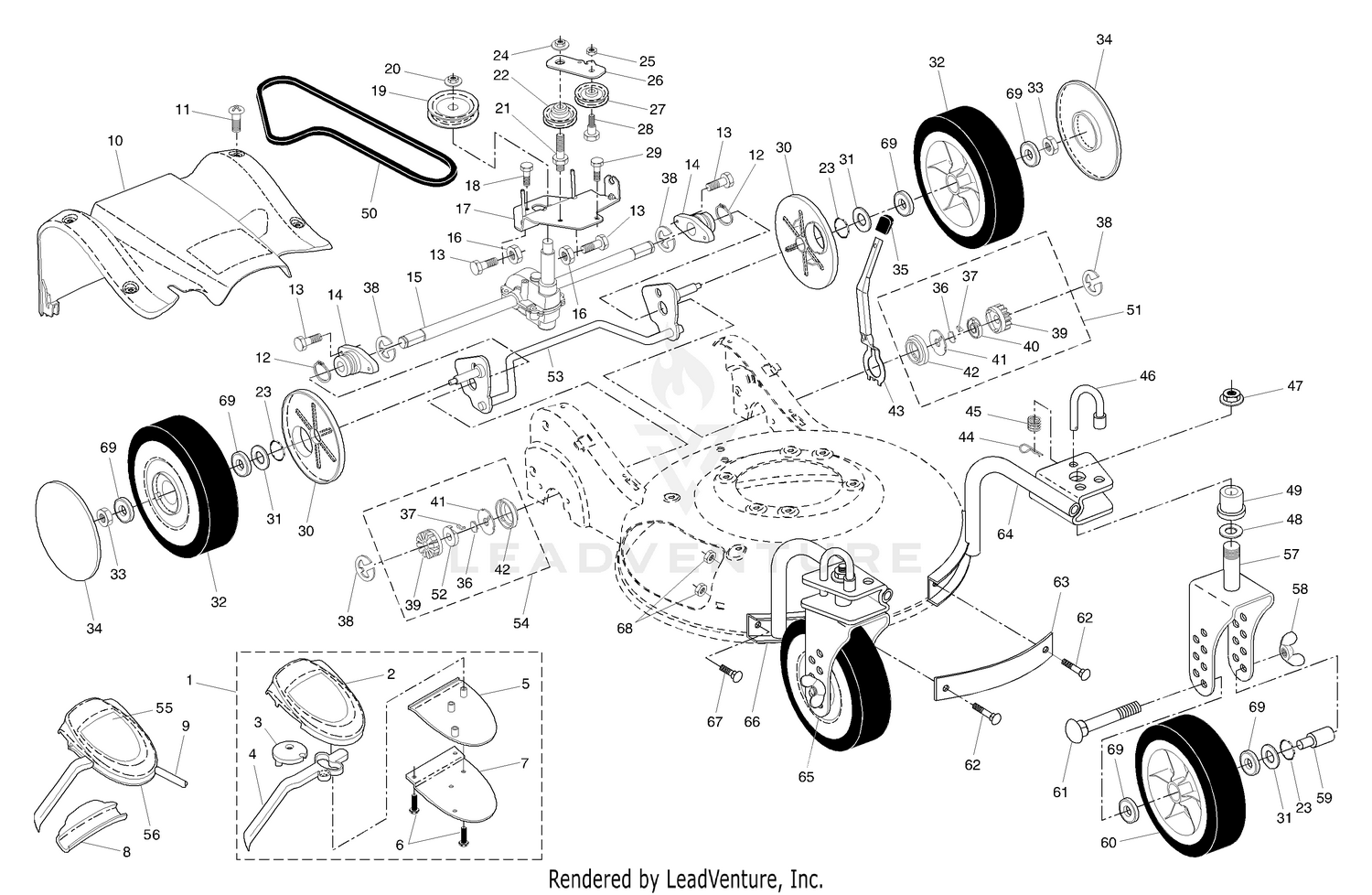

| Ref | Part Number | Description |
|---|
| 1 |
72-5620 |
GASKET Price: $7.10 |
| 2 |
532197168 |
KIT.CONTL.ASM.CASE.HALVES.GREY This part replaces 532188279. Price: $44.99 |
| 2 |
72-5740 |
OIL SEAL Price: $31.19 |
| 3 |
251-348 |
BEARING-BALL Price: $54.23 |
| 3 |
532187353 |
PULLEY.CAM.DRIVE.CONTROL.HV Price: $6.99 |
| 4 |
532425662 |
LEVER.BLACK This part replaces 532190283. Price: $12.99 |
| 4 |
72-5720 |
RETAINING RING Price: $6.96 |
| 5 |
532197168 |
KIT.CONTL.ASM.CASE.HALVES.GREY This part replaces 532188278. Price: $44.99 |
| 5 |
72-5580 |
BEVEL GEAR Price: $289.19 |
| 6 |
251-8 |
BEARING-BALL Price: $30.06 |
| 6 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 7 |
532400723 |
BRACKET.DRIVE.CONTROL.MOUNT.BL This part replaces 532187097. Price: $4.99 |
| 7 |
72-5670 |
DISCONTINUED Price: Call Us |
| 8 |
532186297 |
EZ WALK SNAP COVER PLATE Price: $5.99 |
| 8 |
77-2980 |
DISCONTINUED Price: Call Us |
| 9 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 9 |
532196577 |
DRIVE CONTROL CABLE This part replaces 532188280. Price: $54.99 |
| 10 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 10 |
532188356 |
RP.COVER.DRIVE.REAR.21.HV.GRAY This part replaces 532190565. Price: $27.99 |
| 11 |
532194188 |
SCREW This part replaces 532184571. Price: $3.99 |
| 12 |
251-347 |
BEARING-BALL Price: $9.69 |
| 12 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 13 |
532194186 |
SCREW.1/4-20X21/4.HEX. This part replaces 532183450. Price: $3.99 |
| 13 |
72-5790 |
BOLT - HEX HD Price: $1.49 |
| 14 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 14 |
532187120 |
BEARING.SUPPORT.ASSEM Price: $32.99 |
| 15 |
532188294 |
TRANSMISSION.21.HI-VAC.EZ Price: $129.99 |
| 15 |
72-5590 |
DISCONTINUED Price: Call Us |
| 16 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 532132004. Price: $1.99 |
| 16 |
72-5630 |
GASKET Price: $9.39 |
| 17 |
251-349 |
BALL BEARING Price: $36.05 |
| 17 |
532189629 |
BRACKET, TRANSMISSION This part replaces 532191181. Price: $5.64 |
| 18 |
532163409 |
SCREW Price: $3.99 |
| 18 |
72-5090 |
DISCONTINUED Price: Call Us |
| 19 |
532194128 |
PULLEY This part replaces 532189408. Price: $17.99 |
| 19 |
72-5680 |
SPACER Price: $15.47 |
| 20 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532132010. Price: $3.99 |
| 20 |
72-5560 |
KNUCKLE KING PIN Price: $158.96 |
| 21 |
532188611 |
BOLT, IDLER Price: $2.99 |
| 21 |
93-3668 |
WASHER This part replaces 72-5600. Price: $60.34 |
| 22 |
532195326 |
KIT.PULLEY.IDLER. This part replaces 532184543. Price: $27.99 |
| 22 |
72-5640 |
NEEDLE BEARING Price: Call Us |
| 23 |
532197480 |
O-RING..070X.487.NEOPRENE This part replaces 532188152. Price: $3.99 |
| 23 |
99-5699 |
AXLE GEARBOX HSG ASM This part replaces 72-5510. Price: $845.79 |
| 24 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 24 |
72-5730 |
OIL SEAL Price: $18.07 |
| 25 |
251-263 |
BEARING Price: $98.96 |
| 25 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 26 |
532195327 |
KIT.PULLEY.IDLER.HI-VAC. This part replaces 532187098. Price: $5.99 |
| 26 |
72-5550 |
KNUCKLE CASE COVER Price: $190.19 |
| 27 |
281-10 |
PLUG Price: $14.99 |
| 27 |
532166043 |
IDLER PULLEY Price: $27.99 |
| 28 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 28 |
532160829 |
SHOULDER BOLT Price: $4.99 |
| 29 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 29 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 30 |
532183457 |
DUST COVER, WHEEL Price: $4.99 |
| 30 |
72-5540 |
DISCONTINUED Price: Call Us |
| 31 |
3272-17 |
PIN-COTTER Price: $1.79 |
| 31 |
532088348 |
WASHER.FLAT.1/2 Price: $3.99 |
| 32 |
532192622 |
WHEEL.9X2.25.LP.TIGER.BLACK This part replaces 532188631. Price: $69.99 |
| 32 |
72-5770 |
CASTELLATED NUT Price: $18.98 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532083923. Price: $3.99 |
| 33 |
72-5660 |
WHEEL SHAFT WASHER Price: $14.58 |
| 34 |
532183442 |
HUBCAP.WHEEL.5.SPOKE.SILVER This part replaces 532183695. Price: $4.99 |
| 34 |
72-5650 |
DISCONTINUED Price: Call Us |
| 35 |
532185994 |
KNOB.SELECTOR.SPRG.H-GRY (2 2) Price: $12.99 |
| 35 |
72-5570 |
DISCONTINUED Price: Call Us |
| 36 |
532188291 |
SPRING, TORSION Price: $3.99 |
| 36 |
72-5780 |
DISCONTINUED Price: Call Us |
| 37 |
281-7 |
CAP-PIPE Price: $3.69 |
| 37 |
532175098 |
PAWL.DRIVE.21.EZ-WALK Price: $4.99 |
| 38 |
72-5520 |
DISCONTINUED Price: Call Us |
| 38 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 39 |
532175103 |
GEAR, PINION Price: $10.99 |
| 40 |
532175105 |
RETAINER.DRIVE.21.EZ-WALK.LT Price: $5.99 |
| 41 |
532175104 |
DISC.DRIVE.21.EZ-WALK Price: $5.99 |
| 42 |
532184172 |
SEAL.PINION Price: $5.99 |
| 43 |
532188508 |
LEVER, SELECTOR, HEIGHT, REAR This part replaces 532190520. Price: $7.99 |
| 44 |
532065322 |
COTTER PIN (3 2)(2 2MC) Price: $3.99 |
| 45 |
532185051 |
SPRING Price: $4.99 |
| 46 |
532185054 |
ROD, LOCK Price: $7.99 |
| 47 |
532187247 |
NUT Price: $2.99 |
| 48 |
532188906 |
WASHER.FLAT.1/2 Price: $6.99 |
| 49 |
532195996 |
BUSHING. This part replaces 532188435. Price: $3.99 |
| 50 |
532183688 |
BELT.DRIVE.EZ.WALK.HI-VAC Price: $13.99 |
| 51 |
532414860 |
KIT.PINION.ASM This part replaces 532188331. Price: $76.99 |
| 52 |
532175102 |
RETAINER, DRIVE, RH Price: $5.99 |
| 53 |
532183698 |
REAR AXLE ASSY. This part replaces 532187091. Price: $22.99 |
| 54 |
532414860 |
KIT.PINION.ASM This part replaces 532188330. Price: $76.99 |
| 55 |
532189074 |
DECAL.DRIVE.CONTROL.HV Price: $5.99 |
| 56 |
532185913 |
DECAL Price: $5.99 |
| 57 |
532188661 |
BRACKET, CASTER WHEEL LH This part replaces 532188682. Price: $39.09 |
| 58 |
532187248 |
NUT.WING.5/16-18.YELLOW Price: $7.99 |
| 59 |
532185111 |
SPACER Price: $3.99 |
| 60 |
532192234 |
WHEEL.9X2.25.LP.TIGER.SILVER This part replaces 532186440. Price: $37.99 |
| 61 |
872270528 |
CARRIAGE BOLT Price: $4.99 |
| 62 |
532187474 |
BOLT Price: $3.99 |
| 63 |
532188475 |
STRAP.FRONT.CASTER.ORANGE Price: $22.99 |
| 64 |
532414070 |
SUPPORT.TUBE.ASM.LT This part replaces 532188681. Price: $109.99 |
| 65 |
532188662 |
BRACKET, CASTER WHEEL RH NLA This part replaces 532188684. Price: $42.99 |
| 66 |
532414069 |
SUPPORT.TUBE.ASM.RT This part replaces 532188683. Price: $59.99 |
| 67 |
532187555 |
BOLT Price: $2.99 |
| 68 |
596583702 |
Nuts This part replaces 532187263. Price: $2.99 |
