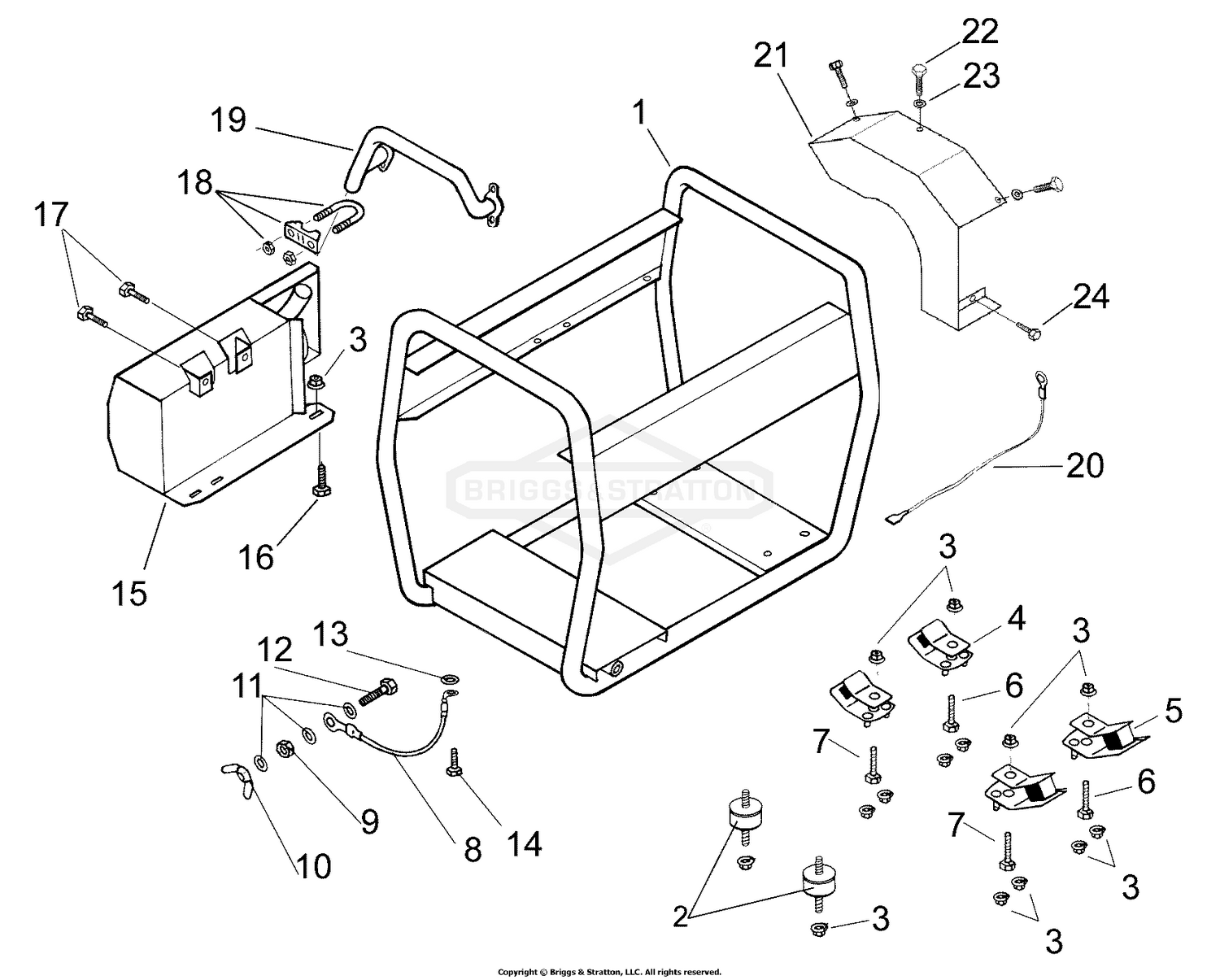

Frame and Fittings

Frame and Fittings

Parts (23)

RefPart NumberDescription
1 103214GS Cradle, ProMax 7500/9000 Price: Call Us
2 102034GS Vibration Mount 32mm Diameter Price: Call Us
3 ~NSP Nut Flange M8-1.25 Price: Call Us
4 102033GS Vibration Mount 45 Degree Soft Price: Call Us
5 102031GS Vibration Mount 45 Degree Hard Price: Call Us
6 ~NSP Screw Set HexHd M8-1.25x35mm Price: Call Us
7 102264GS Screw Set M8-1.25 x40 Price: Call Us
8 102050GS Lead Earth Assy 145mm Price: Call Us
9 ~NSP Nut Full M6-1.0 Price: Call Us
10 102036GS Nut Wing M6-1.0 Price: Call Us
11 ~NSP Washer Shakeproof 1/4" & M6 Int Price: Call Us
12 ~NSP Screw Set M6-1.0x25mm Plated Price: Call Us
13 ~NSP Washer Shakeproof M8 int Price: Call Us
14 ~NSP Screw Set M8-1.25x12 Plated Price: Call Us
15 103262GS Exhaust, V Twin, Franklin Price: Call Us
16 ~NSP Screw Set HHD M8-1.25 x 30mm Price: Call Us
17 ~NSP Screw Self Drill 5.5x1.8x20mm Price: Call Us
18 102327GS Exhaust Clamp Price: Call Us
19 102326GS Manifold Exhaust B&S V-Twin Price: Call Us
20 102329GS L.O.S. Wire Assembly Price: Call Us
21 103261GS Panel Exhaust Ducting Price: Call Us
22 ~NSP Washer Shakeproof 1/4" & M6 Int Price: Call Us
23 ~NSP Screw Set HHD M6-1.0x12mm Price: Call Us
