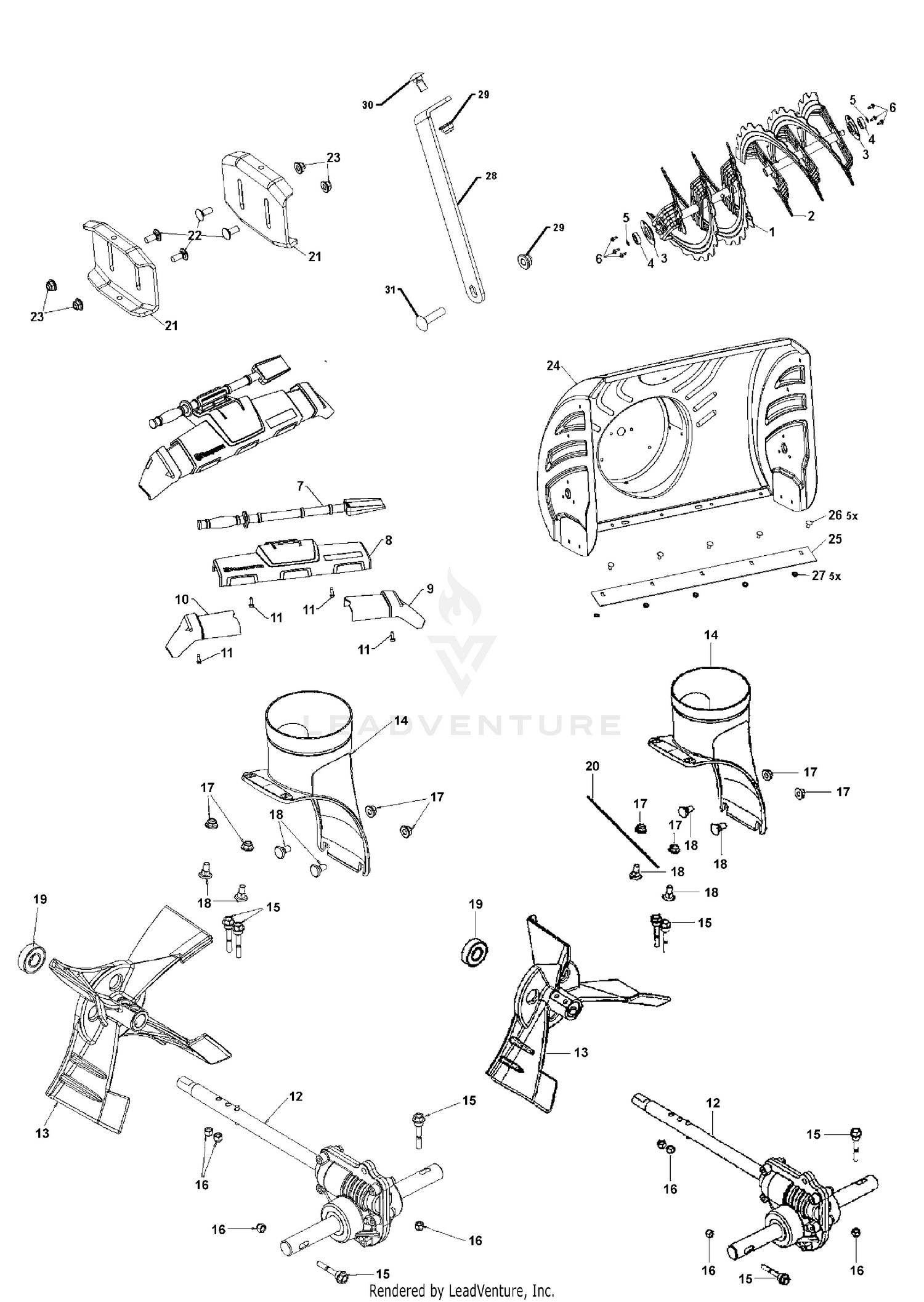

| Ref | Part Number | Description |
|---|
| 1 |
581970503 |
AUGER.RIB.30.RH.LS.GREY Price: $149.99 |
| 2 |
581970603 |
AUGER.RIB.30.LH.LS.GREY Price: $149.99 |
| 3 |
580855501 |
SUPPORT.BEARING.SINGLE.STAGE.B Price: $4.99 |
| 4 |
532110485 |
BEARING Price: $11.99 |
| 5 |
812000028 |
RETAINING RING LT Price: $1.99 |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $14.99 |
| 8 |
586414802 |
TRIM AUGER FRONT TRIM ASSEMBLY Price: $79.99 |
| 9 |
586330302 |
TRIM AUGER.HOUSING.WING.RH MS Price: $24.99 |
| 10 |
586330402 |
TRIM AUGER.HOUSING.WING.LH MS Price: $24.99 |
| 11 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 12 |
546035301 |
CAST GEARBOX KIT This part replaces 582867701. Price: $329.99 |
| 14 |
593042802 |
CHUTE BASE CAST ALUM HUSQ SIL Price: $39.99 |
| 15 |
588077502 |
BOLT SHEAR HX HD 1/4-20 CLEAR Price: $1.00 |
| 16 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 595086601. Price: $1.99 |
| 17 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 18 |
585691201 |
BOLT CARR WAFER BLK 5_16-18 X Price: $3.99 |
| 19 |
532198791 |
BEARING Price: $9.99 |
| 22 |
585691701 |
BOLT CARR BLK 5_16-18 X .750 Price: $8.99 |
| 23 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 24 |
588610240 |
HOUSING ASSY KIT LS.NF.668 (30 Price: $449.99 |
| 25 |
585048502 |
PLATE.SHAVE.30.LS.SNOW.BLACK Price: $27.99 |
| 26 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO Price: $2.99 |
| 28 |
585109004 |
SUPPORT.GEARBOX.LS.498 Price: $6.99 |
| 29 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $5.99 |
| 30 |
585832001 |
BOLT CAR BLK 5/16-18 X 5/8 Price: $3.99 |
| 31 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
