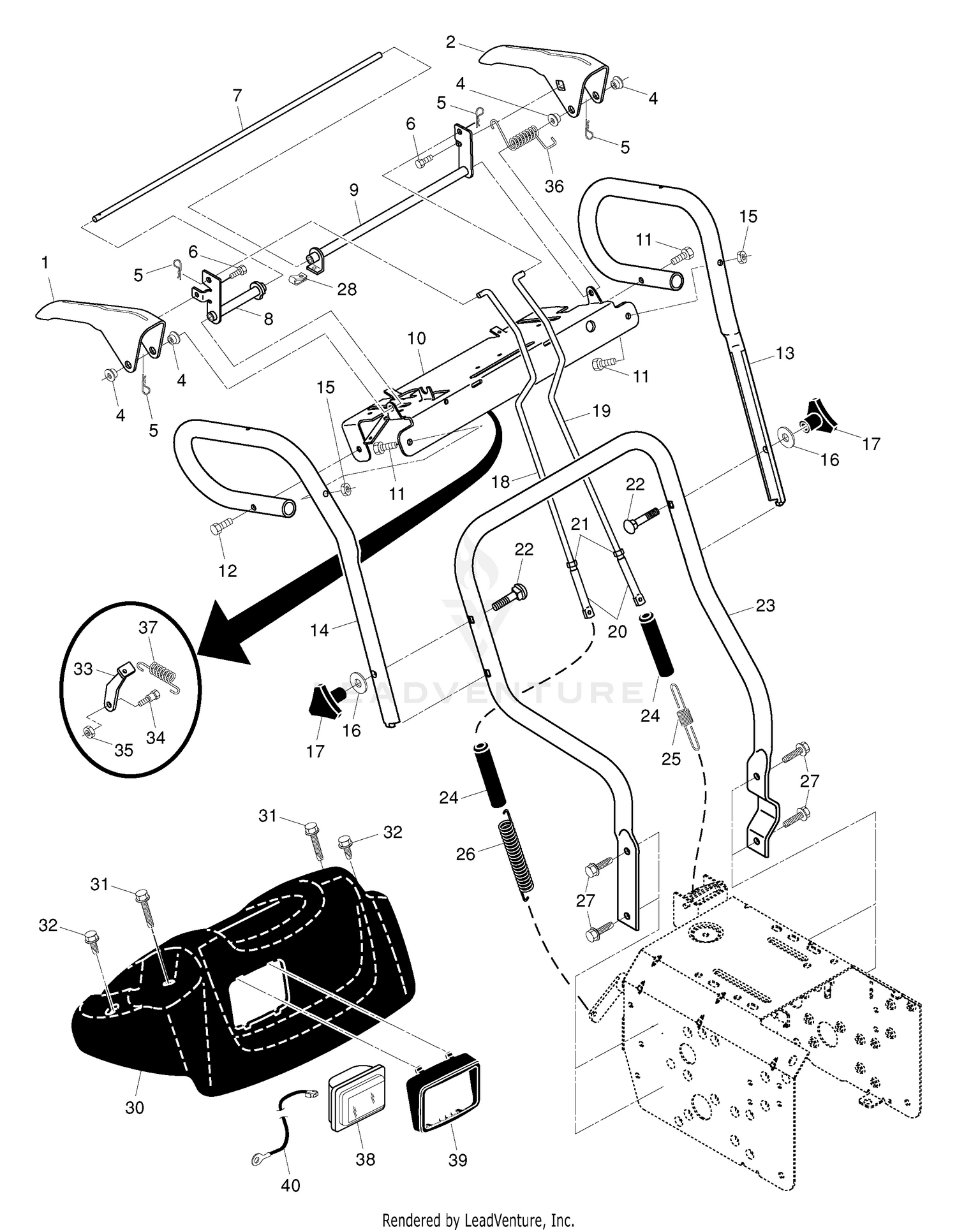

| Ref | Part Number | Description |
|---|
| 1 |
532411423 |
KIT.LEVER.CONTROL.RH.AUGER This part replaces 532407649. Price: $22.99 |
| 1 |
92-5536-03 |
TUBE-CONTROL, PUMP ASM This part replaces 92-5536. Price: $203.02 |
| 2 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 2 |
532405783 |
LEVER-TRACTION DRIVE CONTROL This part replaces 532407648. Price: $11.99 |
| 3 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 4 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 4 |
532178888 |
BUSHING, FLANGE Price: $3.99 |
| 5 |
27-3680 |
SPACER-MOUNTING Price: $6.65 |
| 5 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 6 |
817060408 |
SCREW Price: $4.99 |
| 6 |
99-5677 |
TRANSMISSION ASM This part replaces 92-5513. Price: $4,071.30 |
| 7 |
237-42 |
O-RING Price: $2.78 |
| 7 |
532178652 |
ROD.INTERLOCK Price: $9.99 |
| 8 |
353-979 |
FITTING-STR Price: $12.62 |
| 8 |
532184003 |
TUBE ASSM, INTERLOCK Price: $13.99 |
| 9 |
532178651 |
TUBE.WELDMENT.INTERLOCK.LH Price: $20.99 |
| 9 |
66-3110 |
FITTING-HYD, 90 DEG Price: $61.37 |
| 10 |
27-4370 |
HUB-PUMP Price: $70.04 |
| 10 |
532178645 |
PANEL, CONTROL This part replaces 532184106. Price: $22.99 |
| 11 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 11 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 12 |
3210-5 |
SCREW-HH Price: $0.54 |
| 12 |
874780528 |
SCREW Price: $4.99 |
| 13 |
3241-6 |
SCREW-SQH Price: $4.80 |
| 13 |
532436114 |
TUBE.HANDLE.LOOP.LH.BLACK This part replaces 532184107. Price: $54.99 |
| 14 |
32152-5 |
NUT-HEX Price: $0.54 |
| 14 |
532407857 |
TUBE.HANDLE.LOOP.RH.BLACK This part replaces 532184108. Price: $39.99 |
| 15 |
125-9249 |
SPACER-COUPLER, RUBBER This part replaces 27-6600. Price: $2.15 |
| 15 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 16 |
115-4523 |
COUPLING-RUBBER This part replaces 44-2230. Price: $52.81 |
| 16 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 17 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 17 |
63-6610-03 |
DRIVE SHAFT ASM This part replaces 63-6610. Price: $79.41 |
| 18 |
532184594 |
ROD.AUGER.CONTROL Price: $54.99 |
| 18 |
62-7400 |
DECAL Price: $24.54 |
| 19 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 19 |
532193081 |
ROD.CABLE.TRACTION.LONG Price: $11.99 |
| 20 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 20 |
532180428 |
ROD, END CONTROL Price: $8.99 |
| 21 |
3256-71 |
WASHER-FLAT Price: $0.81 |
| 21 |
596436301 |
Nuts This part replaces 873350500. Price: $2.99 |
| 22 |
27-6590 |
SPACER-COUPLING, RUBBER Price: $13.38 |
| 22 |
872120618 |
BOLT 3/8-16 X 2-1/4 Price: $5.99 |
| 23 |
532184087 |
TUBE.LOWER.HANDLE.24.BLACK Price: $59.99 |
| 23 |
66-8490 |
HOSE-HYD Price: $140.41 |
| 24 |
3210-8 |
SCREW-HH Price: $1.02 |
| 24 |
532180447 |
SLEEVE, SPRING Price: $5.99 |
| 25 |
237-22 |
O-RING Price: $2.43 |
| 25 |
532180926 |
SPRING, TRACTION DRIVE Price: $5.99 |
| 26 |
532178669 |
SPRING, AUGER CONTROL Price: $7.99 |
| 26 |
82-8530 |
FITTING-STR,ORIF Price: $36.90 |
| 27 |
23-2300 |
FILTER-OIL, TRANSMISSION Price: $11.03 |
| 27 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 28 |
323-39 |
SCREW-HH Price: $1.60 |
| 28 |
532180494 |
PANEL CLIP Price: $2.64 |
| 29 |
27-9620 |
SCREW-HH Price: $16.90 |
| 30 |
5-0652 |
SPACER Price: $5.35 |
| 30 |
532182906 |
PANEL.CONSOLE.SNOW Price: $39.99 |
| 31 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 31 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 32 |
594975601 |
Screws This part replaces 532184471. Price: $1.99 |
| 32 |
92-5085 |
UNION-FILTER Price: $86.00 |
| 33 |
532184111 |
ARM.LATCH.INTERLOCK.YELLOW Price: $3.99 |
| 33 |
92-5087 |
SEAL-ADAPTOR, FILTER Price: $25.51 |
| 34 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 34 |
532401369 |
BOLT SHOULDER Price: $2.99 |
| 35 |
873850400 |
This part replaces 532068038. Price: $2.51 |
| 35 |
92-5082 |
HOSE-HYD Price: $25.51 |
| 36 |
532443215 |
SPRING.TORSION.LEVER This part replaces 532178831. Price: $3.99 |
| 36 |
86-7220 |
GEAR-PINION Price: $81.33 |
| 37 |
32120-72 |
RING-SNAP This part replaces 936125. Price: $2.09 |
| 37 |
532178658 |
SPRING, INTERLOCK Price: $2.99 |
| 38 |
27-3690 |
GASKET-TRANSMISSION Price: $8.27 |
| 38 |
532183784 |
BULB.HEADLIGHT.FLOOD.1156-12V Price: $27.99 |
| 39 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 39 |
532178668 |
BEZEL.HEADLIGHT.BLACK Price: $5.99 |
| 40 |
2412-4 |
CLAMP-R Price: $4.22 |
| 41 |
63-7170 |
ANCHOR-TRANSMISSION Price: $37.61 |
| 42 |
3218-3 |
NUT-JAM Price: $0.25 |
| 43 |
67-1900 |
SCREW-HH Price: $3.46 |
| 44 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 45 |
92-5076 |
ADAPTER-FILTER Price: $266.19 |
| 46 |
237-79 |
O-RING Price: $5.46 |
| 47 |
92-5086 |
FITTING-ELBOW, 90 DEG Price: $53.77 |
| 48 |
2412-119 |
CLAMP-HOSE, WORM DRIVE Price: $1.83 |
| 49 |
92-5083 |
HOSE-HYD Price: $25.27 |
| 50 |
3220-7 |
NUT-JAM Price: $4.09 |
| 51 |
237-78 |
O-RING Price: $3.85 |
| 52 |
92-5512 |
FITTING-STR Price: $21.46 |
| 55 |
353-988 |
PLUG-HEX Price: $10.61 |
