Home / OPE / 31-Snow Blowers / 2007 Models / 31AH9P77766 Polar Blast 13HP 45" Self-Propelled (2007) 31AH9P77766 1345 Polar Blast (2007) / Drive System

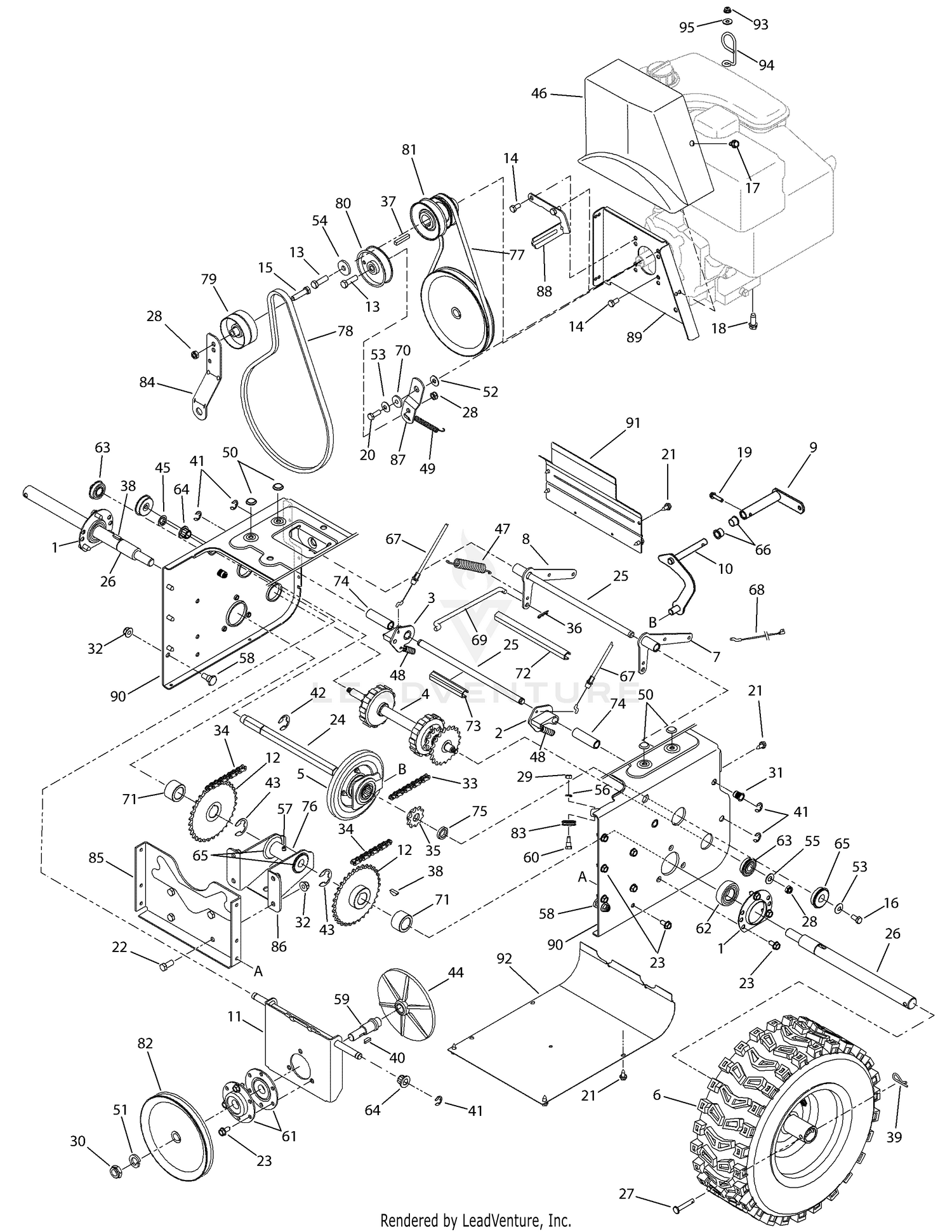

Drive System

Drive System

Parts (94)

RefPart NumberDescription
1 05244B Housing, Bearing Not Available Price:
2 918-0279A LEFT DRIVE DOGG ASSEMBLY Not Available This part replaces 618-0279. Price:
3 918-0280A Dogg, Steering Drive, RH Not Available This part replaces 618-0280. Price:
4 918-0282E Shaft Assembly, Steering This part replaces 618-0282E. Price: $491.62
5 918-07239 Wheel Ass’y Bearing 6.0" OD This part replaces 618-04178. Price: $145.52
6 634-0225A Wheel Ass’y. - LH Price: $223.43
7 684-0118B-0637 AUGER ACTUATOR BRACKET (POWDER BLACK) Not Available This part replaces 684-0118B. Price:
8 684-0119B-0637 ACTUATOR BRACKET (POWDER BLACK) Not Available This part replaces 684-0119B. Price:
9 684-0161-0637 Arm, Shift This part replaces 684-0161. Price: $62.13
10 984-04103 Rod Assembly, Shift This part replaces 684-04103. Price: $65.55
11 684-04212-0637 BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 684-04212. Price:
12 684-04235 Sprocket, 32T Price: $109.41
13 710-0191 Screw, Hex Cap, 3/8-24 x 1.25 Gr8 Price: $4.02
14 710-0237 Screw, Hex Cap, 5/16-24 x .625 Gr5 Price: $3.93
15 710-0459A Screw, 3/8-24 x 1.50 Price: $6.50
16 710-0538 Screw, Hex Cap Lock, 5/16-18 x .625 Gr5 Price: $4.02
17 710-0607 Screw, Hex Tapp, 5/16-18 x .5 Price: $6.06
18 710-0654A Screw, Hex Sems Tapp, 3/8-16 x 1.0 Price: $3.75
19 710-0788 Screw, Hex, 1/4-20 x 1.00 Price: $6.20
20 710-1245B Screw, Hex Lock, 5/16-24 x .875 Gr8 Price: $7.21
21 710-1652 Screw, Hex Wash. Price: $3.86
22 710-3001 Screw, Hex Cap, 3/8-16 Price: $6.20
23 710-04484 SCREW 5/16-18 x .750 Price: $3.19
24 911-04279 HEX SHAFT DRIVE Not Available This part replaces 711-04279. Price:
25 711-04605 ACTUATOR SHAFT Not Available Price:
26 711-04606A Axle, Wheel, 45" This part replaces 711-04606. Price: $131.31
27 711-04615 Pin, Clevis Price: $4.92
28 712-0116 Nut, Hex Insert Jam Lock Price: $3.95
29 712-0138 Nut, Hex, 1/4-28 GR5 Price: $5.99
30 712-0413 Nut, Hx Insert Jam Lk Price: $5.50
31 712-0717 INSERT NUT 3/8-16 Not Available Price:
32 712-04065 Nut, Hx Flnge Insert Lk Price: $3.68
33 713-0284 Chain, Endless, #41 x 36L Not Available Price:
34 713-0286 Chain, #420 x 40L Price: $58.49
35 913-04015 Sprocket, #41 x 10T This part replaces 713-04015. Price: $10.58
36 714-0104 Pin, Internal Cotter Price: $3.90
37 714-0118 Key, Square, 1/4 x 1.5 Price: $6.06
38 714-0135 Key, Woodruff Price: $4.05
39 714-0149B Pin, Internal Cotter Price: $3.95
40 914-0388 KEY-3/16 x 5/8 This part replaces 714-0388. Price: $6.75
41 916-0104 E-Ring This part replaces 716-0104. Price: $3.37
42 716-0136 Ring, Retaining Price: $7.56
43 716-04048 Ring, Retainer Price: $1.58
44 917-0302 Plate, Drive Not Available This part replaces 717-0302. Price:
45 726-0221 Nut, Speed Price: $5.34
46 931-2531 Cover, Belt This part replaces 731-2531. Price: $45.06
47 932-0121 Spring, Extension This part replaces 732-0121. Price: $13.21
48 932-0209 Spring, Extension This part replaces 732-0209. Price: $7.01
49 932-0303 Spring .38" O.D. x 3.18" Lg. This part replaces 732-0303. Price: $8.93
50 735-04099 Plug Price: $5.15
51 736-0158 Washer, Lock, 5/8 Price: $3.90
52 736-0159 Washer, Flat, .349 x .879 x .063 Price: $3.71
53 736-0242 Washer, Belleville, .34 x .872 x .06 Price: $3.75
54 736-0247 Washer, Flat, .406 x 1.25 x .157 HT Price: $8.82
55 736-0300 Wash, .406 x .875 x .059 Price: $3.93
56 936-0329 Lock Washer This part replaces 736-0329. Price: $3.90
57 937-3000 GREASE FITTING This part replaces 7373000. Price: $4.04
58 738-0143 SHOULDER SCREW .498 DIA x .340 Price: $3.93
59 738-0279 Spindle, Drive Plate Price: $50.80
60 738-0924A Screw, Hex Shldr., 1/4-28 Price: $5.94
61 741-0163A BEARING HOUSING ASSEMBLY Not Available Price:
62 941-04025 Bearing, Self Aligning This part replaces 741-04025. Price: $32.04
63 741-04076 Bearing, Ball Price: $13.01
64 741-04108 Bearing, Hex Flange Price: $5.20
65 941-0563 Ball Bearing, 17 x 40 x 12 This part replaces 741-0563. Price: $33.84
66 741-0748 Bush, Flg, .5 ID x .627 OD Price: $10.38
67 746-0949A Cable, Steering Price: $46.13
68 946-0951A Cable, Auger Idler This part replaces 746-0951. Price: $41.91
69 747-0973 DRIVE CLUTCH ROD Not Available Price:
70 748-0234 Spacer, Shoulder Price: $3.86
71 750-04703 Spcr., 1.0 ID x 1.50 OD Not Available Price:
72 750-04717 SPACER Not Available Price:
73 750-04718 SPACER Not Available Price:
74 750-0903B SPLIT SPACER Not Available Price:
75 950-0997 Spacer, .675 x 1.0 x .23 This part replaces 750-0997. Price: $6.07
76 750-1302B Spcr, .6725 x 1.125 x 2.48 Price: $41.80
77 954-0131 V-Belt, 3V x 35.5 This part replaces 754-0131. Price: $26.08
78 954-0222A V Belt,1/2 x 44 This part replaces 754-0222A. Price: $37.46
79 756-0178 Idler, Flat, 2.75 OD Price: $17.64
80 756-0240 FLAT IDLER PULLEY-3.00 Not Available Price:
81 756-0241B Pulley, Dbl, 3.25 OD Not Available Price:
82 756-0344 Pulley, Drive Price: $71.48
83 756-0625 Roller, Cable Price: $8.52
84 784-0385D Bracket, Auger Idler This part replaces 784-0385B. Price: $26.17
85 784-0406A-0637 FRAME SUPPORT BRACKET Not Available This part replaces 784-0406A. Price:
86 784-0407-0637 AXLE SUPPORT BRACKET Not Available This part replaces 784-0407. Price:
87 784-5726 DRIVE IDLER BRACKET Not Available Price:
88 790-00167A-0637 BELT KEEPER BRACKET Not Available This part replaces 790-00167A. Price:
89 790-00254A-0637 BELT COVER BRACKET Not Available This part replaces 790-00254. Price:
90 790-00255A FRAME ASSEMBLY Not Available Price:
91 790-00257 UPPER FRAME COVER Not Available Price:
92 790-00259 LOWER FRAME COVER Not Available Price:
93 712-04064 Nut, Flange Lock, 1/4-20 GrF Price: $3.64
94 732-0705 Guide, Control Cable Price: $10.40
