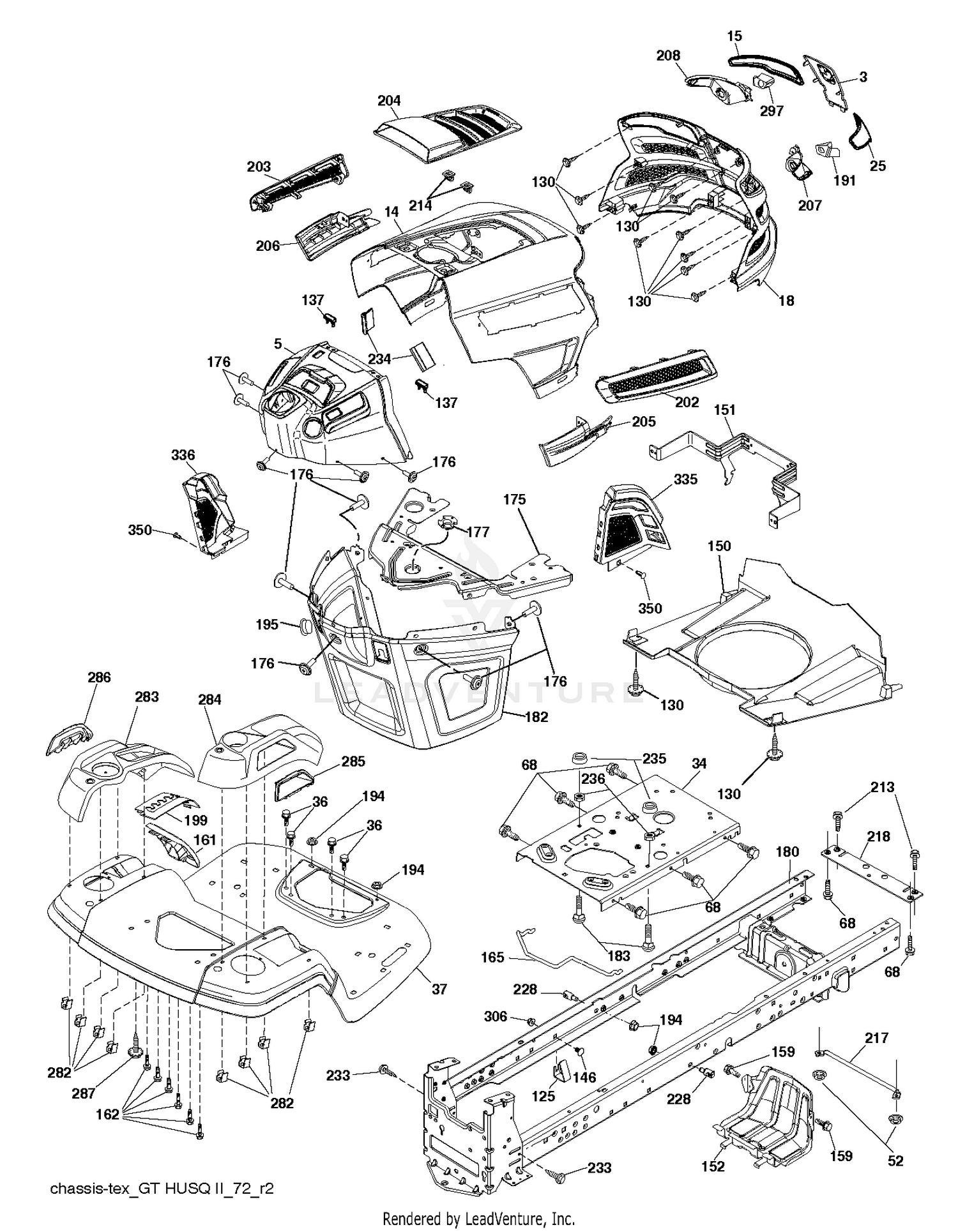

| Ref | Part Number | Description |
|---|
| 1 |
115-4362 |
SCREEN ASM Price: $1,675.38 |
| 2 |
115-4357 |
LATCH-KEEPER Price: $4.16 |
| 3 |
3269-3 |
RIVET-POP Price: $0.25 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
121-3137 |
HOOD ASM Price: $4,135.95 |
| 5 |
117-2382 |
PLUG-PLASTIC Price: $0.69 |
| 5 |
532437472 |
DASH.UPP.GT2.SM.PTO.MCHOKE Price: $99.99 |
| 6 |
114-4192-03 |
SCREEN-HOOD Price: $277.03 |
| 9 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 10 |
120-8020-03 |
BUMPER-REAR Price: $797.60 |
| 12 |
240-14 |
BUMPER-RUBBER Price: $13.84 |
| 13 |
32128-33 |
NUT-HF Price: $0.25 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 15 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 17 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 18 |
325-6 |
SCREW-HH Price: $1.42 |
| 18 |
597247201 |
Grilles This part replaces 532437762. Price: $84.99 |
| 19 |
325-33 |
SCREW-HH Price: $11.49 |
| 20 |
114-8108-03 |
TUBE-RH Price: $145.06 |
| 21 |
114-8109-03 |
TUBE-LH Price: $145.06 |
| 22 |
121-3136-0P |
TUBE ASM R.H. [PRIMED] This part replaces 121-3136-03. Price: $175.86 |
| 23 |
114-8102-0P |
TUBE ASM This part replaces 114-8102-03. Price: $122.71 |
| 24 |
121-3133-0P |
TUBE-HOOD FRAME This part replaces 121-3133-03. Price: $143.88 |
| 25 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 Price: $11.99 |
| 25 |
94-5781 |
SCREW-HHF Price: $4.47 |
| 26 |
104-7201 |
NUT-HF Price: $0.69 |
| 27 |
3290-55 |
RIVET-POP Price: $0.25 |
| 28 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 29 |
105-9876 |
DECAL Price: $45.07 |
| 30 |
66-1210 |
DECAL Price: $27.06 |
| 31 |
106-6754 |
DECAL-DANGER Price: $9.57 |
| 32 |
249-40 |
KEEPER Price: $9.77 |
| 33 |
3269-17 |
RIVET-POP Price: $0.25 |
| 34 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS This part replaces 532447253. Price: $59.99 |
| 35 |
98-1629 |
WASHER Price: $0.89 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
532423694 |
FENDER.TLT.FS.W/CPH/FW/RSF.ORN This part replaces 532441178. Price: $179.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 99 |
119-2004 |
CE LATCH KIT Price: $25.85 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532439781 |
WINDOW.FUEL.LT.HUSQ.TEX.498 Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532196826 |
SUPPORT.TANK.REAR.W/TEX Price: $22.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 180 |
579841501 |
KITS.CHASSIS.WELD.SERVICE This part replaces 532195457. Price: $219.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 199 |
532413485 |
PLATE.DECK.LIFT.HUSQ.LT Price: $9.99 |
| 202 |
532439728 |
VENT.SIDE.RH.GT.HUSQ.II. Price: $14.99 |
| 203 |
532439727 |
VENT.SIDE.LH.GT.HUSQ.II.498 Price: $14.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532444484. Price: $22.99 |
| 205 |
532439730 |
SIDE.TRIM.RH.GT.HUSQ.II Price: $12.99 |
| 206 |
532439729 |
SIDE.TRIM.LH.GT.HUSQ.II.GRAY Price: $14.99 |
| 207 |
587464801 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.RH This part replaces 532439734. Price: $11.99 |
| 208 |
587464501 |
HEADLIGHT.CUP.BEZEL.HUS.GT2.LH This part replaces 532439735. Price: $11.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 233 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532439861 |
CONSOLE.DECK.LIFT.R.SDFL.HUSQ Price: $29.99 |
| 284 |
532439150 |
CONSOLE.SHFT.PDL.CNTRL.HUSQ.LT This part replaces 532439823. Price: $39.99 |
| 285 |
532416315 |
CONSOLE INSERT RH Price: $14.99 |
| 286 |
532416317 |
CONSOLE.INSRT.LH.HUSQ.LT.BLACK Price: $11.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
