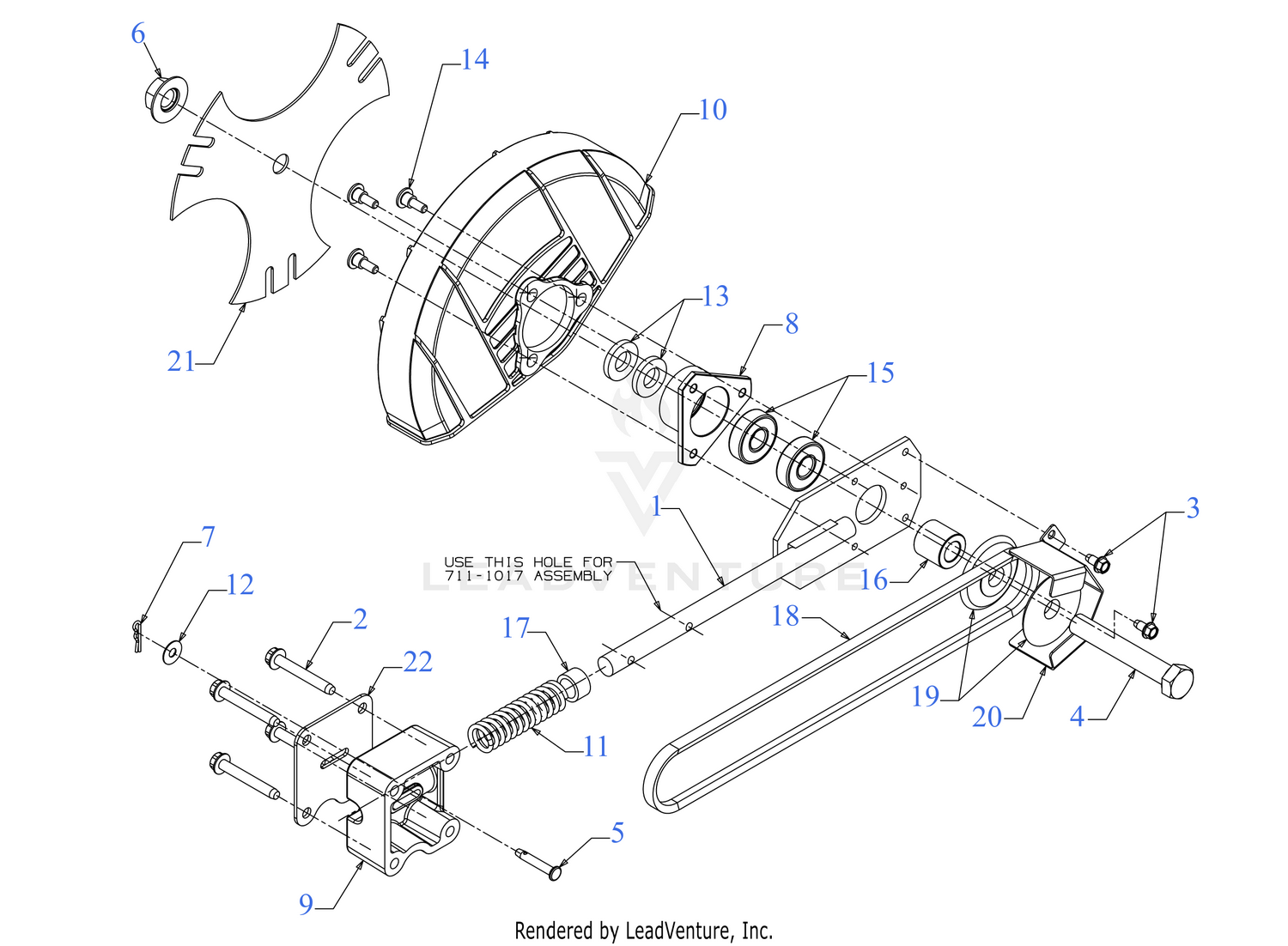

| Ref | Part Number | Description |
|---|
| 1 |
687-02126 |
BLADE PLATE ASSEMBLY Price: $49.22 |
| 2 |
710-04389 |
SCREW Price: $6.01 |
| 3 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 4 |
710-1143A |
SCREW 5/8-18 x 4 GR5 Price: $10.02 |
| 5 |
711-1017 |
CLEVIS PIN Price: $6.57 |
| 6 |
712-0417A |
HEX NUT Price: $6.50 |
| 7 |
714-0104 |
COTTER PIN .072 DIA Price: $3.90 |
| 8 |
718-04012 |
BEARING CUP Price: $19.55 |
| 9 |
931-04207 |
BEARING BLOCK Price: $24.30 |
| 10 |
731P05064 |
EDGER BLADE GUARD (W/LABEL) Price: $23.87 |
| 11 |
932-04169 |
COMPRESSION SPRING Price: $9.41 |
| 12 |
736-0342 |
FLAT WASHER .283 ID x .749 x .030 Price: $6.24 |
| 13 |
736-04088 |
FLAT WASHER .635 x 1.24 x .181 Price: $3.90 |
| 14 |
738-0706D |
SHOULDER SCREW .375X.280:1/4-14 Price: $3.89 |
| 15 |
941-0524A |
BALL BEARING Price: $20.36 |
| 16 |
950-04105 |
SPACER Price: $13.42 |
| 17 |
750-0547 |
SPACER Price: $4.83 |
| 18 |
954-04032B |
BELT 3L x 35.80 Price: $23.31 |
| 19 |
956-0449 |
SHEAVE Price: $13.09 |
| 20 |
781-0427-0637 |
BELT GUARD (POWDER BLACK) Price: $19.06 |
| 21 |
781-0748 |
BLADE TRI-CUT (POWDER BLACK) Price: $24.87 |
