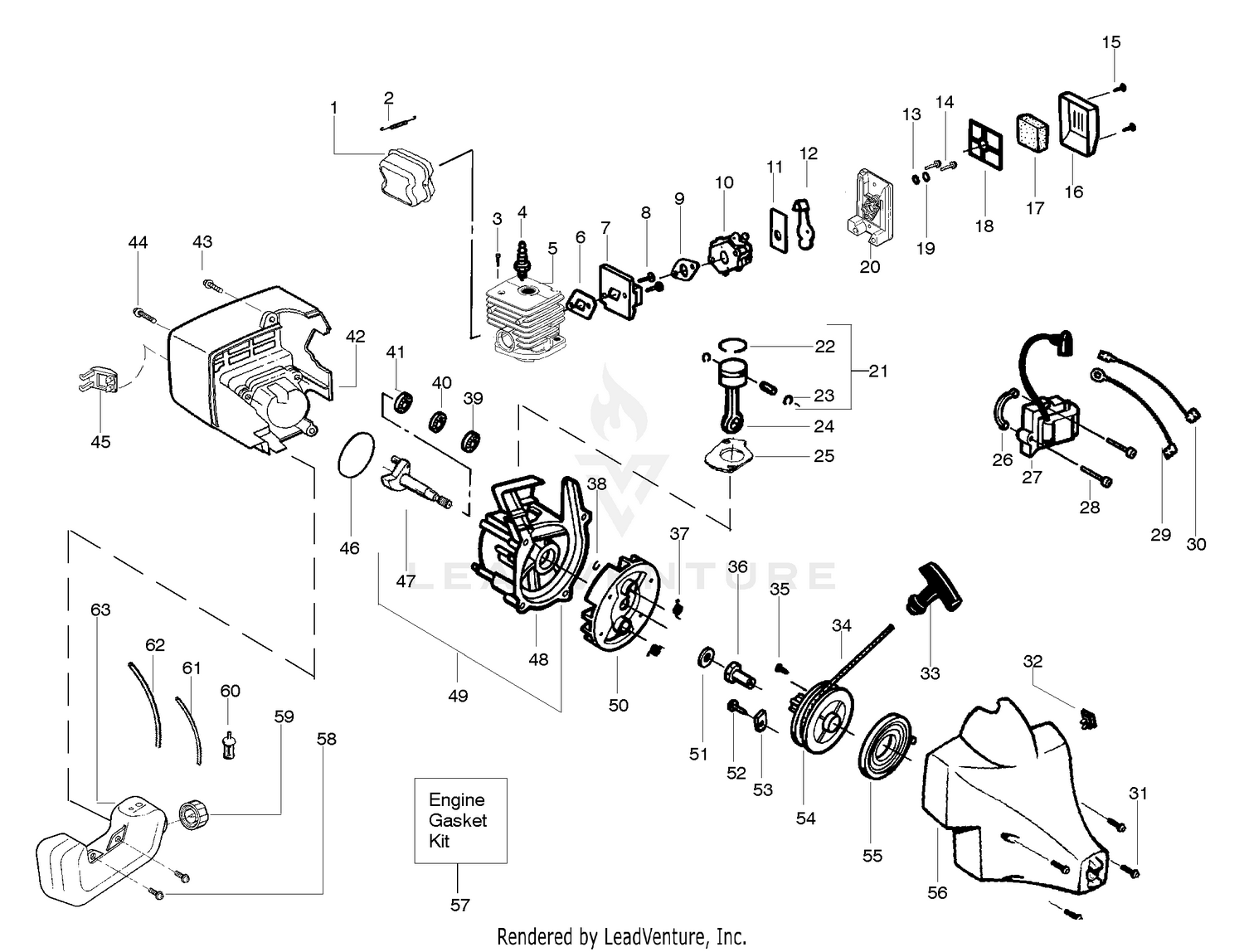

| Ref | Part Number | Description |
|---|
| 1 |
29-2530 |
DISCONTINUED Price: Call Us |
| 2 |
29-2710 |
DISCONTINUED Price: Call Us |
| 2 |
530042088 |
Muffler Spring Price: $1.99 |
| 3 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 3 |
530015953 |
Screw-Cylinder Price: $1.99 |
| 4 |
39-8960 |
LIFT ARM WA Price: $649.54 |
| 4 |
952030249 |
Spark Plug (RCJ 6Y) Price: $3.99 |
| 5 |
29-2600 |
DISCONTINUED Price: Call Us |
| 5 |
530012416 |
Cylinder This part replaces 530071359. Price: $17.99 |
| 6 |
29-2660 |
DISCONTINUED Price: Call Us |
| 6 |
530071363 |
Gasket-Cyl/Carb.(kit) Price: $5.99 |
| 7 |
11-9800 |
DISCONTINUED Price: Call Us |
| 7 |
530056404 |
Adaptor-carb. Price: $3.99 |
| 8 |
36-4910 |
DISCONTINUED Price: Call Us |
| 8 |
530016014 |
Screw Price: $1.99 |
| 9 |
29-2680 |
DISCONTINUED Price: Call Us |
| 9 |
530071363 |
Gasket-Carb.(kit) Price: $5.99 |
| 10 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 10 |
530069754 |
Kit - Carburetor Ass'y (Wa-226) Price: $19.24 |
| 10 |
530069971 |
Kit - Carburetor Ass'y (C1U-W7) Price: $17.28 |
| 10 |
530071635 |
Kit - Carburetor Ass'y (WT-631) Price: $54.99 |
| 11 |
29-2700 |
DISCONTINUED Price: Call Us |
| 11 |
530038747 |
Plate-Choke Mounting Price: $1.99 |
| 12 |
29-2730 |
DISCONTINUED Price: Call Us |
| 12 |
530035499 |
Lever-Choke Price: $1.99 |
| 13 |
29-2670 |
DISCONTINUED Price: Call Us |
| 13 |
530015254 |
Washer Price: $1.99 |
| 14 |
29-2780 |
DISCONTINUED Price: Call Us |
| 14 |
530016353 |
Screw Price: $1.99 |
| 15 |
323-14 |
SCREW-HH Price: $1.34 |
| 15 |
530015892 |
Screw Price: $1.99 |
| 16 |
29-8950 |
DISCONTINUED Price: Call Us |
| 16 |
530054414 |
Cover-Air Box Price: $3.99 |
| 17 |
29-8980 |
DISCONTINUED Price: Call Us |
| 17 |
530036575 |
Foam-Air Filter Price: $1.99 |
| 18 |
29-2570 |
DISCONTINUED Price: Call Us |
| 18 |
530036569 |
Plate-Air Filter Support Price: $1.99 |
| 19 |
29-2520 |
OILITE BSHG *PP Price: $15.44 |
| 19 |
530015852 |
Spacer-Choke Price: $1.99 |
| 20 |
32128-29 |
NUT-LOCK, FLANGE Price: $1.63 |
| 20 |
530052431 |
Box-Air Price: $1.99 |
| 21 |
29-3260 |
DISCONTINUED Price: Call Us |
| 22 |
29-3240 |
DISCONTINUE Price: Call Us |
| 22 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 23 |
2112-10 |
MUFFLER CLAMP Price: Call Us |
| 23 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 24 |
38-4280 |
DISCONTINUED Price: Call Us |
| 24 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 25 |
39-0600 |
DISCONTINUED Price: Call Us |
| 25 |
530071363 |
Gasket-Cylinder(kit) Price: $5.99 |
| 26 |
3217-6 |
NUT-HEX Price: $1.19 |
| 26 |
530036145 |
Spacer-Module Price: $1.99 |
| 27 |
3217-7 |
NUT-HEX Price: $0.28 |
| 27 |
545081826 |
Kit - Ignition Module This part replaces 530039211. Price: $32.99 |
| 28 |
32128-18 |
DISCONTINUED Price: Call Us |
| 28 |
530015954 |
Screw Price: $1.99 |
| 29 |
29-2470 |
DISCONTINUED Price: Call Us |
| 29 |
530054448 |
Assy-Ground Wire Price: $1.99 |
| 30 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 30 |
530054449 |
Assy-Leadwire Price: $1.99 |
| 31 |
29-2720 |
DISCONTINUED Price: Call Us |
| 31 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 32 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 32 |
530069572 |
Kit-Switch Price: $4.99 |
| 33 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 33 |
530027569 |
Handle-Starter Price: $1.99 |
| 34 |
323-4 |
SCREW-HH Price: $1.02 |
| 34 |
530071325 |
Kit - Rope Price: $3.99 |
| 35 |
530016326 |
Screw Price: $1.99 |
| 36 |
530027953 |
Coupling-Drive Price: $1.99 |
| 37 |
530023817 |
Spring-Starter Dog Price: $1.99 |
| 38 |
530015941 |
Retain. Ring-C'shaft Price: $1.99 |
| 39 |
530055728 |
Bearing-Outer Price: $6.99 |
| 40 |
530071615 |
Seal-C'case Price: $4.99 |
| 41 |
530032125 |
Bearing-Inner Price: $11.99 |
| 42 |
530056547 |
Shroud Price: $8.99 |
| 43 |
530015880 |
Screw Price: $1.99 |
| 44 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 45 |
530054536 |
Guard-Muffler Price: $1.99 |
| 46 |
530071363 |
O-Ring-C'case(kit) Price: $5.99 |
| 47 |
530012413 |
Assy-Crankshaft Price: $14.99 |
| 50 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 51 |
530015828 |
Washer-Flat Price: $1.99 |
| 52 |
530015775 |
Screw Price: $1.99 |
| 53 |
530053985 |
Retainer-Can Price: $0.99 |
| 55 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 56 |
530071415 |
Assy-Fan Housing Price: $14.99 |
| 58 |
530016379 |
Retainer-Tank Price: $2.99 |
| 59 |
530014347 |
Assy-Fuel Cap Price: $4.99 |
| 60 |
530095646 |
Assy-Fuel Pickup Price: $2.99 |
| 61 |
530069216 |
Kit-Fuel Line Price: $3.99 |
| 62 |
530069247 |
Kit-Fuel Line Price: $3.99 |
