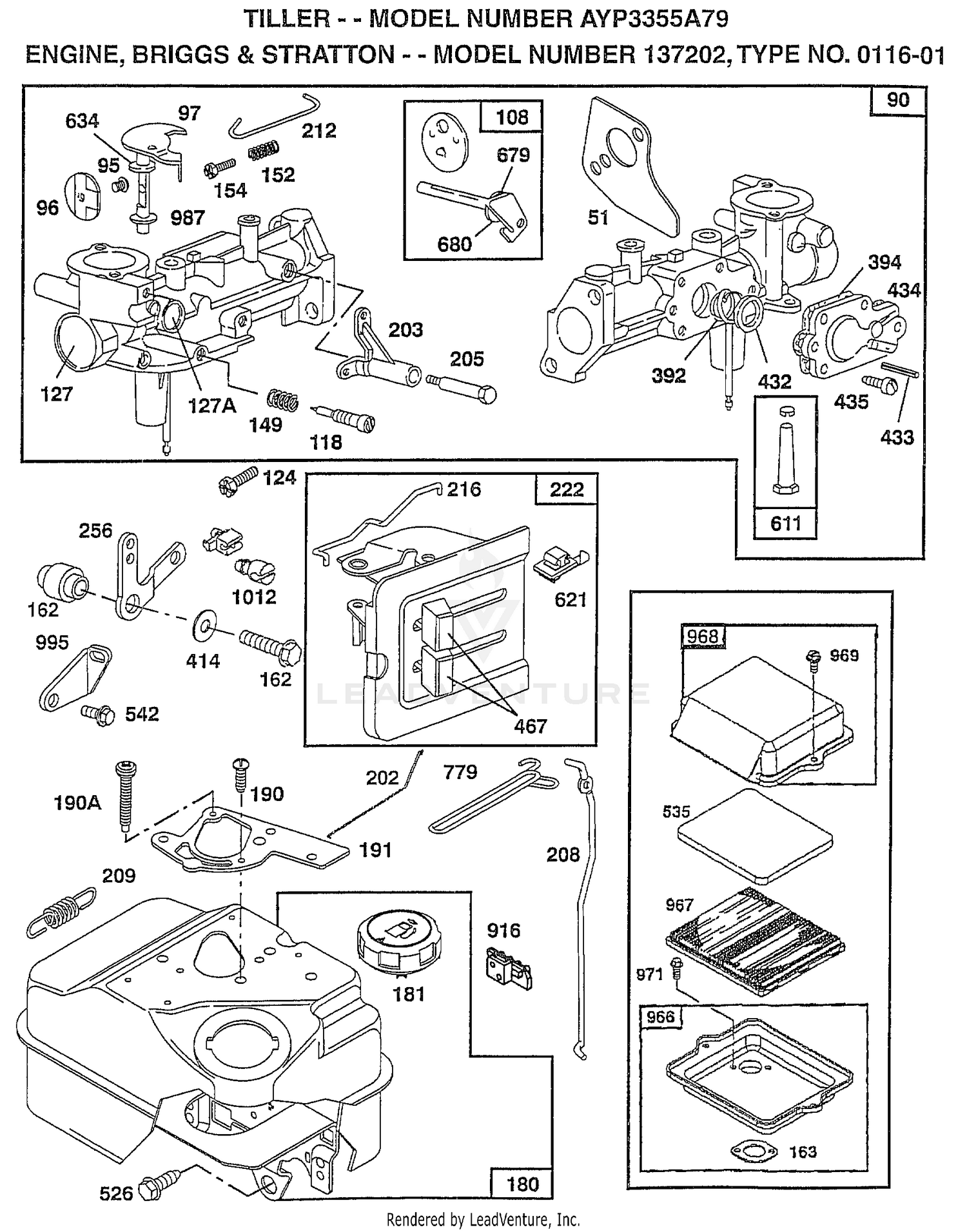

| Ref | Part Number | Description |
|---|
| 1 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 1 |
497144 |
CYLINDER ASSEMBLY Price: Call Us |
| 2 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 2 |
399268 |
BUSHING, CYLINDER Price: Call Us |
| 3 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 3 |
299819 |
SEAL, OIL Price: Call Us |
| 4 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 5 |
214040 |
HEAD, CYLINDER Price: Call Us |
| 5 |
82-9060 |
DISCONTINUED Price: Call Us |
| 6 |
107-1188 |
SEAT SUSPENSION This part replaces 71-0480. Price: $951.87 |
| 7 |
272157 |
GASKET, CYLINDER HEAD Price: Call Us |
| 7 |
323-6 |
SCREW-HH Price: $0.66 |
| 8 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 8 |
495774 |
BREATHER ASSEMBLY Price: Call Us |
| 9 |
27549 |
GASKET, VALVE COVER Price: Call Us |
| 9 |
83-6660-03 |
SEAT BRACKET SUPPORT ASM Price: $234.45 |
| 10 |
48-7960 |
NUT This part replaces 33015-00. Price: $1.40 |
| 10 |
94621 |
SCREW, STEMS Price: Call Us |
| 11 |
33115-025 |
SCREW-HH Price: $0.61 |
| 11 |
66578 |
GROMMET, BREATHER TUBE Price: Call Us |
| 12 |
270080 |
GASKET CRANKCASE STANDARD .015" Price: Call Us |
| 12 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12A |
270125 |
GASKET, CRANKCASE .005" THICK Price: Call Us |
| 12B |
270126 |
GASKET, CRANKCASE .009" THICK Price: Call Us |
| 13 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
94221 |
SCREW, CYLINDER HEAD 2-3/32" Price: Call Us |
| 14 |
33004-00 |
NUT-HF Price: $0.34 |
| 14 |
94679 |
SCREW, CYLINDER HEAD 2-15/32" Price: Call Us |
| 15 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 15 |
94916 |
PLUG, PIPE, HEX SOCKET Price: Call Us |
| 16 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 16 |
492088 |
CRANKSHAFT Price: Call Us |
| 16A |
94388 |
TIMING GEAR KEY Price: Call Us |
| 17 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 18 |
494044 |
COVER ASSEMBLY, CRANKCASE Price: Call Us |
| 19 |
495660 |
BUSHING, CRANKCASE COVER Price: Call Us |
| 20 |
294606 |
SEAL, OIL Price: Call Us |
| 21 |
66768 |
PLUG, OIL FILLER Price: Call Us |
| 22 |
94980 |
SCREW, COVER MOUNTING Price: Call Us |
| 23 |
297229 |
FLYWHEEL, MAGNETO Price: Call Us |
| 24 |
222698 |
KEY, FLYWHEEL Price: Call Us |
| 25 |
298904 |
PISTON ASSEMBLY, STANDARD Price: Call Us |
| 25A |
298905 |
PISTON ASSEMBLY .010" OVERSIZE Price: Call Us |
| 25B |
298906 |
PISTON ASSEMBLY .020" OVERSIZE Price: Call Us |
| 25C |
298907 |
PISTON ASSEMBLY .030" OVERSIZE Price: Call Us |
| 26 |
298982 |
RING SET, PISTON, STANDARD Price: Call Us |
| 26A |
299742 |
RING SET, PISTON, CHROME, STANDARD Price: Call Us |
| 26B |
298983 |
RING SET, PISTON .010" OVERSIZE Price: Call Us |
| 26C |
298984 |
RING SET, PISTON .020" OVERSIZE Price: Call Us |
| 26D |
298985 |
RING SET, PISTON .030" OVERSIZE Price: Call Us |
| 27 |
26026 |
LOCK, PISTON PIN Price: Call Us |
| 28 |
298909 |
PIN ASSY, PISTON, STD Price: Call Us |
| 28A |
298908 |
PIN ASSEMBLY, PISTON .005" OVERSIZE Price: Call Us |
| 29 |
299430 |
ROD ASSEMBLY, CONNECTING Price: Call Us |
| 29A |
390459 |
ROD ASSEMBLY, CONNECTING Price: Call Us |
| 30 |
221890 |
DIPPER, CONNECTING ROD Price: Call Us |
| 32 |
94745 |
SCREW, CONNECTING ROD Price: Call Us |
| 33 |
211119 |
VALVE, EXHAUST Price: Call Us |
| 34 |
261044 |
VALVE, INTAKE Price: Call Us |
| 35 |
260552 |
SPRING, INTAKE VALVE Price: Call Us |
| 36 |
26478 |
SPRING, EXHAUST VALVE Price: Call Us |
| 37 |
222443 |
GUARD, FLYWHEEL Price: Call Us |
| 40 |
93312 |
RETAINER, VALVE SPRING Price: Call Us |
| 45 |
260642 |
TAPPET, VALVE Price: Call Us |
| 46 |
212733 |
GEAR, CAM Price: Call Us |
| 51 |
273113 |
GASKET, CARBURETOR MOUNTING Price: Call Us |
| 55 |
497442 |
HOUSING, REWIND STARTER Price: Call Us |
| 56 |
498144 |
PULLEY, REWIND STARTER Price: Call Us |
| 57 |
263074 |
SPRING, REWIND STARTER Price: Call Us |
| 58 |
280399 |
ROPE, REWIND STARTER (CUT TO 88-5/8) Price: Call Us |
| 59 |
396892 |
INSERT, HANDLE Price: Call Us |
| 60 |
393152 |
HANDLE, REWIND STARTER Price: Call Us |
| 65 |
94686 |
SCREW, HOUSING MOUNTING Price: Call Us |
| 69 |
280973 |
WASHER Price: Call Us |
| 69A |
224322 |
WASHER Price: Call Us |
| 73 |
225176 |
SCREEN, ROTATING Price: Call Us |
| 81 |
222263 |
LOCK, SCREW Price: Call Us |
| 90 |
495426 |
CARBURETOR ASSEMBLY Price: Call Us |
| 95 |
93499 |
SCREW Price: Call Us |
| 96 |
223793 |
THROTTLE, CARBURETOR Price: Call Us |
| 97 |
497600 |
SHAFT & LEVER, THROTTLE Price: Call Us |
| 108 |
497230 |
VALVE & SHAFT GROUP, CHOKE Price: Call Us |
| 118 |
231533 |
VALVE, NEEDLE Price: Call Us |
| 121 |
495606 |
CARBURETOR OVERHAUL KIT Price: Call Us |
| 124 |
94913 |
SCREW, TORX HEX Price: Call Us |
| 127 |
220352 |
PLUG, WELCH Price: Call Us |
| 127A |
223789 |
PLUG, WELCH Price: Call Us |
| 149 |
26336 |
SPRING, NEEDLE VALVE Price: Call Us |
| 152 |
260575 |
SPRING, THROTTLE ADJUSTMENT Price: Call Us |
| 154 |
93527 |
SCREW, MACHINE, ROUND HEAD Price: Call Us |
| 162 |
490589 |
SCREW AND COLLAR Price: Call Us |
| 163 |
271935 |
GASKET, AIR CLEANER MOUNTING Price: Call Us |
| 180 |
495405 |
TANK ASSEMBLY, FUEL Price: Call Us |
| 181 |
494559 |
CAP, FUEL TANK Price: Call Us |
| 190 |
94924 |
SCREW, TORX Price: Call Us |
| 190A |
94919 |
SCREW, TORX Price: Call Us |
| 191 |
272489 |
GASKET, FUEL TANK TO CARBURETOR Price: Call Us |
| 200 |
223886 |
GUIDE, AIR Price: Call Us |
| 202 |
262280 |
LINK, GOVERNOR Price: Call Us |
| 203 |
280720 |
BELL CRANK Price: Call Us |
| 205 |
231520 |
SCREW, SHOULDER Price: Call Us |
| 208 |
262279 |
ROD, SPEED CONTROL Price: Call Us |
| 209 |
262283 |
SPRING, GOVERNOR Price: Call Us |
| 212 |
262270 |
LINK, THROTTLE Price: Call Us |
| 216 |
262359 |
LINK, CHOKE Price: Call Us |
| 219 |
494845 |
GEAR, GOVERNOR Price: Call Us |
| 220 |
221551 |
WASHER THRUST Price: Call Us |
| 222 |
490649 |
PANEL, CONTROL Price: Call Us |
| 227 |
490374 |
LEVER ASSEMBLY, GOVERNOR Price: Call Us |
| 230 |
94927 |
WASHER, GOVERNOR LEVER Price: Call Us |
| 256 |
223813 |
CRANK, BELL Price: Call Us |
| 300 |
393615 |
MUFFLER, EXHAUST Price: Call Us |
| 304 |
495759 |
HOUSING, BLOWER Price: Call Us |
| 305 |
94619 |
SCREW, SEMS, BLOWER, HOUSING MOUNTING Price: Call Us |
| 306 |
224820 |
SHIELD, CYLINDER Price: Call Us |
| 307 |
94680 |
SCREW, CYLINDER SHIELD Price: Call Us |
| 308 |
224738 |
COVER, CYLINDER HEAD Price: Call Us |
| 332 |
94877 |
NUT, FLYWHEEL Price: Call Us |
| 333 |
397358 |
ARMATURE GROUP Price: Call Us |
| 334 |
93414 |
SCREW, ARMATURE MOUNTING Price: Call Us |
| 337 |
802592 |
PLUG, SPARK Price: Call Us |
| 346 |
94896 |
SCREW, SEMS Price: Call Us |
| 356 |
398808 |
WIRE, GROUND Price: Call Us |
| 358 |
495603 |
GASKET SET Price: Call Us |
| 363 |
19069 |
PULLEY, FLYWHEEL Price: Call Us |
| 373 |
94908 |
NUT, HEX Price: Call Us |
| 383 |
89838 |
WRENCH SPARK PLUG Price: Call Us |
| 392 |
262328 |
SPRING, FUEL PUMP DIAPHRAGM Price: Call Us |
| 394 |
272538 |
DIAPHRAGM Price: Call Us |
| 414 |
220982 |
WASHER Price: Call Us |
| 432 |
221377 |
CAP, SPRING Price: Call Us |
| 433 |
93265 |
PIN, DIAPHRAGM COVER Price: Call Us |
| 434 |
213963 |
COVER, DIAPHRAGM Price: Call Us |
| 435 |
93141 |
SCREW, DIAPHRAGM Price: Call Us |
| 455 |
225121 |
CUP, STARTER Price: Call Us |
| 456 |
281503 |
RETAINER, STARTER Price: Call Us |
| 459 |
281505 |
PAWL, RATCHET Price: Call Us |
| 461 |
262626 |
PIN, STARTER Price: Call Us |
| 467 |
280715 |
KNOB, CONTROL Price: Call Us |
| 515 |
262625 |
SPRING, TORSION Price: Call Us |
| 526 |
94914 |
SCREW, SEMS, TANK BRACKET MOUNT Price: Call Us |
| 527 |
223786 |
CLAMP BREATHER TUBE Price: Call Us |
| 528 |
231550 |
TUBE, BREATHER Price: Call Us |
| 529 |
67838 |
GROMMET, BREATHER TUBE Price: Call Us |
| 535 |
491435 |
FILTER, AIR Price: Call Us |
| 536 |
494279 |
AIR CLEANER KIT Price: Call Us |
| 542 |
94897 |
SCREW Price: Call Us |
| 552 |
231079 |
BUSHING, GOVERNOR CRANK Price: Call Us |
| 562 |
94907 |
BOLT, GOVENOR LEVEL Price: Call Us |
| 592 |
231978 |
NUT, HEX Price: Call Us |
| 608 |
495766 |
STARTER ASSEMBLY, REWIND Price: Call Us |
| 611 |
391813 |
FUEL PIPE AND CLIP ASSEMBLY Price: Call Us |
| 613 |
93935 |
SCREW, HEX HEAD Price: Call Us |
| 614 |
93306 |
COTTER, HAIR PIN Price: Call Us |
| 615 |
93307 |
RETAINER, E-RING Price: Call Us |
| 616 |
495243 |
CRANK, GOVERNOR Price: Call Us |
| 621 |
396847 |
SWITCH, STOP Price: Call Us |
| 623 |
94943 |
P/N CONFLICT - CHECK WITH SUPPLIER Price: Call Us |
| 634 |
271853 |
WASHER, THROTTLE SHAFT, FOAM Price: Call Us |
| 635 |
66538 |
ELBOW, SPARK PLUG Price: Call Us |
| 676 |
393757 |
DEFLECTOR, EXHAUST, SIDE OUTLET Price: Call Us |
| 679 |
270382 |
WASHER, FOAM Price: Call Us |
| 680 |
221839 |
WASHER, BRASS Price: Call Us |
| 689 |
263073 |
SPRING, RETAINER Price: Call Us |
| 741 |
262992 |
GEAR, TIMING Price: Call Us |
| 779 |
262570 |
LINK, SPEED CONTROL Price: Call Us |
| 851 |
493880 |
TERMINAL, IGNITION CABLE Price: Call Us |
| 869 |
211787 |
SEAT, INTAKE VALVE, STANDARD Price: Call Us |
| 870 |
211172 |
SEAT, INTAKE VALVE, STANDARD Price: Call Us |
| 871 |
262001 |
GUIDE, EXHAUST VALVE Price: Call Us |
| 871A |
63709 |
GUIDE, INTAKE VALVE Price: Call Us |
| 916 |
280321 |
RACK, GEAR CONTROL Price: Call Us |
| 966 |
492797 |
BASE, AIR CLEANER Price: Call Us |
| 967 |
491588 |
SUB= 3364 Price: Call Us |
| 968 |
495872 |
COVER, AIR CLEANER Price: Call Us |
| 969 |
490073 |
SCREW, COVER MOUNTING Price: Call Us |
| 971 |
94902 |
SCREW, HEX HEAD Price: Call Us |
| 987 |
398970 |
SEAL, THROTTLE SHAFT Price: Call Us |
| 995 |
225057 |
LEVER, BRACKET ASSY Price: Call Us |
| 1012 |
490507 |
RETAINER, LINK Price: Call Us |
