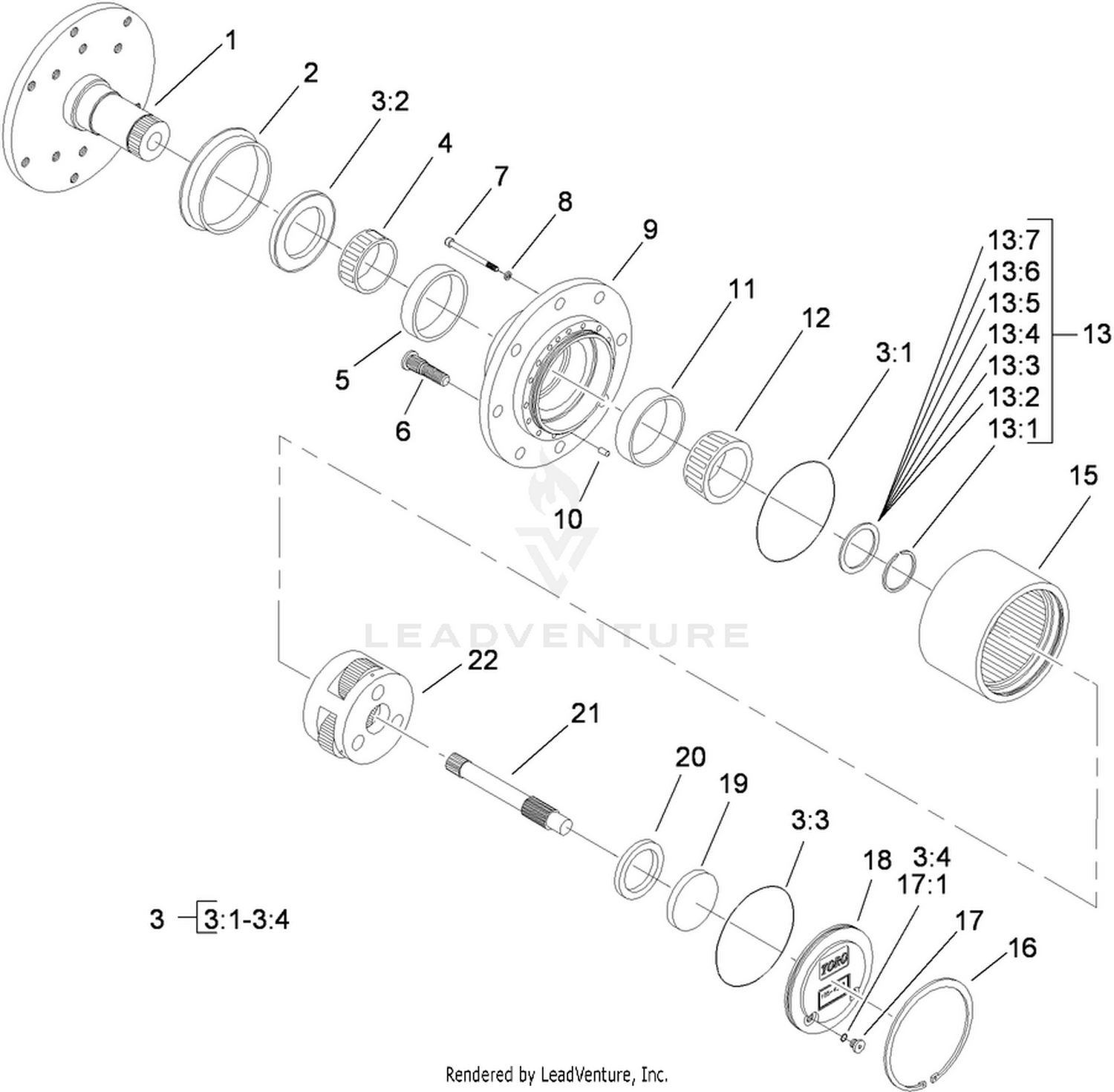

Planetary Assembly No. 105-4588
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 105-8122 | SEAL-BOOT Price: $19.70 |
| 3 | 105-8137 | SEAL KIT Price: $60.61 |
| 4 | 105-8120 | BEARING-CONE Price: $98.15 |
| 5 | 105-8119 | BEARING-CUP Price: $130.48 |
| 6 | 105-8124 | STUD-WHEEL Price: $7.84 |
| 7 | 105-8125 | BOLT-HEAD, SOCKET Price: $6.53 |
| 8 | 3253-18 | WASHER-LOCK Price: $0.68 |
| 10 | 105-8121 | PIN-DOWEL Price: $0.41 |
| 11 | 105-8117 | BEARING-CUP Price: $114.89 |
| 12 | 105-8118 | BEARING-CONE Price: $87.73 |
| 13 | 105-8136 | SHIM KIT Price: $177.70 |
| 15 | 105-8113 | GEAR-RING Price: $633.38 |
| 16 | 105-8132 | RING-RETAINING Price: $16.29 |
| 17 | 353-990 | PLUG ASM Price: $10.01 |
| 18 | 105-8138 | CAP-END Price: $92.32 |
| 19 | 105-8135 | PLUG-THRUST Price: $27.01 |
| 20 | 106-6864 | WASHER-THRUST Price: $66.36 |
| 21 | 105-8116 | SHAFT-DRIVE Price: $295.80 |
