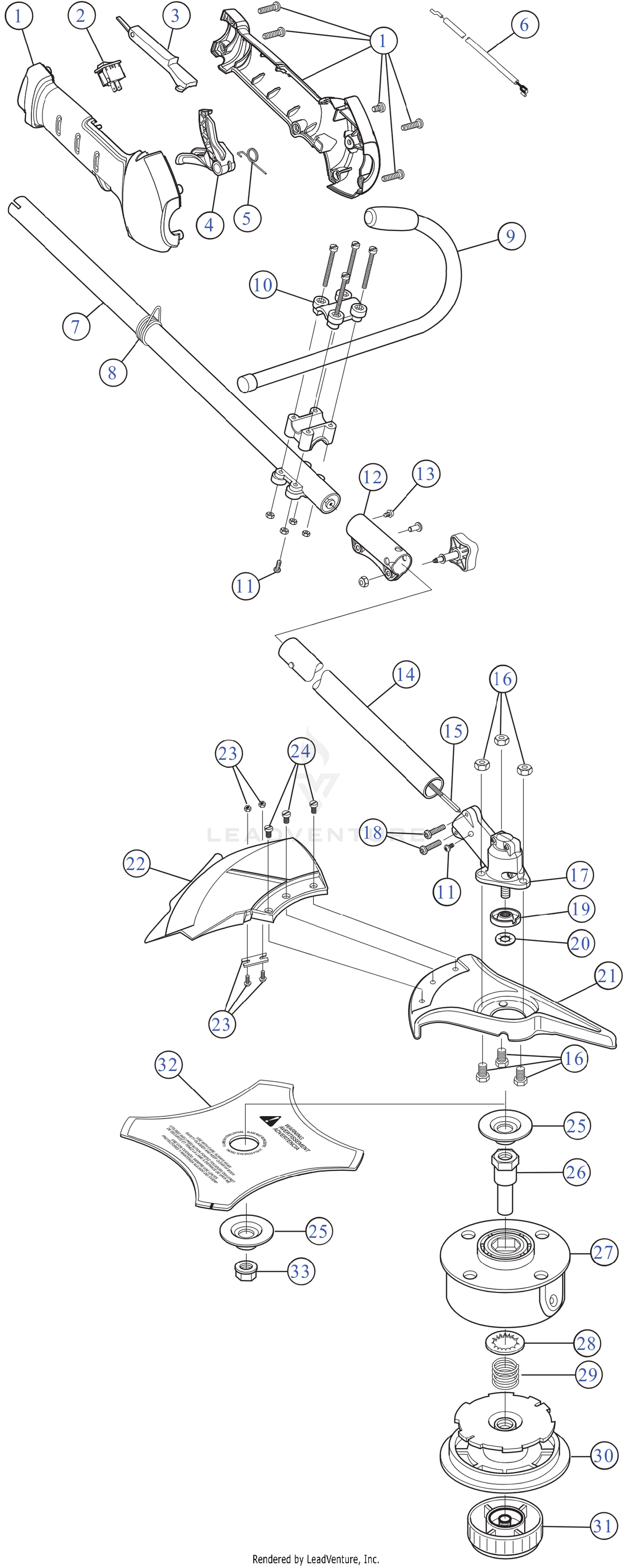

| Ref | Part Number | Description |
|---|
| 2 |
791-182405 |
SW, MOMENTARY ON/O Price: $9.29 |
| 3 |
731-08433C-10 |
Throttle Trigger Lock-Out This part replaces 731-08433A-10. Price: $2.72 |
| 4 |
731-04970B-10 |
THROTTLE TRIGGER Price: $8.16 |
| 5 |
753-05007 |
TRIGGER SPRING Price: $4.42 |
| 6 |
753-05270 |
THROTTLE CABLE Not Available Price: |
| 7 |
753-04236 |
UPPER DRIVE SHAFT HOUSING ASSEMBLY Price: $87.52 |
| 8 |
4301A |
SHOULDER STRAP CLAMP Price: $3.06 |
| 8 |
791-610327 |
CLAMP-SHOULDER STR Price: $28.62 |
| 9 |
791-181099 |
HANDLE ASSEMBLY-JAY Price: $10.64 |
| 10 |
791-683295 |
HANDLE BRACKET ASSEMBLY Price: $40.17 |
| 11 |
791-182519 |
SCREW, 8-32 x .312 P Price: $4.37 |
| 13 |
791-182057 |
SCREW, 10-32X.250 TA Price: $3.93 |
| 14 |
753-04504 |
OUTER DRIVE HOUSING Price: $64.45 |
| 15 |
753-05267 |
LOWER DRIVE SHAFT Price: $37.46 |
| 16 |
791-182200 |
SCREW SET-GUARD MT Price: $6.07 |
| 18 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 19 |
791-182196 |
SPACER-GEARBOX Price: $19.73 |
| 20 |
753-04348 |
PALNUT:3/8" DIAM Price: $5.94 |
| 21 |
791-147492 |
SHIELD-BLADE CAST Price: $111.50 |
| 22 |
791-180387 |
GUARD ASSEMBLY BRUSH CUT Not Available Price: |
| 23 |
791-682061 |
BLADE ASSEMBLY Price: $12.51 |
| 24 |
791-683304 |
SCREW-GUARD MTG PK Price: $10.12 |
| 25 |
791-147490 |
WASHER-BLADE CLAMP BRUSH CUT Price: $10.07 |
| 26 |
791-612483 |
SHAFT-SPOOL Price: $49.05 |
| 27 |
791-683301 |
SPOOL ASM-OUTER 3000 NLAUD Not Available Price: |
| 28 |
1772 |
RETAINER This part replaces 791-612026. Price: $5.94 |
| 29 |
791-610636B |
SPRING-SPOOL Price: $9.35 |
| 30 |
791-147495 |
REEL-INNER SPOOL 3000 STRG TRM Price: $24.36 |
| 31 |
791-180814B |
KNOB ASSEMBLY-BUMP 3000 STRG TRM Not Available Price: |
| 32 |
791-145873B |
BLADE 4-TOOTH Price: $37.49 |
| 33 |
712-04105 |
BLADE LOCK NUT Price: $9.97 |
