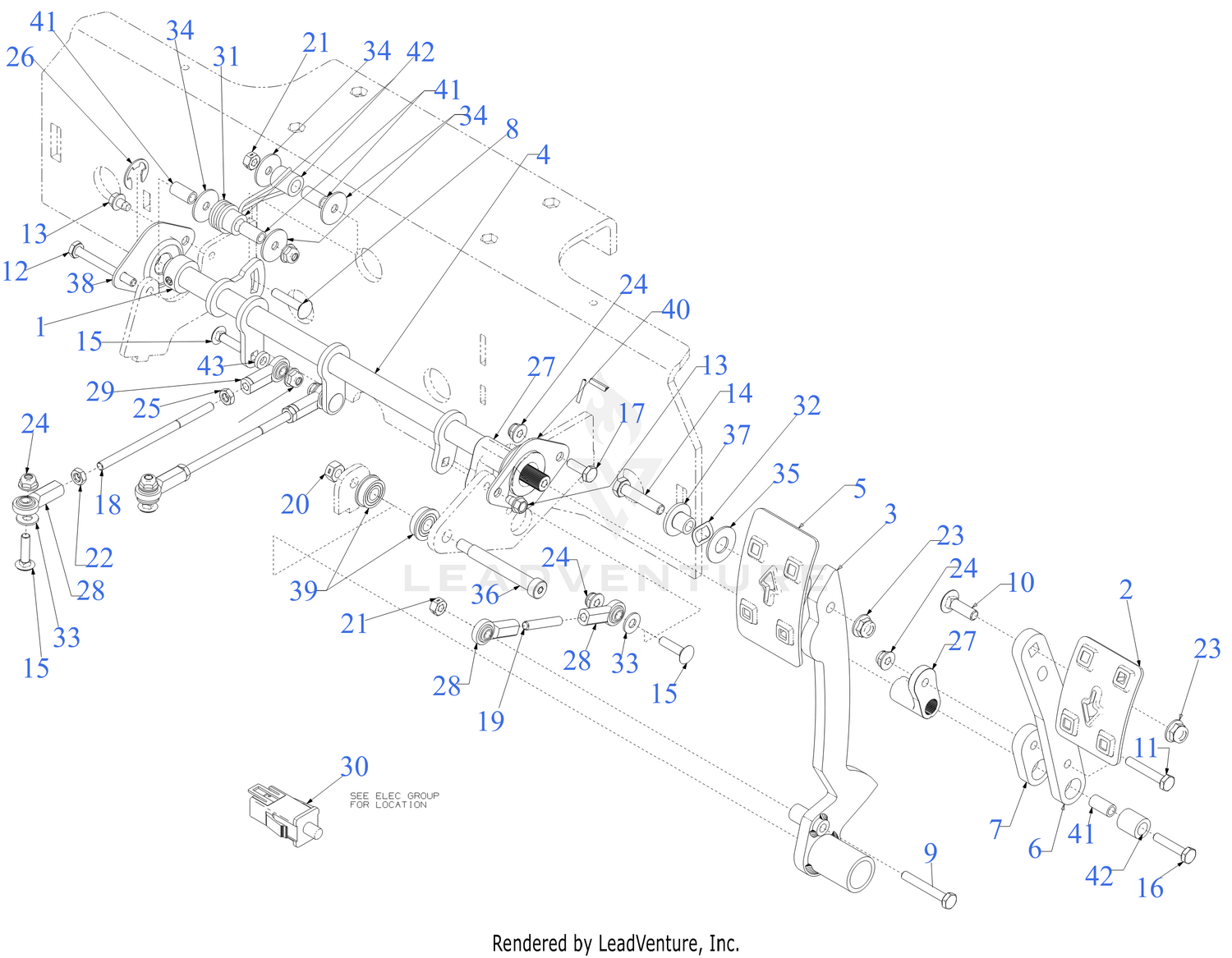

| Ref | Part Number | Description |
|---|
| 1 |
01006350 |
SHAFT COLLAR .625 Price: $21.86 |
| 4 |
680Z00446 |
SPEED CONTROL ARM ASSEMBLY Price: $111.54 |
| 8 |
710-0111 |
CARRIAGE BOLT 1/4-20 x 1.25 Gr5 Price: $3.19 |
| 9 |
710-0136 |
HEX SCREW 1/4-20 x 1.75 Price: $3.66 |
| 10 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 11 |
710-05289 |
SCREW 1/4-20 x 1.50 GR8 Price: $4.83 |
| 12 |
710-0641 |
SCREW 1/4-20 x 2.25 GR5 Price: $3.66 |
| 13 |
710-0653 |
SCREW 1/4-20 x .375 Price: $3.78 |
| 14 |
710-0805A |
SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 15 |
710-0932A |
SCREW 1/4-20 x 1 GR5 Price: $3.66 |
| 16 |
710-1062 |
SCREW 1/4-20 x 1.25 GR5 Price: $5.45 |
| 17 |
710-3015 |
SCREW 1/4-20X.75 GR5 Price: $3.65 |
| 18 |
711-05493 |
SPEED CONTROL ROD Price: $15.04 |
| 19 |
711-06634 |
STUD - 1/4-28 Price: $14.74 |
| 20 |
912-0158 |
HEX NUT CENTER Price: $2.83 |
| 21 |
712-0291 |
HEX NUT Price: $3.93 |
| 22 |
712-0314 |
HEX JAM NUT 1/4-28 Price: $3.21 |
| 23 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 24 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 25 |
712-04326 |
JAM NUT 1/4-28 LH Price: $13.12 |
| 26 |
716-0106A |
E-RING Price: $4.42 |
| 27 |
718-04858A |
PEDAL ARM Price: $18.42 |
| 28 |
723-04077 |
END ROD (RH) Price: $19.55 |
| 29 |
723-04088 |
ROD (LH) Price: $23.45 |
| 30 |
925-3164A |
PLUNGER SWITCH NO/NC Price: $37.67 |
| 31 |
732-04955 |
TORSION SPRING Price: $3.74 |
| 32 |
736-0232 |
WAVE WASHER Price: $4.02 |
| 33 |
736-04446 |
FLAT WASHER Price: $3.75 |
| 34 |
736-04511 |
FLAT WASHER Price: $2.94 |
| 35 |
736-3084 |
FLAT WASHER Price: $4.39 |
| 36 |
738-05003 |
SHOULDER BOLT .375 x 2.50 x 5/16-18 Price: $10.31 |
| 37 |
738-05022 |
DOUBLE SHOULDER SPACER Price: $3.74 |
| 38 |
741-04566 |
BALL BEARING Price: $13.94 |
| 39 |
741-04568 |
FLANGE BEARING Price: $33.87 |
| 40 |
741-04569 |
BALL BEARING Price: $22.68 |
| 41 |
750-05369 |
SPACER .260 x .375 x .75 Price: $4.77 |
| 42 |
750-0807 |
SPACER-.375X.625X.600 Price: $5.44 |
