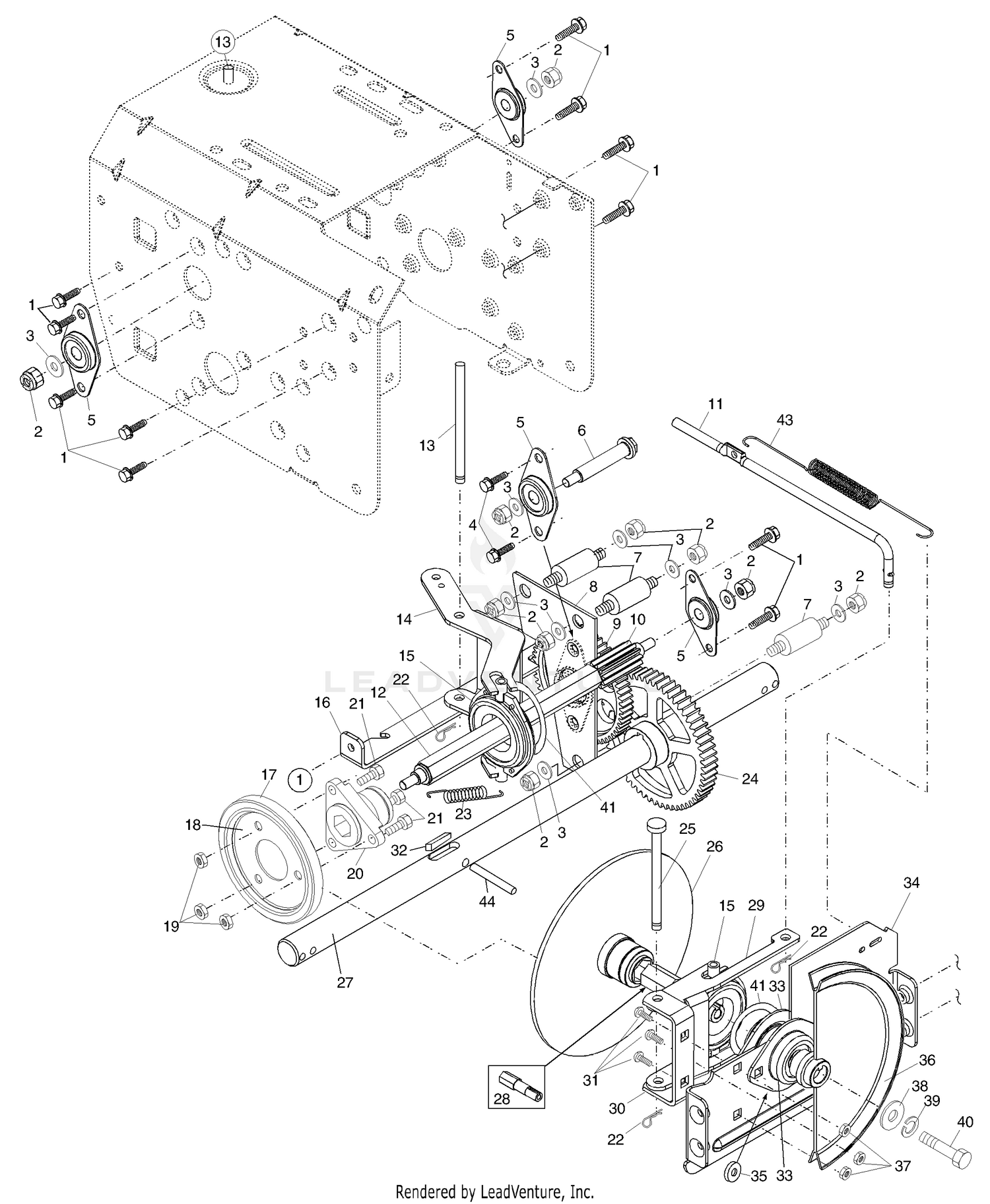

| Ref | Part Number | Description |
|---|
| 1 |
532146315 |
SCREW Price: $8.99 |
| 1 |
758-6780 |
Plug Assembly (Incl. Ref. #5) Price: Call Us |
| 2 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 2 |
60-6450 |
DISC Price: $12.41 |
| 3 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 3 |
58-6760 |
SPRING Price: $17.61 |
| 4 |
58-6770 |
PLUNGER Price: $46.54 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 5 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 5 |
58-6790 |
O-RING Price: $2.81 |
| 6 |
353-508 |
PLUG-HH This part replaces 58-6710. Price: $7.96 |
| 6 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 7 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 7 |
58-6720 |
O-RING Price: $1.30 |
| 8 |
532184079 |
PLATE AUXILIARY Price: $6.99 |
| 9 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180082. Price: $199.99 |
| 9 |
60-5720 |
O-RING Price: $1.86 |
| 10 |
532180065 |
GEAR, PINION Price: $12.99 |
| 10 |
58-6370 |
WASHER Price: $40.36 |
| 11 |
532178812 |
ROD, CLUTCH Price: $22.99 |
| 11 |
58-6350 |
PLUG Price: $36.88 |
| 12 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 13 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 14 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 14 |
69-1830 |
PLUG ASM Price: $94.63 |
| 15 |
58-6750 |
O-RING Price: $1.77 |
| 15 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 16 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532184081. Price: $5.99 |
| 16 |
58-6470 |
WASHER Price: $2.71 |
| 17 |
58-6480 |
WASHER Price: $1.57 |
| 17 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 18 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532184078. Price: $7.99 |
| 18 |
58-6490 |
WASHER Price: $0.68 |
| 19 |
84-6450 |
SPRING Price: $34.35 |
| 19 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 20 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 20 |
58-6440 |
POPPET Price: $56.35 |
| 21 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 22 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 22 |
58-6450 |
O-RING Price: $2.48 |
| 23 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 23 |
58-6400 |
BUSHING Price: $37.39 |
| 24 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180081. Price: $199.99 |
| 24 |
58-6700 |
WASHER Price: $1.67 |
| 25 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 25 |
58-6730 |
SPRING Price: $13.26 |
| 26 |
532197763 |
DRIVE PLATE WELDMENT This part replaces 532175341. Price: $54.99 |
| 26 |
58-6310 |
SPACER Price: $108.75 |
| 27 |
532178621 |
SHAFT.AXLE.16".POWER.STEER.SNO Price: $84.99 |
| 27 |
58-6460 |
RING-RETAINING Price: $1.22 |
| 28 |
532197764 |
SHAFT.HEX.SHORT This part replaces 532175340. Price: $11.99 |
| 28 |
58-6420 |
CAP Price: $42.88 |
| 29 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 29 |
69-1840 |
PLUNGER This part replaces 84-6430. Price: $258.13 |
| 30 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 30 |
58-6380 |
PLUG Price: $325.92 |
| 31 |
58-6410 |
SPRING Price: $12.58 |
| 31 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 32 |
532189282 |
KEY, SQUARE 1/4 X .875 This part replaces 532178879. Price: $4.99 |
| 32 |
60-6440 |
EYELET Price: $2.04 |
| 33 |
532188909 |
BEARING FLANGE This part replaces 532175323. Price: $24.99 |
| 33 |
58-6290 |
POPPET Price: $47.04 |
| 34 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 35 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 35 |
58-6330 |
SEAT Price: $39.50 |
| 36 |
532175348 |
PULLEY, TRACTION DRIVE Price: $21.99 |
| 36 |
58-6340 |
O-RING Price: $12.86 |
| 37 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 37 |
84-6420 |
PLUNGER Price: $346.48 |
| 38 |
532059289 |
STEEL WASHER Price: $3.99 |
| 38 |
58-6320 |
WIPER Price: $10.93 |
| 39 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 39 |
84-6400 |
DISC-ORIFICE (.046) Price: $18.55 |
| 40 |
84-6401 |
DISC-ORIFICE (.056) Price: $30.07 |
| 40 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 41 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 43 |
532179095 |
SPRING.RETURN Price: $3.99 |
