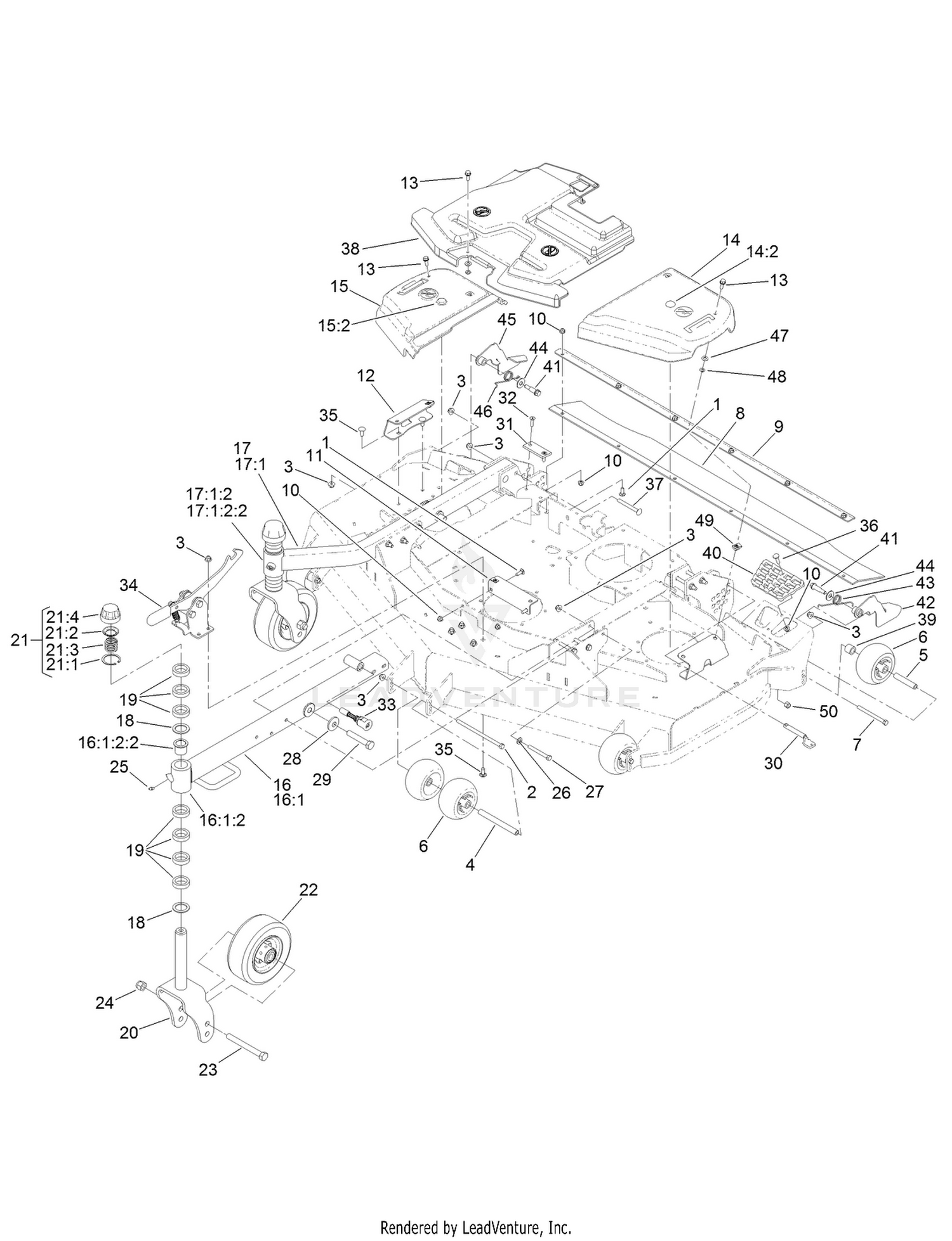

| Ref | Part Number | Description |
|---|
| 1 |
3230-10 |
BOLT-CARR Price: $0.50 |
| 2 |
108-5388 |
SCREW-HH Price: $14.99 |
| 3 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 4 |
98-5967 |
SPACER-WHEEL Price: $14.99 |
| 5 |
98-7912 |
TUBE-SPANNER Price: $12.23 |
| 6 |
1-603299 |
ROLLER-SCALP, ANTI Price: $21.99 |
| 7 |
323-23 |
SCREW-HH Price: $2.07 |
| 8 |
140-9031 |
FLAP RUBBER Price: $55.93 |
| 9 |
139-0919-01 |
BRACKET-FLAP Price: $65.51 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
140-3066-03 |
BRACKET-BELT COVER, MIDDLE (CE) Price: $39.29 |
| 12 |
114-5882-01 |
BRACKET-COVER, BELT Price: $54.34 |
| 13 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 14 |
138-7379 |
LH BELT COVER ASM Price: $51.56 |
| 15 |
138-7362 |
RH BELT COVER ASM Price: $51.56 |
| 16 |
138-0269-01 |
ARM-CASTER, LH Price: $466.77 |
| 17 |
138-0271-01 |
ARM-CASTER, RH Price: $452.69 |
| 18 |
69-6860 |
WASHER-THRUST Price: $3.15 |
| 19 |
69-1510 |
SPACER Price: $4.48 |
| 20 |
137-2546-01 |
FORK-CASTER Price: $223.19 |
| 21 |
92-9727 |
HOC CAP ASM Price: $78.05 |
| 22 |
137-5529 |
WHEEL ASM Price: $215.70 |
| 23 |
327-24 |
SCREW-HH Price: $7.99 |
| 24 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 25 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 26 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
323-20 |
SCREW-HH Price: $1.28 |
| 28 |
103-0865 |
Washer-Blade Bolt, Heavy Price: $4.26 |
| 29 |
139-6203 |
SCREW-HH Price: $8.29 |
| 30 |
140-3064 |
PIN-HOC ASM Price: $14.75 |
| 31 |
138-4452 |
PAD-STOP, DECK Price: $2.98 |
| 32 |
133-4543 |
SCREW Price: $5.61 |
| 33 |
139-6345 |
SPRING-PIN Price: $32.89 |
| 34 |
147-0070 |
LATCH ASM This part replaces 139-0888. Price: $110.77 |
| 35 |
3231-27 |
SCREW-CARR Price: $0.54 |
| 36 |
3230-3 |
SCREW-CARR Price: $0.53 |
| 37 |
3231-11 |
SCREW-CARR Price: $4.09 |
| 38 |
138-7373 |
COVER-BELT, CENTER Price: $64.99 |
| 39 |
98-7913 |
TUBE-SPACER Price: $6.81 |
| 40 |
126-4781 |
STEP-DECK Price: Call Us |
| 41 |
66-0561 |
SCREW-SHOULDER Price: $5.49 |
| 42 |
139-6319-03 |
GUARD-LH Price: $56.82 |
| 43 |
51-4380 |
SPRING-TORSION, LH Price: $14.21 |
| 44 |
3-6803 |
WASHER-ADJUSTING Price: $0.75 |
| 45 |
139-6317-03 |
GUARD-RH Price: $56.82 |
| 46 |
51-4370 |
SPRING-TORSION, RH Price: $14.21 |
| 47 |
73-0041 |
WASHER-THRUST Price: $1.01 |
| 48 |
117-2749 |
NUT-PUSH Price: $0.25 |
| 49 |
94-2413 |
NUT-U Price: $1.79 |
