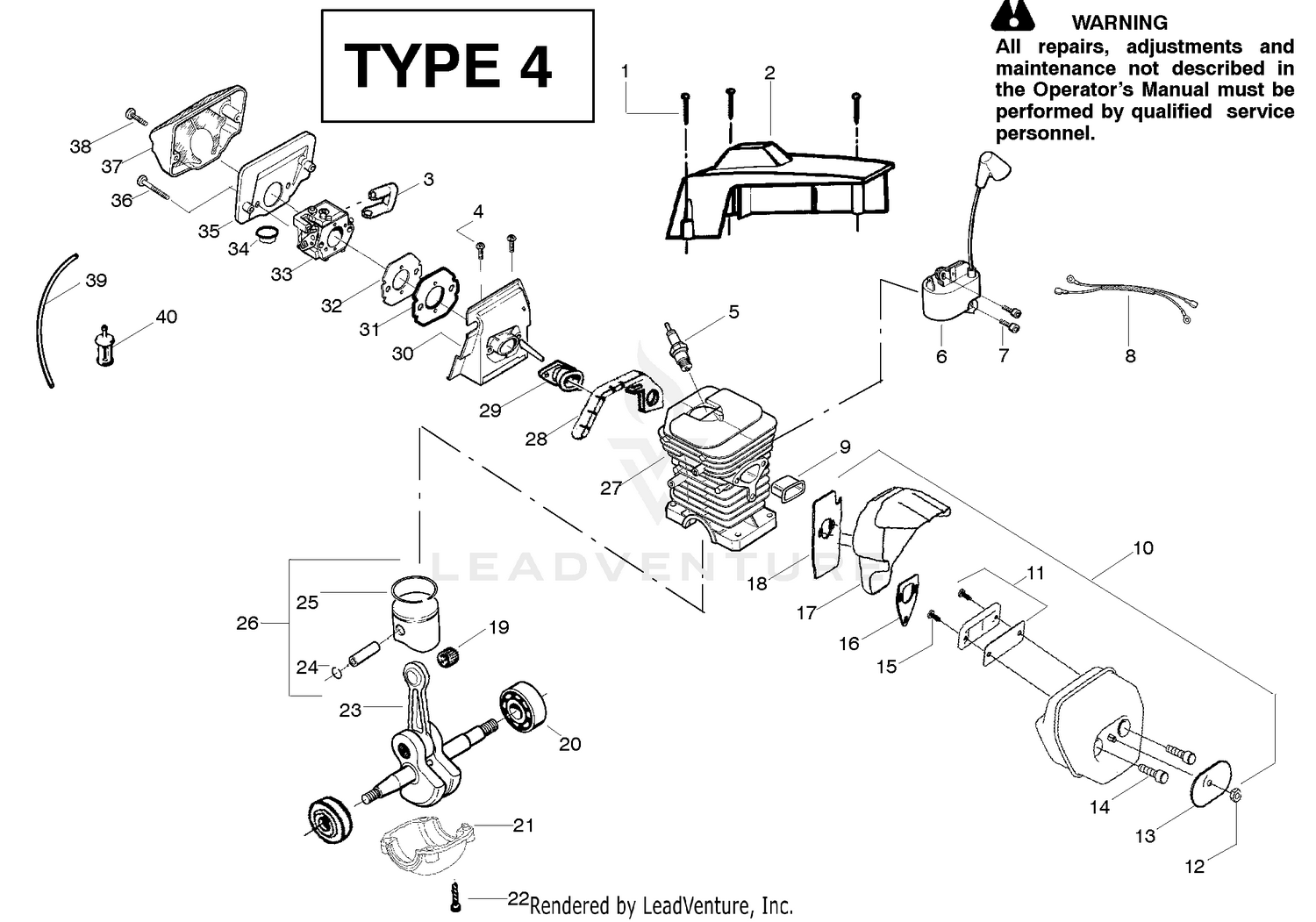

| Ref | Part Number | Description |
|---|
| 1 |
530016154 |
Screw Price: $0.99 |
| 1 |
98-9772 |
HEAD-FILTER Price: $235.82 |
| 2 |
530069577 |
Kit-Cylinder Shield Price: $2.60 |
| 2 |
98-9764 |
ELEMENT Price: $39.02 |
| 3 |
530035583 |
Grommet -Carb. Price: $4.99 |
| 3 |
98-9774 |
O-RING Price: $20.04 |
| 4 |
530015814 |
Screw Price: $1.49 |
| 4 |
98-9775 |
BASE-FILTER Price: $115.28 |
| 5 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.69 |
| 5 |
98-9773 |
PLUG-BASE, FILTER Price: $34.25 |
| 6 |
237-42 |
O-RING Price: $2.78 |
| 6 |
545199901 |
IGNITION MODULE This part replaces 530039143. Price: $22.99 |
| 7 |
237-78 |
O-RING Price: $3.85 |
| 7 |
545121901 |
Screw Price: $1.99 |
| 8 |
530037467 |
Assy-Switch Wire Price: $19.99 |
| 8 |
98-9776 |
PLUG-HEAD, FILTER Price: $23.26 |
| 9 |
530037652 |
Insulator-Heat Price: $1.99 |
| 9 |
98-9777 |
DRAIN VALVE ASM Price: $74.38 |
| 12 |
574266401 |
NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
| 13 |
530056061 |
Cover-Bolt Price: $2.99 |
| 14 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 15 |
530016351 |
Screw-Spark Screen Price: $1.99 |
| 16 |
530055128 |
Gasket-Muffler Price: $1.99 |
| 17 |
530055765 |
Assy-Muffler Backplate Price: $3.99 |
| 18 |
530055402 |
Backplate - Alum. Price: $4.99 |
| 19 |
530032117 |
Bearing-Piston Pin Price: $4.36 |
| 20 |
530056363 |
Assy-Bearing & Seal Price: $11.99 |
| 21 |
530049794 |
Cap-Crankcase Price: $3.99 |
| 22 |
530015897 |
Screw Price: $1.99 |
| 23 |
503920801 |
This part replaces 530029794. Price: $124.99 |
| 24 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 25 |
530037380 |
Ring-Piston Price: $2.99 |
| 28 |
530019251 |
Seal-Super Clean Price: $1.99 |
| 29 |
530035581 |
Intake Boot Price: $17.99 |
| 30 |
530053396 |
Adapter-Carb. Price: $2.99 |
| 31 |
530037872 |
Intake Plate-Carb Price: $1.99 |
| 32 |
530019172 |
Gasket-Carb. Price: $1.49 |
| 33 |
545013503 |
CARBURETOR This part replaces 530071693. Price: $32.99 |
| 34 |
530036792 |
Isolator Price: $4.99 |
| 35 |
530059738 |
Filter-Air (Bottom) Price: $7.99 |
| 36 |
530015970 |
Screw Price: $1.99 |
| 37 |
545057701 |
Filter-Air (Top) Price: $2.99 |
| 38 |
530015899 |
Screw Price: $1.99 |
| 39 |
530069247 |
Kit-Fuel Line (Small) Price: $3.69 |
| 40 |
545038502 |
Assy-Fuel Pick-up Price: $5.99 |
