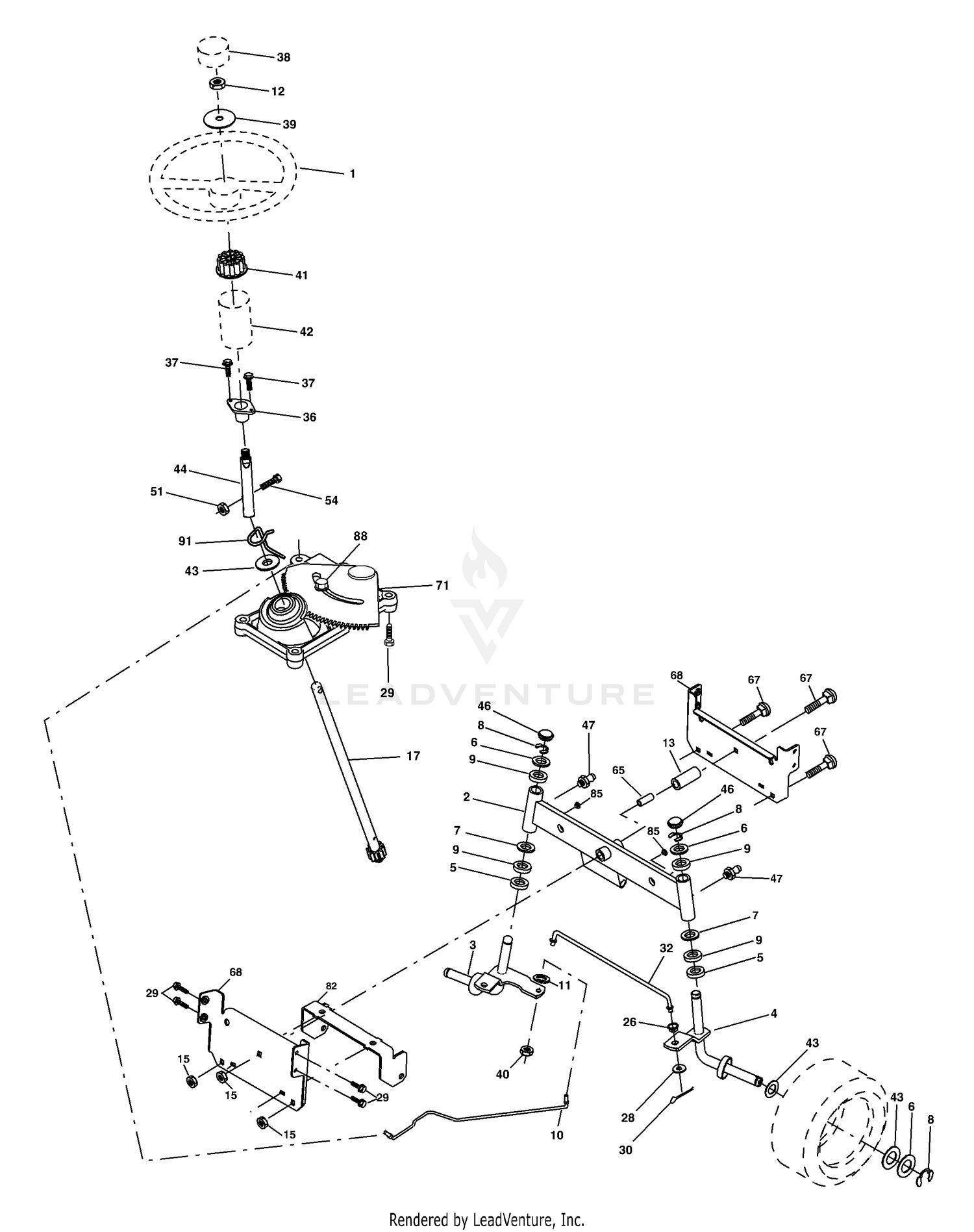

| Ref | Part Number | Description |
|---|
| 1 |
140044X428 |
Wheel Steering Auto Black Price: Call Us |
| 1 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 2 |
175131 |
Axle Asm Front Price: Call Us |
| 3 |
169840 |
Spindle Asm Lh Price: Call Us |
| 4 |
169839 |
Spindle Asm Rh Price: Call Us |
| 4 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 5 |
92-7530 |
CABLE-BRAKE, LH Price: $132.98 |
| 6 |
121748X |
Washer 25/32 X 1 5/8 X 16ga Price: Call Us |
| 6 |
92-7529 |
CABLE-BRAKE, RH Price: $132.98 |
| 7 |
19272016 |
Washer 27/32 X 1 1/4 X 16 Ga Price: Call Us |
| 7 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 9 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 9 |
3366R |
Bearing Col Strg Blk Price: Call Us |
| 10 |
175121 |
Link Drag Extended Price: Call Us |
| 10 |
75-1440-03 |
PEDAL-BRAKE, LH Price: $207.74 |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 12 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 Unf Price: Call Us |
| 13 |
136518 |
Spacer Bearing Axle Front Price: Call Us |
| 13 |
75-1430 |
RH BRAKE PEDAL ASM Price: $255.51 |
| 14 |
322-3 |
SCREW-HH Price: $0.79 |
| 15 |
145212 |
Hex Flange Lock Price: Call Us |
| 15 |
75-1470 |
PIN-PIVOT, BRAKE Price: $45.68 |
| 16 |
32128-20 |
NUT-HF Price: $0.99 |
| 17 |
180641 |
Shaft Asm Strg Price: Call Us |
| 17 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 18 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 19 |
105-0138-03 |
STABILIZER Price: $159.95 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 21 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 22 |
100-3868-03 |
BRACKET-TIPPER Price: $64.55 |
| 23 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 24 |
75-5390 |
ROLLER Price: $56.69 |
| 25 |
75-5400 |
PIN-ROLLER Price: $26.06 |
| 26 |
126847X |
Bushing Rod Tie Blk Lt Price: Call Us |
| 28 |
19131416 |
Washer 13/32 X 7/8 X 16ga Price: Call Us |
| 29 |
17060612 |
Screw 3/8-16x3/4 Price: Call Us |
| 30 |
76020412 |
Pin Price: Call Us |
| 32 |
130465 |
Rod Tie Wire Form 19 75 Mech Price: Call Us |
| 36 |
155099 |
Bushing Strg 5/8 Id Dash Price: Call Us |
| 37 |
152927 |
Screw TT #10-32 x 5 x 3/8 Flange Price: Call Us |
| 38 |
140045X428 |
Insert Cap Strg Price: Call Us |
| 39 |
19183812 |
Washer 9/16 ID x 2-3/8 OD 12 Gr Price: Call Us |
| 40 |
7810H |
Locknut Center Price: Call Us |
| 41 |
100711L |
Adaptor Wheel Strg 640/ 635id Price: Call Us |
| 42 |
145054X428 |
Boot Dash Steering Price: Call Us |
| 43 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 44 |
180640 |
Extension Steering Price: Call Us |
| 46 |
121232X |
Cap Spindle Fr Top Blk Price: Call Us |
| 47 |
183226 |
Fitting Grease Price: Call Us |
| 51 |
73540400 |
Nut Crownlock 1/4-28 Price: Call Us |
| 54 |
71130420 |
Bolt Hex 1/4-28unf x 1-1/4 Gr. 8 Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72140618 |
Bolt Rdhd Sq 3/8-16 Unc x 2-3/4 Price: Call Us |
| 68 |
169827 |
Brace Axle Price: Call Us |
| 71 |
175146 |
Steering Asm Price: Call Us |
| 82 |
169835 |
Bracket Susp Chassis Front Price: Call Us |
| 85 |
133835 |
Fastener Christmas Tree Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 Price: Call Us |
