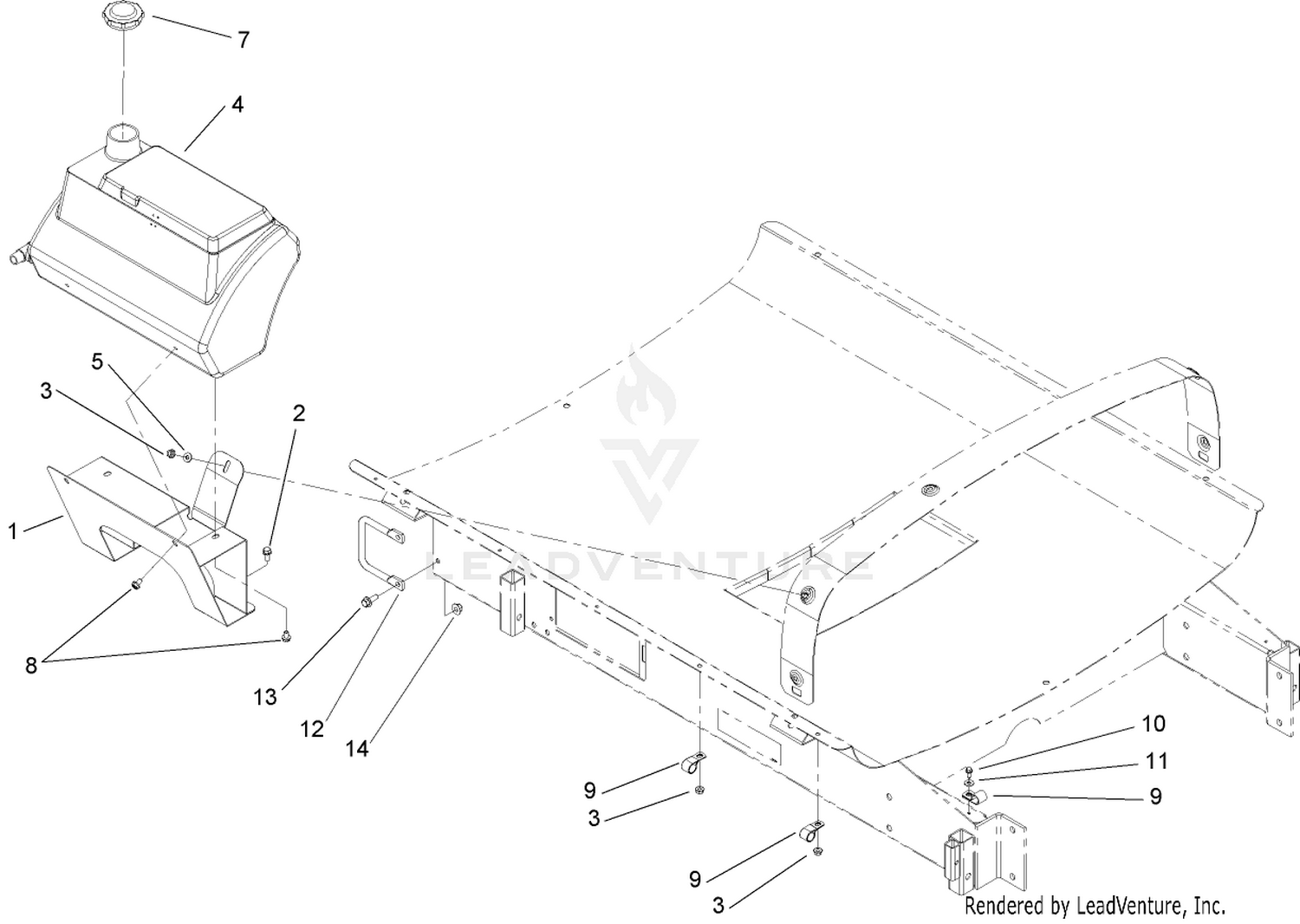

Fresh Water Tank Assembly
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-2819-03 | FRESH WATER TANK BRACKET ASM Price: $139.48 |
| 2 | 3234-5 | SCREW-HHF Price: $0.42 |
| 3 | 32128-20 | NUT-HF Price: $0.99 |
| 4 | 100-8438 | FRESH WATER TANK ASM Price: $629.92 |
| 5 | 3256-56 | WASHER-FLAT Price: $1.15 |
| 7 | 100-7008 | CAP-TANK, FRESH WATER Price: $32.57 |
| 8 | 3234-28 | SCREW-HHF Price: $1.59 |
| 9 | 2412-4 | CLAMP-R Price: $4.22 |
| 10 | 32144-10 | SCREW-HWH Price: $4.29 |
| 11 | 3256-2 | WASHER-FLAT Price: $0.39 |
| 12 | 106-1357 | HANDLE Price: $276.35 |
| 13 | 3234-42 | SCREW-HHF Price: $1.10 |
