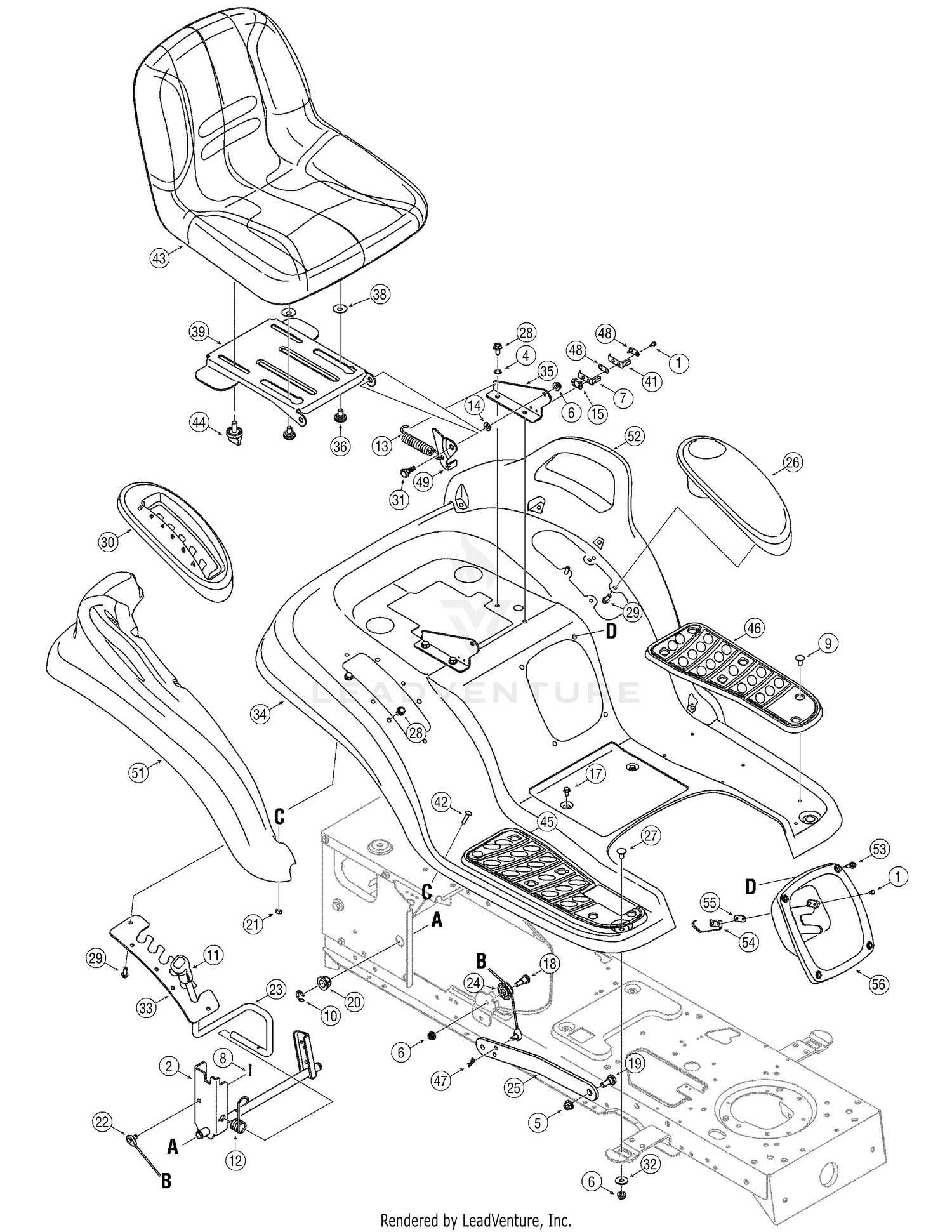

| Ref | Part Number | Description |
|---|
| 1 |
710-0227 |
Screw, #8-18 x.500 Price: $3.90 |
| 2 |
683-04223-0637 |
LIFT SHAFT ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-04223. Price: |
| 3 |
736-0204 |
Washer, Flat, .344 x .62 x .033 Price: $3.89 |
| 4 |
736-0607 |
Lock Washer, 5/16 Price: $3.66 |
| 5 |
712-04065 |
Flange Lock Nut, 3/8-16 Price: $3.68 |
| 6 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 7 |
725-1439 |
Inner Seat Spring Switch Price: $7.18 |
| 8 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 9 |
726-3046 |
Foot Pad Clips Price: $3.71 |
| 10 |
716-0106A |
E-Ring Price: $4.42 |
| 11 |
720-0311 |
Handle Grip Price: $13.26 |
| 12 |
732-0874 |
Torsion Spring Price: $4.02 |
| 13 |
732-1184 |
Extension Spring,.84 x 4.6 Price: $10.23 |
| 14 |
736-0242 |
Flat Washer Price: $3.75 |
| 15 |
726-0278 |
Insulator Boss Plate Price: $5.95 |
| 16 |
736-3019 |
Flat Washer,.31 x 1.062 x.134 Price: $5.45 |
| 17 |
710-0599 |
Screw, 1/4-20 x.500 Price: $3.86 |
| 18 |
738-0138A |
Hex Cap Screw, 5/16-18 x.62 Price: $5.81 |
| 19 |
738-0380 |
Shoulder Screw, 3/8-16 Price: $7.34 |
| 20 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 21 |
712-0271 |
Sems Nut 1/4-20 Price: $3.78 |
| 22 |
746-0968 |
Lift Cable, 16.16 Price: $18.10 |
| 23 |
747-04447 |
Lift Handle Price: $38.98 |
| 24 |
756-1154 |
Roller Pulley Price: $6.63 |
| 25 |
783-05546A-0637 |
Lift Link This part replaces 783-05546. Price: $17.96 |
| 26 |
731-1993A |
COVER-W/CUP HOLDER Not Available Price: |
| 27 |
710-0451 |
Carriage Bolt, 5/16-18 x.750 Price: $3.53 |
| 28 |
710-0604A |
Self-tapping Screw, 5/16-18 x.625 Price: $3.96 |
| 29 |
710-0895 |
Self-tapping Screw, 1/4-15 x.75 Price: $5.82 |
| 30 |
731-06795 |
Cover, Lift Lever This part replaces 731-1990. Price: $21.39 |
| 31 |
738-0296 |
Shoulder Screw,.437 x.286 Price: $3.93 |
| 32 |
736-3078 |
Flat Washer,.349 x 1.0 x.063 Price: $3.95 |
| 33 |
783-0677B |
LIFT ADJUSTMENT BRACKET Not Available Price: |
| 34 |
783-04331A |
FENDER-4 STY,2 SPD Not Available Price: |
| 35 |
783-1489C |
Seat Mounting Bracket Price: $17.99 |
| 36 |
738-04012C |
Shoulder Screw, .625 x .145, 3/8-16 This part replaces 738-04012A. Price: $4.75 |
| 37 |
712-04064 |
Flange Lock Nut, 1/4-20 Price: $3.64 |
| 38 |
736-0300 |
Flat Washer,.406 x .875 x .059 Price: $3.93 |
| 39 |
783-04081B |
Seat Pivot Bracket Price: $26.56 |
| 40 |
732-0499 |
Compression Spring,.41 x 1.5 Price: $8.24 |
| 41 |
925-1303 |
Outer Seat SPring This part replaces 725-1303. Price: $5.58 |
| 42 |
710-0932A |
SCREW 1/4-20 x 1 GR5 This part replaces 710-0932. Price: $3.66 |
| 43 |
757-04003A |
HIGH BACK SEAT Not Available Price: |
| 44 |
720-04061 |
Adjustment Knob, 3/8-16 x .875 Price: $4.67 |
| 45 |
735-0656 |
FOOT PAD (RH) Not Available Price: |
| 46 |
735-0657 |
FOOT PAD (LH) Not Available Price: |
| 47 |
714-0111 |
Cotter Pin Price: $4.20 |
| 48 |
726-0279 |
Insulator Plate Price: $3.22 |
| 49 |
783-0209D |
Seat Lift Bracket Price: $14.21 |
| 50 |
726-0201 |
Speed Clip Price: $6.01 |
| 51 |
731-2618 |
FENDER FLARE (RH) Not Available Price: |
| 52 |
731-2619 |
FENDER FLARE (LH) Not Available Price: |
| 53 |
710-0642 |
Screw, 1/4-20 x.750 Price: $4.05 |
| 54 |
725-1713 |
REVERSE SAFETY SWITCH Not Available Price: |
| 55 |
926-0320 |
Insulator Nut Plate This part replaces 726-0320. Price: $6.01 |
