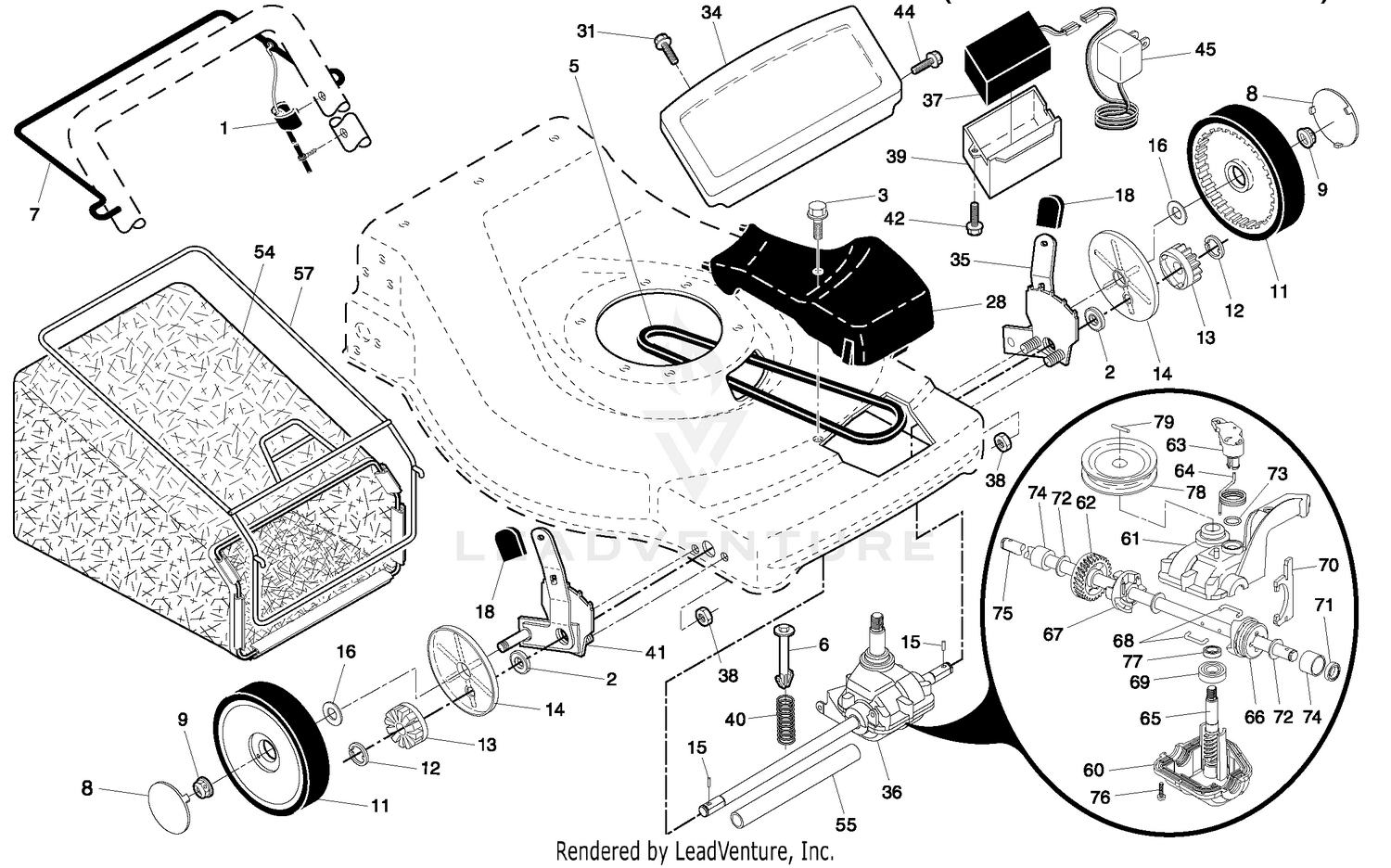

| Ref | Part Number | Description |
|---|
| 2 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 3 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 5 |
146527 |
V-Belt Price: Call Us |
| 6 |
150495 |
Retainer, Spring Price: Call Us |
| 7 |
194185X421 |
Bar, Drive Control Price: Call Us |
| 8 |
407793X421 |
Hubcap Price: Call Us |
| 9 |
83923 |
Locknut, Hex Price: Call Us |
| 11 |
180775 |
Wheel & Tire Assembly, Front Price: Call Us |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 13 |
403849 |
Pinion Price: Call Us |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 15 |
191017 |
Pawl, Drive Price: Call Us |
| 16 |
67725 |
Washer, Flat 3/8 Price: Call Us |
| 18 |
701037X421 |
Selector Knob Price: Call Us |
| 28 |
401271X428 |
Drive Cover Price: Call Us |
| 31 |
141841 |
Screw, Trimplate Price: Call Us |
| 34 |
186153 |
Trimplate Price: Call Us |
| 36 |
199206 |
Gear Case Assembly, Complete Price: Call Us |
| 37 |
189589 |
Battery Price: Call Us |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 39 |
186237 |
Battery Box Price: Call Us |
| 40 |
137090 |
Spring Price: Call Us |
| 42 |
17411308 |
Screw, Battery Box Price: Call Us |
| 44 |
175551 |
Screw, Trimplate Price: Call Us |
| 45 |
190097 |
Charger, Battery Price: Call Us |
| 54 |
412219 |
Grassbag Assembly Price: Call Us |
| 55 |
86012 |
Driveshaft Cover Price: Call Us |
| 57 |
407454 |
Frame, Grassbag Price: Call Us |
| 62 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 63 |
183500 |
Lever, Clutch Price: Call Us |
| 64 |
183501 |
Spring, Return Price: Call Us |
| 65 |
183502 |
Shaft, Input Price: Call Us |
| 66 |
183503 |
Dog, Movable Price: Call Us |
| 67 |
183504 |
Dog, Fixed Price: Call Us |
| 68 |
183505 |
Wire, Formed Price: Call Us |
| 69 |
183506 |
Bearing, Ball Price: Call Us |
| 70 |
183507 |
Fork, Shift Price: Call Us |
| 71 |
183508 |
Seal, Output Shaft Price: Call Us |
| 72 |
183509 |
Washer Price: Call Us |
| 73 |
183510 |
Seal, Case Price: Call Us |
| 74 |
183511 |
Bushing Price: Call Us |
| 75 |
196613 |
Shaft, Output Price: Call Us |
| 76 |
183513 |
Screw Price: Call Us |
| 77 |
183514 |
Seal, Input Shaft Price: Call Us |
| 78 |
199852 |
Pulley, Drive Price: Call Us |
