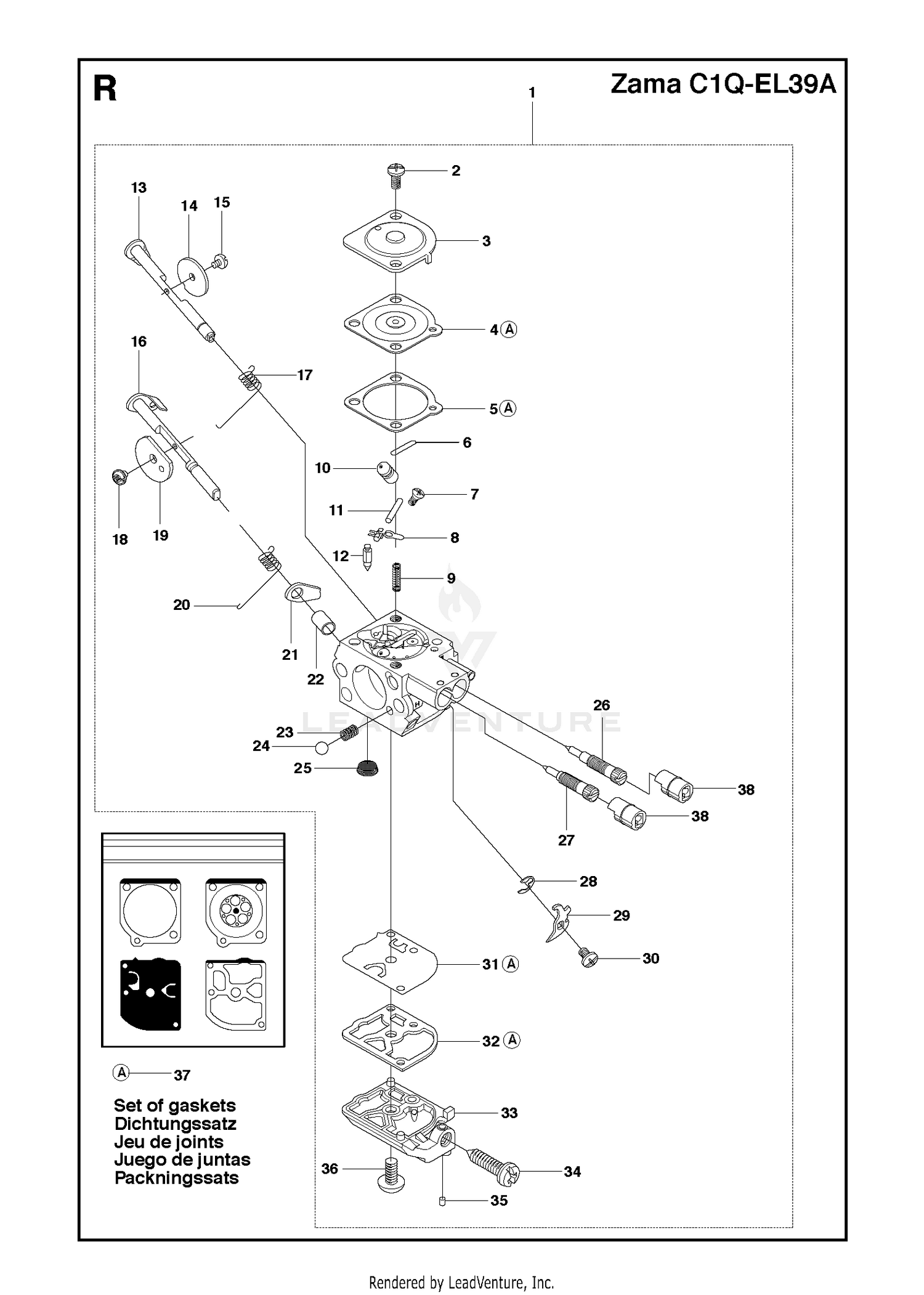

CARBURETOR DETAILS 2

CARBURETOR DETAILS 2

Parts (48)

RefPart NumberDescription
2 503480501 SCREW Price: $2.99
3 503974301 COVER Price: $5.99
4 504105601 DIAPHRAGM Price: $14.99
5 537020401 GASKET Price: $3.99
6 503535601 PLUG Price: $3.99
8 503665901 LEVER Price: $3.99
9 537273401 SPRING This part replaces 537020301. Price: $4.99
10 537387301 JET Price: $12.99
11 537020801 PIN This part replaces 503480001. Price: $2.99
12 503479701 INLET NEEDLE Price: $8.99
13 504102701 SHAFT ASSY Price: $24.99
14 537417201 THROTTLE Price: $6.99
15 503479201 SCREW Price: $2.99
16 501327101 SHAFT ASSY Price: $32.99
17 544372401 RETURN SPRING Price: $3.99
18 503481801 SCREW Price: $2.99
19 537370301 CHOKE CAP Price: $6.99
20 544372601 SPRING Price: $2.99
21 544372501 LEVER Price: $6.99
22 544427001 SLEEVE Price: $4.99
23 537012601 SPRING Price: $2.99
24 537012501 BALL Price: $2.99
25 503481301 FUEL INLET SCREEN Price: $2.99
27 501327201 SCREW MAIN MIXTURE Price: $14.99
29 537417401 LEVER Price: $5.99
30 503479001 SCREW Price: $2.99
31 537020001 PUMP DIAPHRAGM Price: $7.99
32 537020101 GASKET Price: $3.99
33 537416801 COVER Price: $24.99
34 537020701 SCREW Price: $6.99
35 503481101 PLUG Price: $3.99
36 503479601 SCREW Price: $2.99
38 537417001 LIMITER CAP KIT Price: $5.99
50 805772 Manifold-Intake Price: Call Us
53 805466 Saew Price: Call Us
54 805006 Screw Price: Call Us
122 805328 Spacer-Carburetor Price: Call Us
161 807857 Base-Air Cleaner Price: Call Us
305 805406 Screw Price: Call Us
305A 805902 Screw-Hex. (M6 x 16mm) Price: Call Us
445 394018 Filter-Air Price: Call Us
467 491875 Knob Price: Call Us
535 272490 Filter-Air Price: Call Us
642 807862 Cover-Air Cleaner Price: Call Us
643 805631 Plate-Element Price: Call Us
819 805057 Screw Price: Call Us
862 807796 Bracket-Air Cleaner Price: Call Us
1004 805632 Duct-Air Price: Call Us
