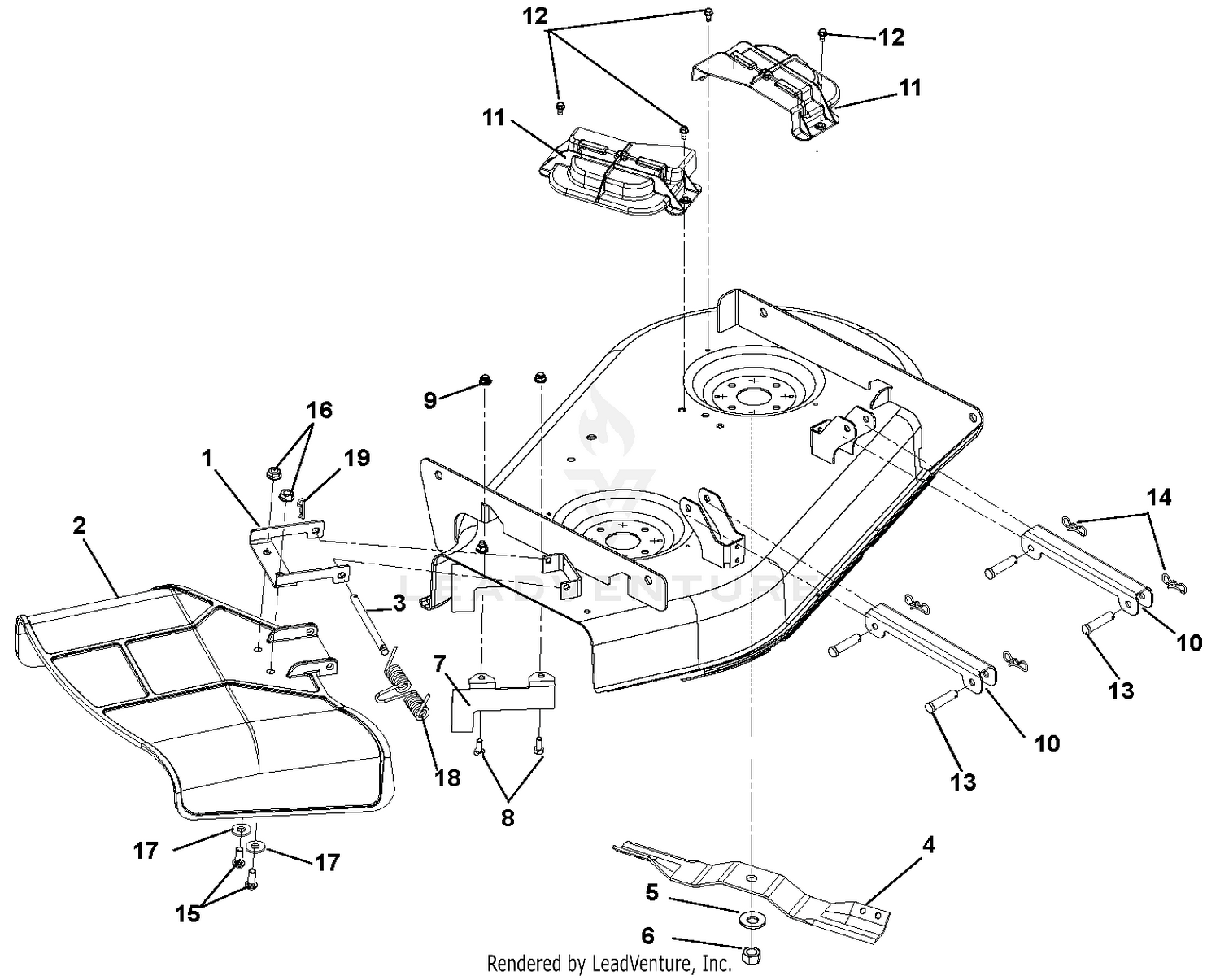

| Ref | Part Number | Description |
|---|
| 1 |
00662653 |
BRKT, CHUTE REINFORCEMENT Price: Call Us |
| 2 |
03994300 |
CHUTE, SIDE DISCHARGE Price: $50.95 |
| 3 |
06800002 |
PIN, 5/16 X 3.88" Price: $8.45 |
| 4 |
03971900 |
BLADE, MOWER 17.35 Price: $20.95 |
| 5 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 6 |
06500920 |
NUT-STD .625-18 ZCC This part replaces 06500630. Price: $1.95 |
| 7 |
03779253 |
BRKT-BAFFLE, DISCHARGE 34" Price: $17.45 |
| 8 |
05901704 |
BLT-HEX .31-18X.75 G5 ZCC This part replaces 05947000. Price: $1.45 |
| 9 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 10 |
03764053 |
BRKT-STABILIZER LINK Price: $40.95 |
| 11 |
04323800 |
COVER-BELT, MOLDED Price: $20.45 |
| 12 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45 |
| 13 |
06800102 |
PIN-CLEV .375 X 2.00 YWZC Price: Call Us |
| 14 |
06700225 |
PIN This part replaces 06700206. Price: $3.95 |
| 15 |
05920900 |
SCR-SKH .31-18X.75 BTNHD YWZC Price: $3.95 |
| 16 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 17 |
06401023 |
WSHR-FLT .375X.875X.083 ZCC This part replaces 06435700. Price: $1.45 |
| 18 |
01258100 |
SPRING, TORSION Price: $8.45 |
