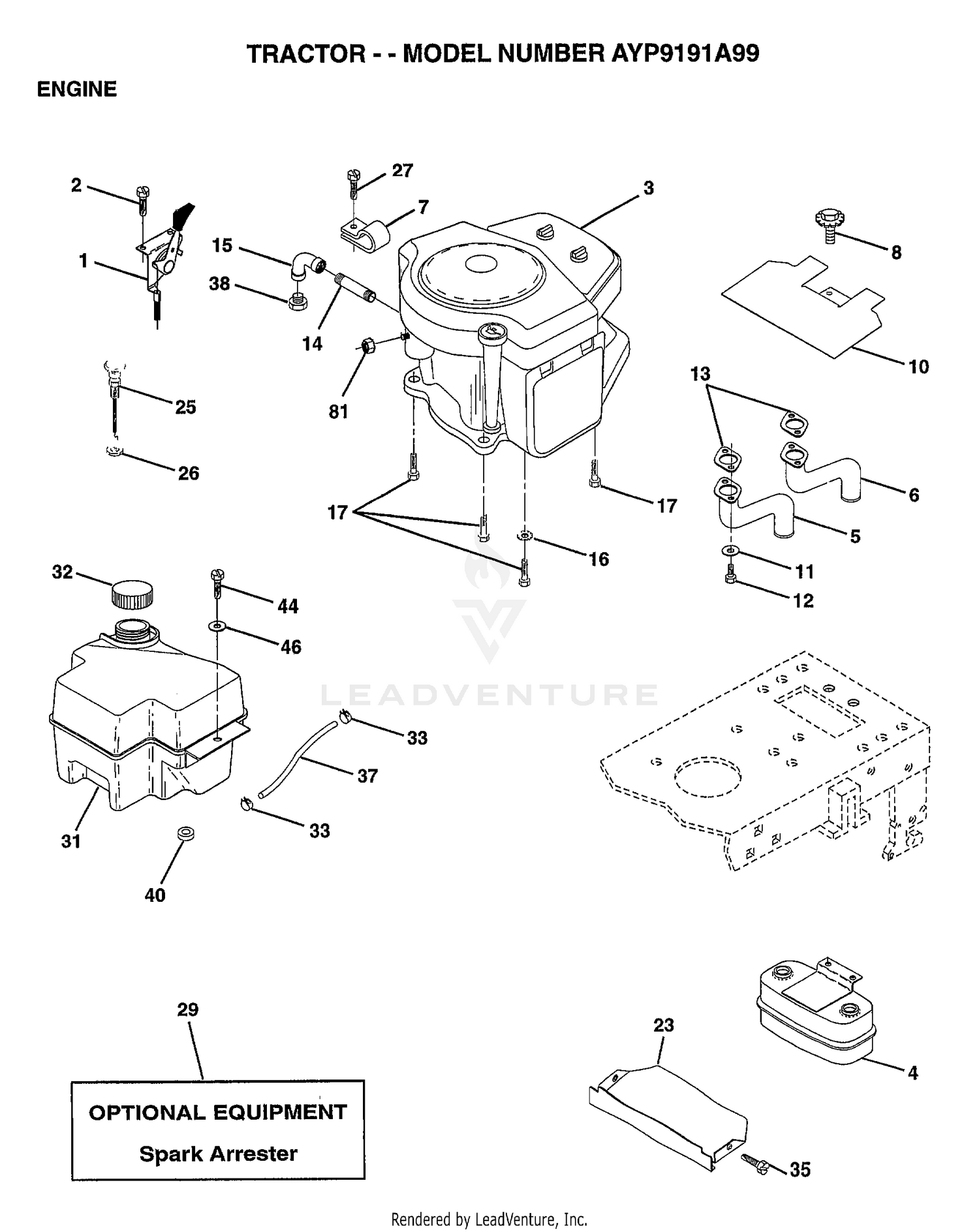

| Ref | Part Number | Description |
|---|
| 1 |
141295 |
CONTROL THRT 35.5 Price: Call Us |
| 1 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 2 |
68-5370 |
DECAL Price: $6.21 |
| 3 |
44-2210 |
LIGHT-INDICATOR, RED Price: $57.97 |
| 3 |
PARTS |
IMAGE REFER TO PARTS IMAGE Price: Call Us PARTS IMAGE |
| 3 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 4 |
149723 |
MUFFLER.TW.LOTONE Price: Call Us |
| 4 |
21-9260 |
COVER-DUST Price: $8.19 |
| 5 |
144069 |
EXHAUST.B&S.18.LH Price: Call Us |
| 5 |
233-17 |
KNOB Price: $10.58 |
| 6 |
144068 |
EXHAUST.B&S.18.RH Price: Call Us |
| 6 |
87-6620 |
SCREW Price: $1.29 |
| 7 |
138129 |
CLAMP.TUBE.DBL.EN Price: Call Us |
| 7 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 8 |
150176 |
BOLT.5/16-18.UNC Price: Call Us |
| 8 |
93-1263 |
DECAL-TOWER Price: $46.56 |
| 9 |
93-7998-03 |
PLATE-INSTRUMENT Price: $40.21 |
| 10 |
145552 |
SHIELD.HEAT. Price: Call Us |
| 10 |
95-1821 |
SPRING-COMPRESSION This part replaces 95-1821-03. Price: $6.71 |
| 11 |
10040400 |
LOCKWASHER Price: Call Us |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 12 |
74780412 |
SUB= 74780414 Price: Call Us |
| 13 |
104-1492 |
ROD ASM Price: $65.49 |
| 13 |
165287 |
GASKET MUFFLER Price: Call Us |
| 14 |
13280336 |
PIPE NIPPLE LT Price: Call Us |
| 14 |
75-6230 |
HOSE Price: $133.10 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
75-6240 |
HOSE Price: $137.49 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 17 |
63-7900-03 |
RACK Price: $144.55 |
| 18 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 19 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 20 |
75-5940 |
HOSE Price: $94.45 |
| 21 |
100-4872 |
PLATE-SWITCH, NEUTRAL Price: $11.84 |
| 22 |
75-6250 |
HOSE Price: $175.77 |
| 23 |
159880 |
SHIELD.BRN/DBR.GD Price: Call Us |
| 23 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 25 |
145996 |
CONTROL.CHOKE.37 Price: Call Us |
| 25 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 26 |
75-0600 |
UNIT-STEERING, POWER Price: $1,809.64 |
| 27 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 28 |
100-1270 |
SWITCH-PROXIMITY Price: $96.57 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 29 |
75-2810 |
BRACKET-COLUMN, STEERING Price: $11.01 |
| 31 |
161911 |
TANK.FUEL.FRONT. Price: Call Us |
| 31 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 32 |
104-1450 |
BOLT-CARR Price: $0.25 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
104-9324 |
SPEEDOMETER Price: $312.55 |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 34 |
104-2541 |
SWITCH ASM Price: $36.70 |
| 35 |
17490512 |
SCREW Price: Call Us |
| 35 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 38 |
SUPPLIER |
CHECK WITH SUPPLIER Price: Call Us |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
