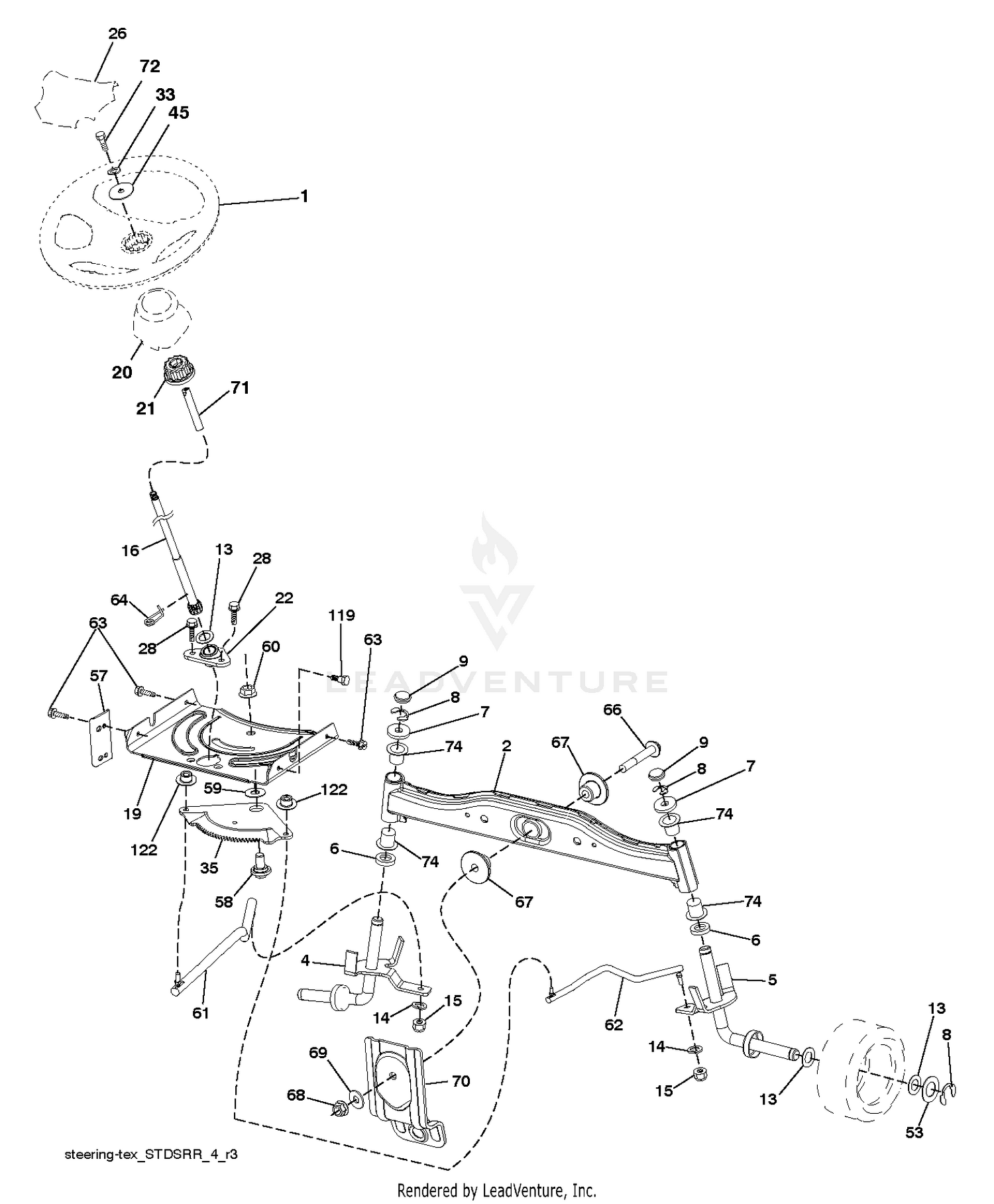

| Ref | Part Number | Description |
|---|
| 1 |
532424146 |
WHEEL.STEERING.STDSRR.BLK/OV Price: $56.99 |
| 2 |
532418168 |
AXLE HALF ASM-WELDED Price: $33.99 |
| 4 |
532416845 |
Price: $20.99 |
| 5 |
532416846 |
Price: $20.99 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $5.99 |
| 7 |
532121748 |
WASHER Price: $1.99 |
| 8 |
812000029 |
RING CLIP Price: $1.99 |
| 9 |
532121232 |
CAP.SPINDLE Price: $1.99 |
| 010 |
112-7018 |
VALVE-INLET This part replaces 98-9494. Price: $41.87 |
| 13 |
532121749 |
WASHER Price: $1.99 |
| 14 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $1.49 |
| 16 |
532429373 |
SHAFT.STEER.3/4.PLATED.TEX Price: $41.99 |
| 19 |
532194729 |
PLATE.STEER.DDL.NLT/NG Price: $12.99 |
| 020 |
120-2564 |
VALVE-EXHAUST This part replaces 98-9495. Price: $34.21 |
| 20 |
532409763 |
BOOT.STEERING.PREDATOR.LT.BLAC Price: $4.99 |
| 21 |
532437747 |
STEERING.WHEEL.ADAPTER This part replaces 532186737. Price: $19.99 |
| 22 |
532420537 |
STEERING.SUPT.LOWER. Price: $4.99 |
| 26 |
532424147 |
CAP.WHL.STRNG.STDSRRD.SRS.BLK Price: $4.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 030 |
98-9648 |
SPRING-VALVE Price: $13.49 |
| 33 |
810040500 |
LOCKWASHER Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $19.99 |
| 040 |
107-9092 |
RETAINER-SPRING This part replaces 98-9498. Price: $2.58 |
| 45 |
819113812 |
WASHER.11/32 Price: $3.99 |
| 050 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 53 |
532188967 |
WASHER.HARDENED Price: $2.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $2.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $4.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $3.99 |
| 060 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 60 |
873971000 |
NUT FLANGE LOCK 5/8-11 Price: $2.99 |
| 61 |
532194740 |
DRAGLINK.LH.BALLSTUD.D Price: $40.99 |
| 62 |
532194741 |
DRAGLINK.RH.BALLSTUD.D Price: $40.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $2.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $2.99 |
| 67 |
532194737 |
BUSHING.PM.FRONT AXLE Price: $3.69 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $2.99 |
| 070 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 70 |
532417065 |
Price: $5.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $9.99 |
| 72 |
532428982 |
BOLT 5/16-18 X 4 W/PATCH Price: $2.99 |
| 74 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $1.99 |
| 080 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 090 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
98-7602 |
PIN-SPRING Price: $0.64 |
| 119 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $2.99 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
98-9501 |
ROCKER ARM ASM Price: $28.78 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
