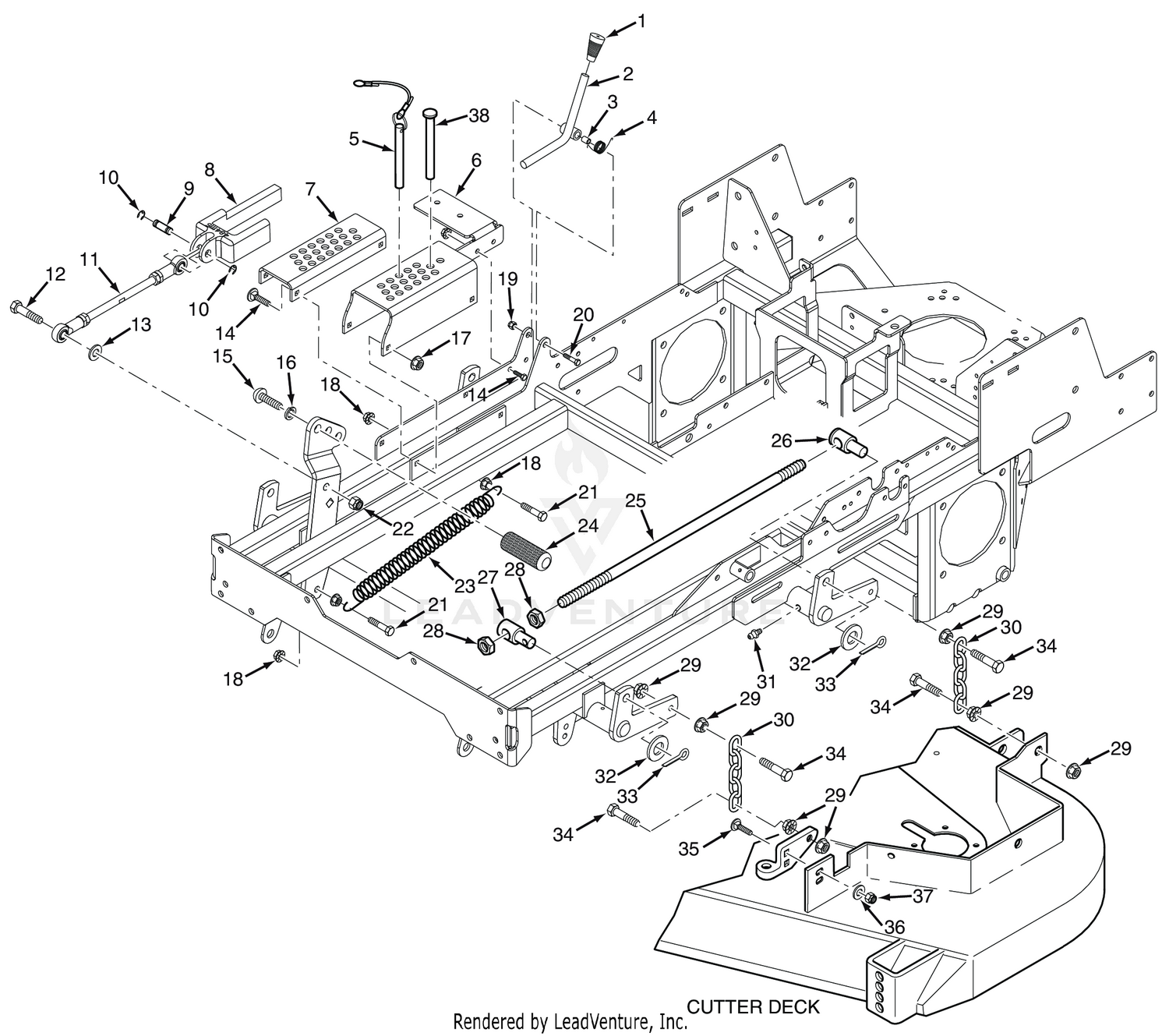

| Ref | Part Number | Description |
|---|
| 1 |
481477 |
Mounting Bracket, Fuel Tank Price: Call Us |
| 2 |
462253 |
Deck Latch Assembly w/Grip Price: Call Us |
| 3 |
43668 |
Bushing, .502 O.D. Price: Call Us |
| 4 |
484191 |
Spring, Torsion - Lever Return Price: Call Us |
| 5 |
483345 |
Lanyard, Deck Height Pin Assembly Price: Call Us |
| 6 |
425574 |
Adjustment Bracket, Upper Cut Height Price: Call Us |
| 7 |
452408 |
Adjustment Bracket, Lower Cut Height Price: Call Us |
| 8 |
485570 |
Slide, Height Adjustment Price: Call Us |
| 9 |
43487 |
Pin, Deck Lift Price: Call Us |
| 10 |
04050-10 |
Retaining Ring, 1/2" External "E" Price: Call Us |
| 11 |
04020-27 |
Nut, 1/2-20 UNF-2B RH Thread Price: Call Us |
| 11 |
04020-28 |
Bolt, Hex Hd. 5/16-18 x 3-3/4" Price: Call Us |
| 11 |
481765 |
Rod End, 1/2-20 Female RH Thread Price: Call Us |
| 11 |
481766 |
Rod End, 1/2-20 Female LH Thread Price: Call Us |
| 11 |
484141 |
Linkage, Deck Lift Price: Call Us |
| 12 |
04001-72 |
Hex Head Bolt, 1/2-13 x 2" Price: Call Us |
| 13 |
04040-07 |
Flatwasher, 1/2 - .531 x 1.062 x .095 Price: Call Us |
| 14 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 14 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 15 |
04108-04 |
Capscrew, 5/8-11 x 1-1/2" This part replaces 04105-01. Price: Call Us |
| 16 |
04030-07 |
Lockwasher, 5/8" Spring Price: Call Us |
| 17 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 18 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 19 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 20 |
04001-22 |
Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 21 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 22 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 23 |
481598 |
Spring, Helper (61" & 72" Cutter Decks Only) Price: Call Us |
| 24 |
424504 |
Foot Pedal, Height Adjustment Price: Call Us |
| 25 |
04004-44 |
Stud, 5/8-11 x 22.0" Price: Call Us |
| 26 |
43526 |
Swivel Joint, LH Price: Call Us |
| 27 |
43527 |
Swivel Joint, RH Price: Call Us |
| 28 |
04020-09 |
Hex Locknut, Elastic Stop, 3/8-16 Price: Call Us |
| 29 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 30 |
482628 |
Chain, Deck Lift Price: Call Us |
| 31 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 32 |
04040-09 |
Flatwasher, 5/8" (.656 x 1.312 x .095") Price: Call Us |
| 33 |
04061-07 |
Pin, Cotter 3/16 x 1.0" Price: Call Us |
| 34 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 35 |
04003-40 |
Bolt, Carriage 7/16-14 x 1-1/4" Price: Call Us |
| 36 |
04040-11 |
Flatwasher, 7/16" (.500 x 1.25 x .083") Price: Call Us |
| 37 |
04021-11 |
HEX LOCKNUT, ELASTIC STOP, 7/16-14 Price: Call Us |
