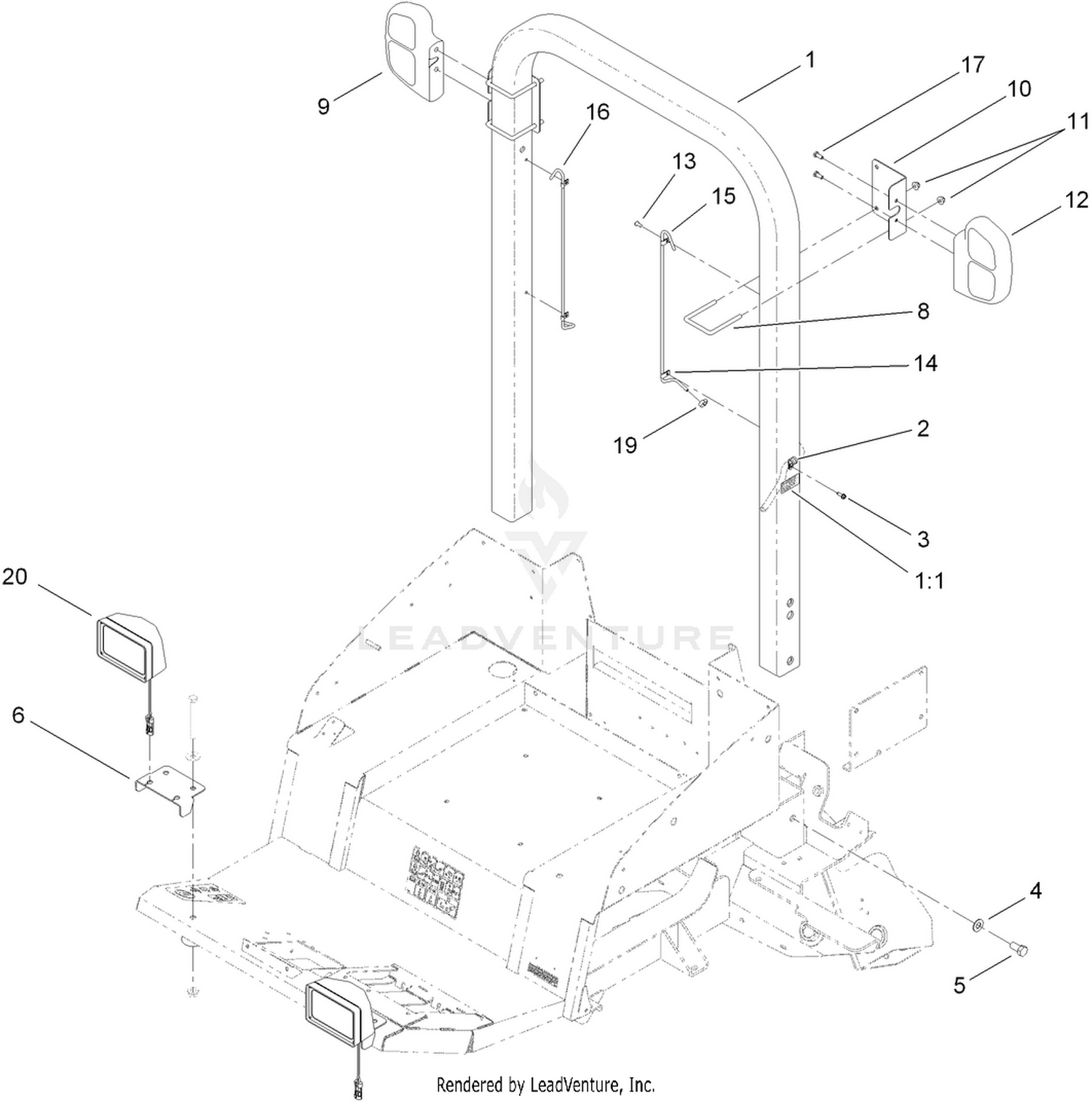

| Ref | Part Number | Description |
|---|
| 1 |
114-5505 |
ROPS ASM Price: $2,058.62 |
| 2 |
2412-134 |
CLAMP-R Price: $5.79 |
| 3 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 4 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 5 |
327-3 |
SCREW-HH Price: $1.49 |
| 6 |
125-5305-01 |
BRACKET-HEADLIGHT This part replaces 114-5600-01. Price: $18.23 |
| 8 |
100-7067 |
U-BOLT (4 INCH) Price: $6.51 |
| 9 |
108-8007 |
TAIL LIGHT FLASHER ASM Price: $277.46 |
| 10 |
139-7767-03 |
MOUNT-FLASHER This part replaces 114-5601-03. Price: $31.07 |
| 11 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 12 |
108-8008 |
TAIL LIGHT FLASHER ASM Price: $277.46 |
| 13 |
3290-412 |
RIVET-BLIND Price: $3.19 |
| 14 |
2412-72 |
CLIP-CLOSED, INSULATED Price: $1.90 |
| 15 |
114-0937 |
TUBE-VENT Price: $45.03 |
| 16 |
114-0938 |
TUBE-VENT Price: $43.24 |
| 17 |
33114-020 |
SCREW-HH Price: $0.28 |
| 19 |
2412-108 |
CLAMP-WORM Price: $1.29 |
