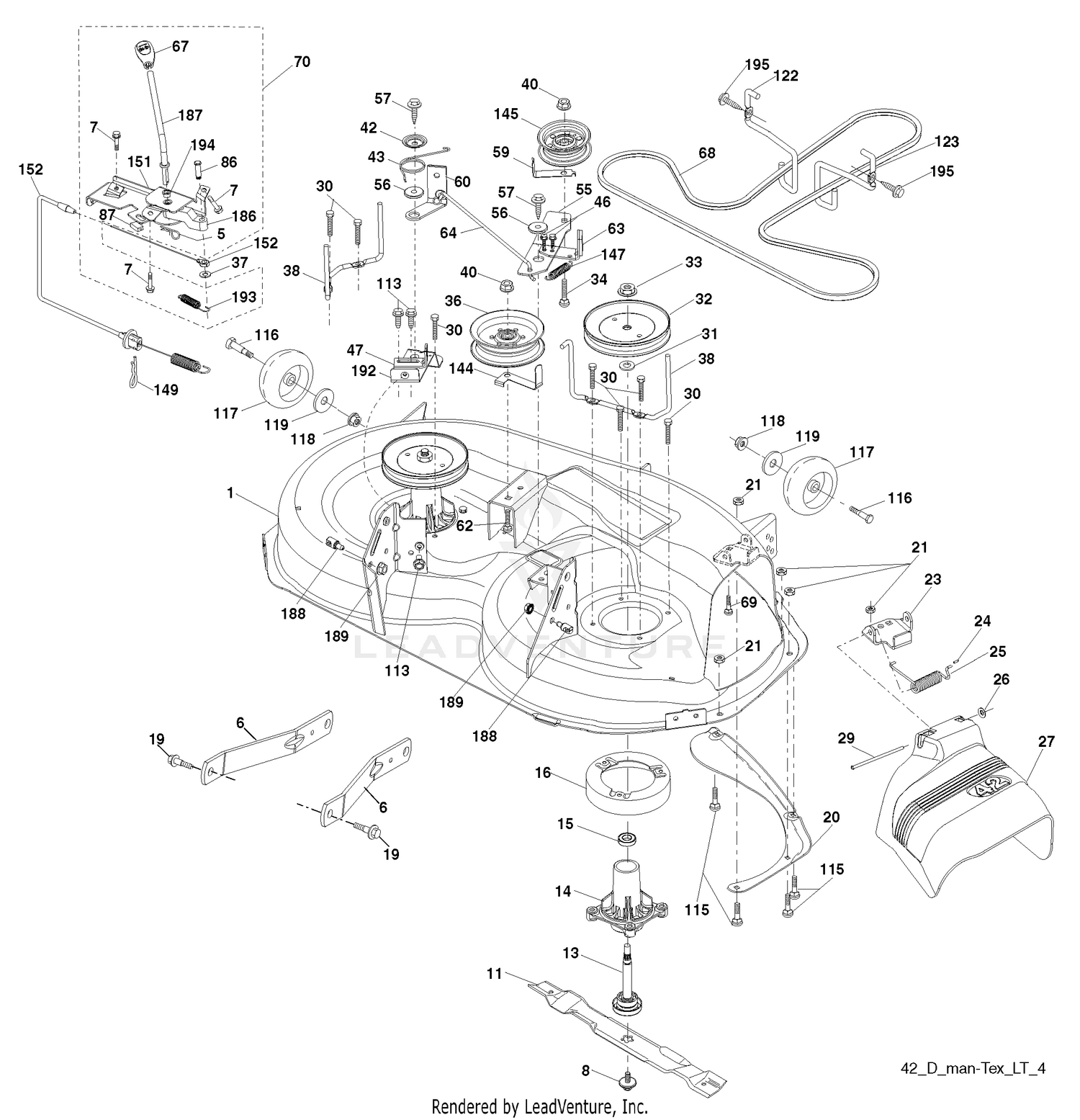

| Ref | Part Number | Description |
|---|
| 1 |
196495X421 |
Deck Weldment Mower Price: Call Us |
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 2 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 3 |
94-8146 |
STRIP-FOAM Price: $8.78 |
| 4 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 5 |
32128-25 |
NUT-HF Price: $3.19 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
195186 |
Arm Suspension Price: Call Us |
| 6 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 7 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 7 |
233-42 |
KNOB Price: $12.88 |
| 8 |
193003 |
Bolt/Washer asm 7/16-20 unf Price: Call Us |
| 8 |
93-7598 |
LEVER-THROTTLE This part replaces 93-7598-03. Price: $39.13 |
| 9 |
3296-21 |
NUT-HEX Price: $0.22 |
| 10 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 11 |
134149 |
Blade, 42" Mulching Std (For mulching mowers only) Price: Call Us |
| 11 |
138971 |
Blade, 42" Hi-Lift (For bagging or discharge) Price: Call Us |
| 11 |
139775 |
Blade, 42" Mulching Premium (For better wear when mulching) Shaft Assembly, Mandrel Price: Call Us |
| 11 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 13 |
192872 |
Shaft Assembly, Mandrel Price: Call Us |
| 13 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 14 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 16 |
2411-38 |
JOINT-BALL Price: $21.96 |
| 17 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 18 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 19 |
196539 |
Bolt, Shoulder Price: Call Us |
| 19 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 20 |
159770 |
Baffl e, Vortex Price: Call Us |
| 20 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 21 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 22 |
104-7547 |
CABLE-THROTTLE Price: $141.29 |
| 23 |
105-3929-03 |
BRACKET-CABLE, THROTTLE Price: $24.03 |
| 23 |
192557 |
Bracket, Defl ector Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 25 |
105-9824 |
DECAL-QUICK REFERENCE Price: $30.18 |
| 25 |
197026 |
Spring, Torsion, Defl ector Price: Call Us |
| 26 |
105-9189 |
HARNESS-WIRE, SEAT SWITCH Price: $55.42 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 27 |
193108X428 |
Shield, Defl ector Price: Call Us |
| 27 |
2412-133 |
CLAMP-R Price: $3.19 |
| 28 |
100-4928 |
BELT-SEAT Price: $280.73 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
2412-93 |
CLAMP-R Price: $1.02 |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 30 |
3212-4 |
SCREW-HH Price: $2.73 |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 31 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 32 |
195945 |
Pulley, Mandrel Price: Call Us |
| 32 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 33 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 33 |
400234 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 36 |
196106 |
Pulley, Idler, Flat Price: Call Us |
| 37 |
19131316 |
Washer Price: Call Us |
| 38 |
199189 |
Keeper Belt LH Mandrel Price: Call Us |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 42 |
198410 |
Spring Torsion Brake Price: Call Us |
| 43 |
197256 |
Spring Torsion Retainer Price: Call Us |
| 46 |
137729 |
Screw Thd Roll 1/4-20 x 5/8 Price: Call Us |
| 47 |
197250 |
Bracket Clutch Cable Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
197249 |
Arm, Idler Price: Call Us |
| 56 |
199092 |
Spacer, Retainer Price: Call Us |
| 57 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 59 |
141043 |
Guard, Tuv Idler Price: Call Us |
| 60 |
197402 |
Arm Brake Mower Price: Call Us |
| 62 |
72110616 |
Bolt Rd Hd Sq Nk 3/8-16 unc x 2 Price: Call Us |
| 63 |
199478 |
Arm Brake Mower Price: Call Us |
| 64 |
199918 |
Link Brake Asm Price: Call Us |
| 65 |
199092 |
Spacer Retainer Price: Call Us |
| 67 |
198398X428 |
Handle Clutch Cable Price: Call Us |
| 68 |
197253 |
V-Belt Price: Call Us |
| 69 |
72140505 |
Bolt Price: Call Us |
| 70 |
199779 |
Clutch Asm Manual Price: Call Us |
| 86 |
197798 |
Pin Attachment Cable Price: Call Us |
| 87 |
197802 |
Switch Interlock Clutch Cable Price: Call Us |
| 88 |
193232 |
Screw 10-24 x 5/8 Price: Call Us |
| 113 |
17000510 |
Bolt 5/16-18 Price: Call Us |
| 115 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut, Crownlock 3/8-1 Price: Call Us |
| 119 |
19121414 |
Washer 13/32 x 7/8 x 14 Ga. Price: Call Us |
| 122 |
197258 |
Keeper Belt Engine LH Price: Call Us |
| 123 |
197259 |
Keeper Belt Engine RH Price: Call Us |
| 144 |
199204 |
Keeper Belt Price: Call Us |
| 145 |
177968 |
Pulley Idler Price: Call Us |
| 147 |
401971 |
Spring Return Price: Call Us |
| 149 |
165898 |
Retainer Spring Price: Call Us |
| 151 |
199778 |
Bracket Clutch Price: Call Us |
| 152 |
197257 |
Manual Clutch Cable Price: Call Us |
| 186 |
197799 |
Arm Actuator Price: Call Us |
| 187 |
400426 |
Lever Control Price: Call Us |
| 188 |
195161 |
Stud Fastener Price: Call Us |
| 189 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 192 |
197260 |
Bracket Brake Stand LH Price: Call Us |
| 193 |
197801 |
Spring Plunger Activator Price: Call Us |
| 194 |
197797 |
Bearing Control Lever Clutch Price: Call Us |
| 195 |
17000612 |
Screw Hex Wsh THDR 3/8-16 x 3/4 Price: Call Us |
