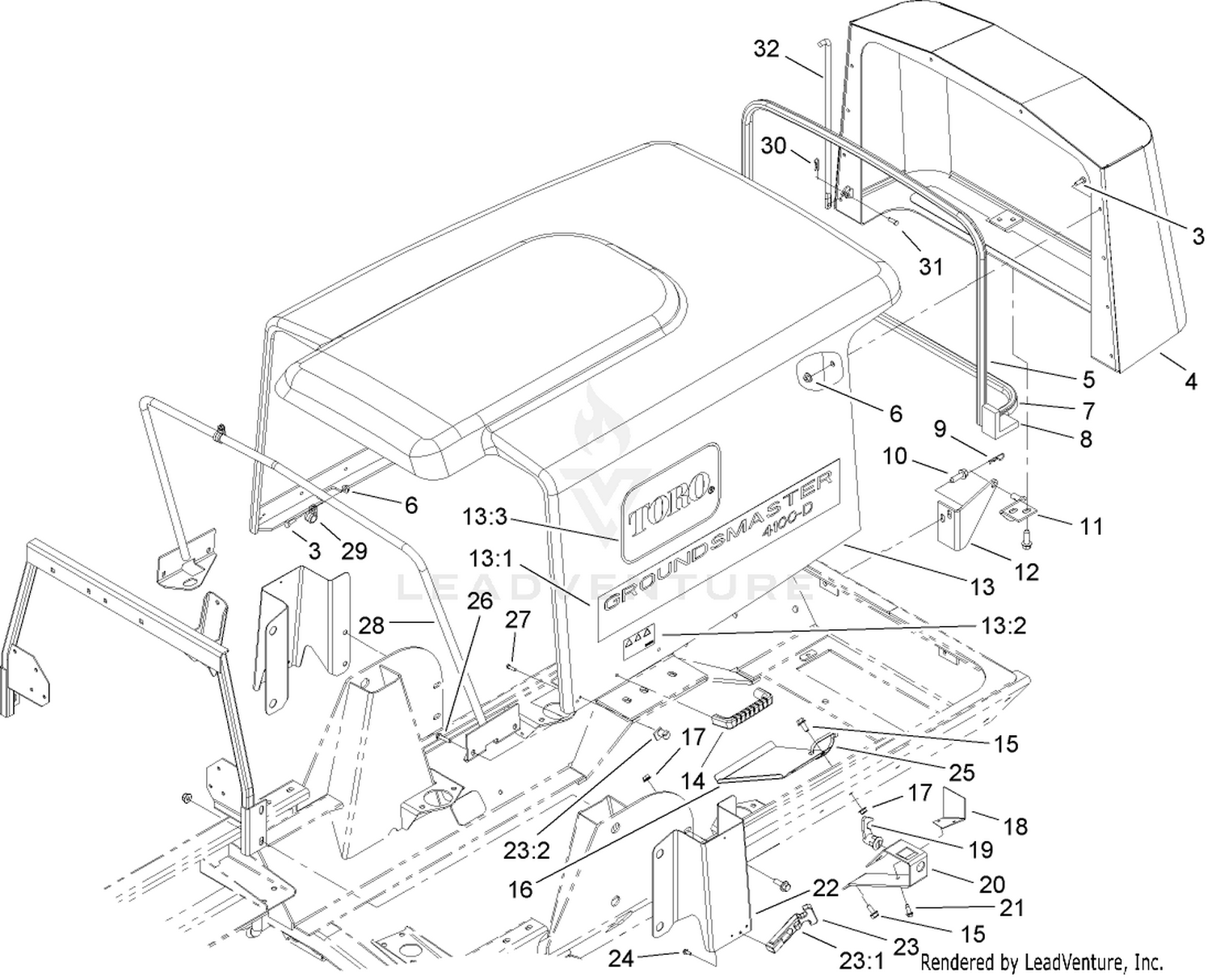

Hood Assembly — Parts Catalog

Ref	Part Number	Description
3	321-4	SCREW-HH Price: $0.99
4	100-5506-03	SCREEN ASM Price: $1,590.41
5	104-2225	SEAL-BULB Price: $60.59
6	32128-33	NUT-HF Price: $0.25
7	104-3590	SEAL-BULB Price: $37.82
8	104-3580	SEAL-CORNER, SCREEN Price: $32.63
9	3290-467	PIN-HAIR Price: $0.27
10	32144-109	SCREW-THD Price: $1.29
11	104-3589	PIVOT-SCREEN Price: $79.95
12	104-3588-03	PIVOT-SCREEN Price: $32.46
13	105-7359	HOOD ASM Price: $1,680.24
14	65-5100	HANDLE-DOOR Price: $9.05
15	3234-5	SCREW-HHF Price: $0.42
16	104-3560-03	DEFLECTOR-FILTER, OIL Price: $45.90
17	32128-20	NUT-HF Price: $0.99
18	105-4531	COVER-LATCH Price: $32.23
19	98-5398	LATCH Price: $32.53
20	104-3591-03	BRACKET-LATCH, HOOD Price: $50.28
21	32104-95	SCREW-HWH Price: $0.41
22	105-7466-03	BRACKET-LATCH, RH Price: $53.01
22	105-7467-03	BRACKET-LATCH, LH Price: $53.01
23	94-5626	FLEXIBLE DRAW LATCH ASM Price: $42.59
24	32144-1	SCREW-TAPTITE Price: $3.19
25	3290-378	TIE-CABLE Price: $0.79
26	137-3101	SCREW-PLASTIC, HWH This part replaces 46-8092. Price: $0.59
27	32104-4	SCREW Price: $0.47
28	104-3505-03	SUPPORT-HOOD Price: $120.77
29	2412-134	CLAMP-R Price: $5.79
30	1-806003	PIN-COTTER This part replaces 3290-307. Price: $1.39
31	283-67	PIN-CLEVIS Price: $2.04
