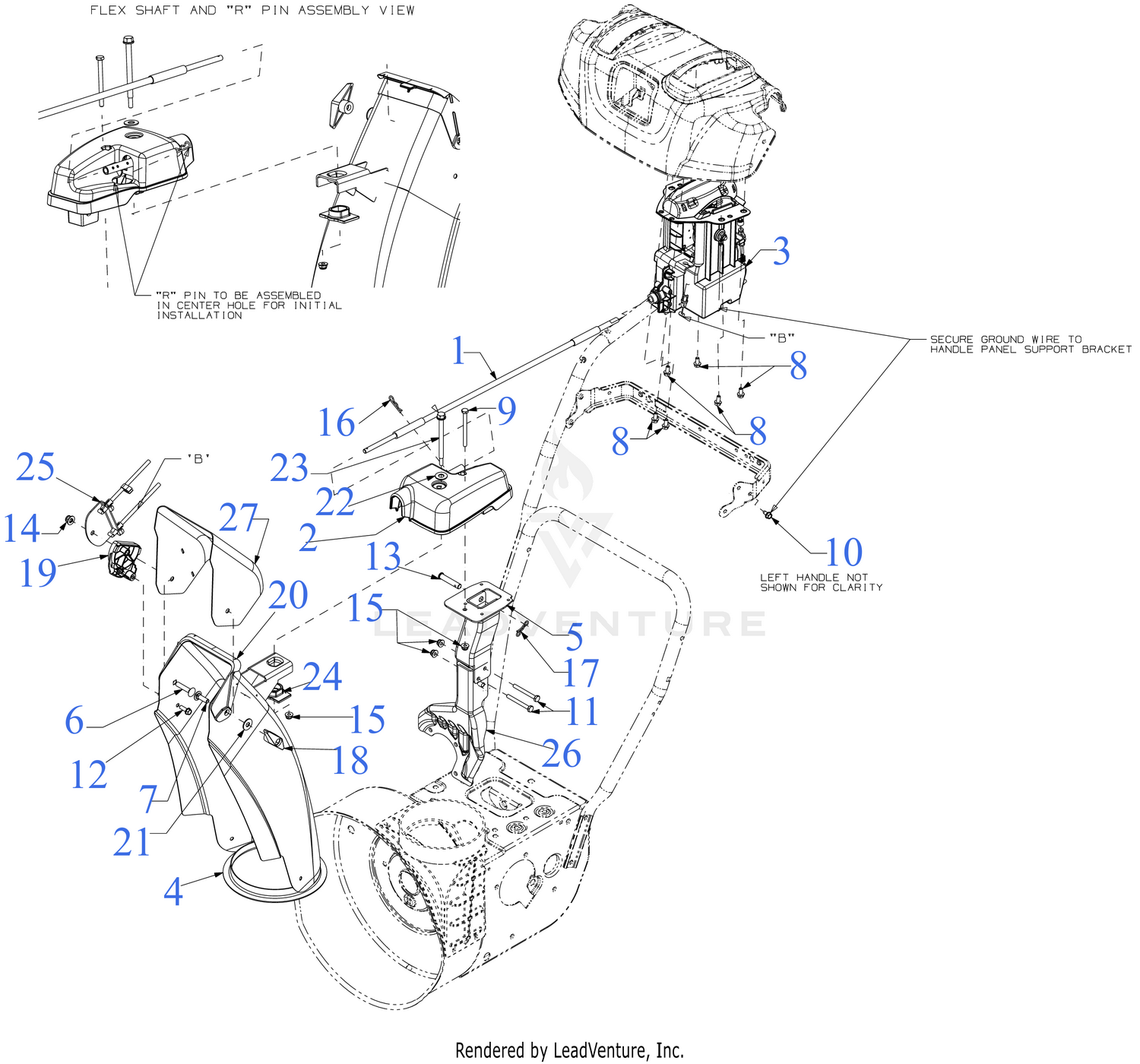

| Ref | Part Number | Description |
|---|
| 1 |
911-05146 |
ELECTRIC 4-WAY CHUTE CONTROL SHAFT Price: $157.00 |
| 6 |
710-0262 |
CARRIAGE BOLT 5/16-18 x 1.50 Price: $3.66 |
| 7 |
710-0276 |
CARRIAGE BOLT 5/16-18 x 1.00 Price: $3.68 |
| 8 |
710-04187A |
HEX SCREW 1/4-15 x .50 Price: $5.99 |
| 9 |
710-04370 |
SCREW 1/4-20 x 3.0 GR5 Price: $3.66 |
| 10 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 11 |
710-0641 |
SCREW 1/4-20 x 2.25 GR5 Price: $3.66 |
| 12 |
710-0895 |
SCREW 1/4-15 x .750 Price: $5.82 |
| 13 |
711-04469A |
CLEVIS PIN 3/8 x 1.87 Price: $5.15 |
| 14 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 15 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 16 |
714-0101 |
INTERNAL COTTER PIN Price: $4.13 |
| 17 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 18 |
712-0429 |
HEX NUT Price: $3.56 |
| 18 |
720-0284 |
Knob This part replaces 920-0284. Price: $4.08 |
| 18 |
720-04072A |
STAR KNOB 5/16-18 Price: $6.07 |
| 19 |
731-09535 |
CHUTE TILT GUIDE Price: $7.44 |
| 20 |
731-09539A |
UPPER CHUTE ADAPTER Price: $22.36 |
| 21 |
736-0159 |
FLAT WASHER Price: $3.71 |
| 23 |
738-04367 |
SHOULDER SCREW Price: $4.36 |
| 24 |
748-05057 |
HELICAL GEAR CHUTE ADAPTER Price: $10.13 |
