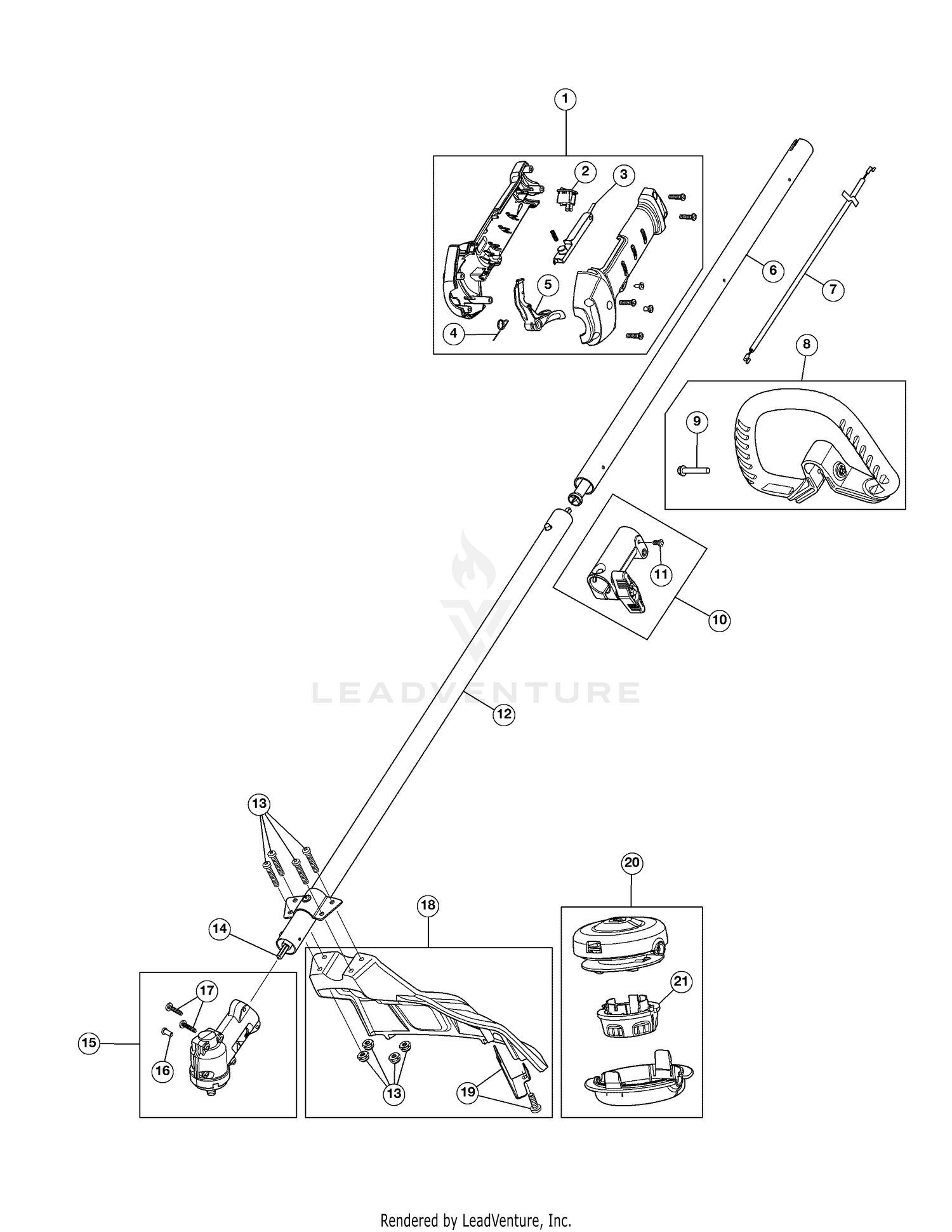

| Ref | Part Number | Description |
|---|
| 1 |
753-06887 |
THROTTLE GRIP ASSEMBLY Not Available Price: |
| 2 |
791-182405 |
Trigger Switch Assembly Price: $9.29 |
| 3 |
731-04971B-10 |
LOCK OUT LEVER This part replaces 731-04971C-10. Price: $4.40 |
| 4 |
753-05007 |
TRIGGER SPRING Price: $4.42 |
| 5 |
753-08564 |
Throttle Housing Assembly (Incl. 2 - 5) This part replaces 753-06888. Price: $21.00 |
| 6 |
753-08340 |
Upper Drive Shaft Assembly Price: $15.25 |
| 7 |
946-05051A |
THROTTLE CABLE Not Available Price: |
| 8 |
753-06889 |
D-Handle Assembly (Incl. 9) Price: $8.14 |
| 9 |
753-06040 |
Bolt Price: $6.01 |
| 10 |
753-06886 |
Split Boom Coupler (Incl. 11) Price: $9.20 |
| 11 |
7682 |
Coupler Anti-Rotation Screw Not Available Price: |
| 12 |
753-08339 |
Lower Drive Shaft Housing Assembly Price: $16.86 |
| 13 |
753-06125 |
Shield Mounting Screws and Nuts Price: $5.94 |
| 14 |
753-05267 |
LOWER DRIVE SHAFT Price: $37.46 |
| 15 |
753-08180 |
Gearbox Assembly (Incl. 16 - 17) Price: $40.11 |
| 16 |
791-182519 |
Gearbox Anti-Rotation Screw Price: $4.37 |
| 17 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 18 |
753-05820 |
Shield Assembly (Incl. 19) Price: $21.37 |
| 19 |
753-05821 |
Blade Assembly Price: $8.03 |
| 20 |
841-032392S |
Cutting Head Assembly This part replaces 841-031656S. Price: $20.60 |
| 21 |
753-08163 |
Bump Knob Price: $2.83 |
