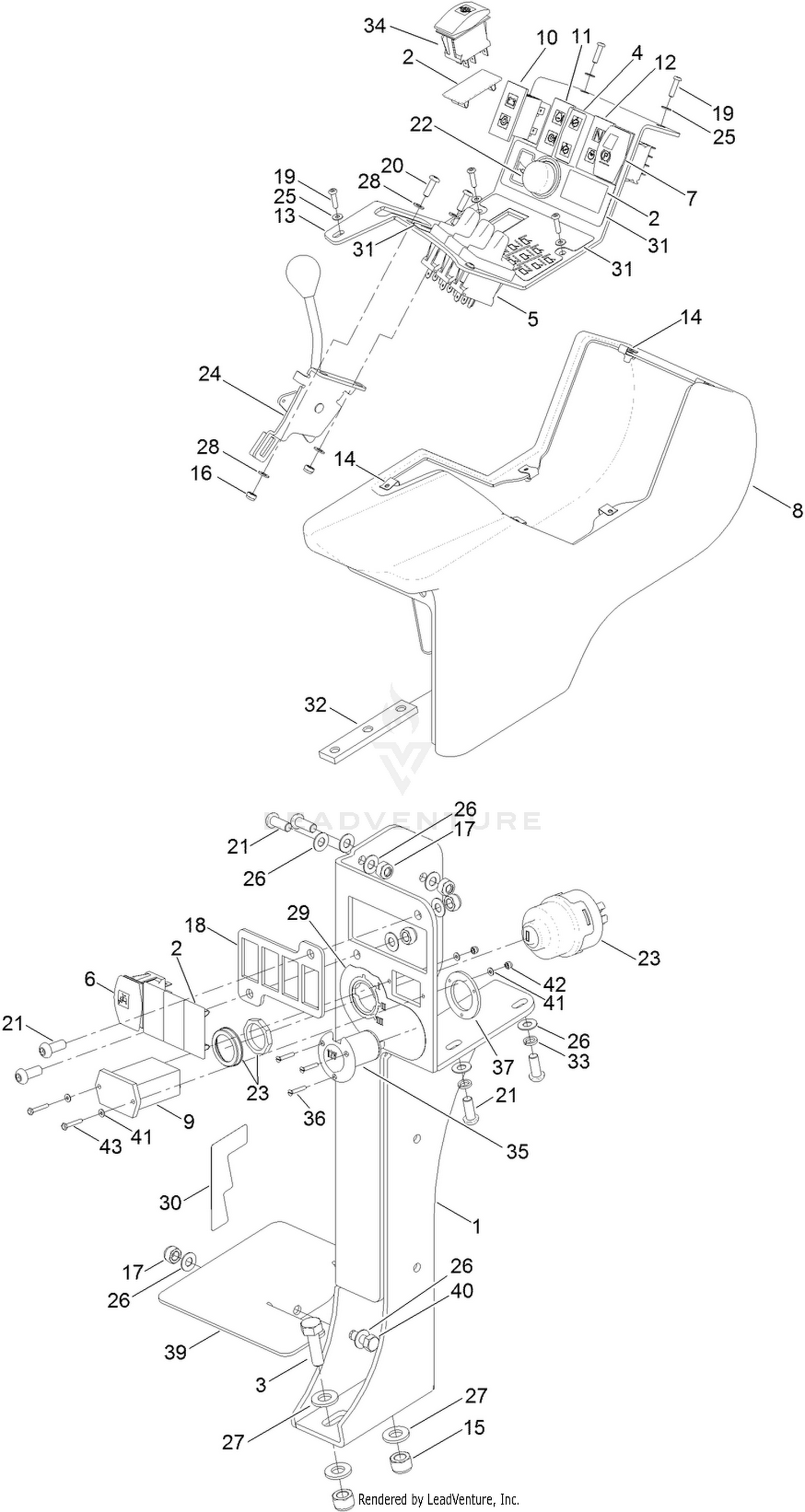

Control Panel Assembly — Parts Catalog

Parts (42)

Ref	Part Number	Description
1	111-8496-03	CONTROL ARM ASM Price: Call Us
2	111-2337	BLANK - CARLING SWITCH Price: $2.75
3	09394	BOLT M10 X 35 Price: $1.40
4	111-2253	CARLING SWITCH - CUTTERS Price: $48.69
5	111-2956	CARLING SWITCH - LIFT Price: $28.17
6	111-2451	CARLING SWITCH - LIMITED LIFT REVERSE Price: $41.71
7	111-2254	CARLING SWITCH - PARK BRAKE Price: $47.20
8	111-3004	CONTROL POD Price: $220.01
9	120-2244	HOURMETER This part replaces 75-6820. Price: $48.06
10	111-2333	ILLUMINATED INDICATOR Price: $25.04
11	111-2334	ILLUMINATED INDICATOR Price: $25.04
12	111-3026	INDICATOR-ILLUMINATED Price: $25.04
13	111-2963-03	INSTRUMENT PANEL Price: $69.15
14	111-3079	M4 U NUT Price: $1.42
15	09447	NUT M10 X 1.5 NYL INS Price: $1.40
16	09430	NUT M5 NYL INS T TYPE Price: $1.25
17	09441	NUT M8 NYL INSERT T TYPE Price: $1.39
18	111-8494-03	PLATE-SWITCH Price: Call Us
19	111-3473	SCREW M4 X 16MM BUTTON HEAD Price: $1.42
20	111-3381	SCREW SOC HD BUTTON M5X16 Price: $1.35
21	ZHS1H020U	SOC.BUTTON SCW.M8*20 Z&P Price: $1.36
22	924618	SWITCH-HORN, PUSH Price: $37.21
23	74-09-009	IGNITION SWITCH Price: $163.43
24	111-7090	CABLE-THROTTLE Price: $111.28
25	09658	WASHER M4 X 9 X 0.8 Z/P Price: $1.40
26	09475	WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
27	HY09485	WASHER M12 PLAIN Price: $1.40
28	09470	WASHER M5 X 10 X 1 ZN & PASS Price: $1.25
29	111-3344	DECAL - IGNITION SWITCH Price: $24.37
30	111-3658	CUTTERHEAD LATCH DECAL Price: $23.54
31	111-3277	DECAL Price: $26.87
32	111-3281	NUT BAR Price: $18.16
33	03469	WASHER M8 SC SPRING Price: $1.40
34	111-8021	SWITCH-LOCK Price: $44.64
35	111-2888	SOCKET 12V Price: $24.37
36	111-3539	CSK SLOT SCREW M3 X 20 Price: $1.35
37	111-6026	BRACKET-SECURING Price: $16.46
39	111-5239-03	PLATE-FILLER Price: $11.73
40	09368	SCREW Price: $1.40
41	HY09697	WASHER M3 PLAIN Price: $1.36
42	HY09698	NUT M3 NYLOC Price: $1.36
43	09696	SETSCREW Price: $1.40
