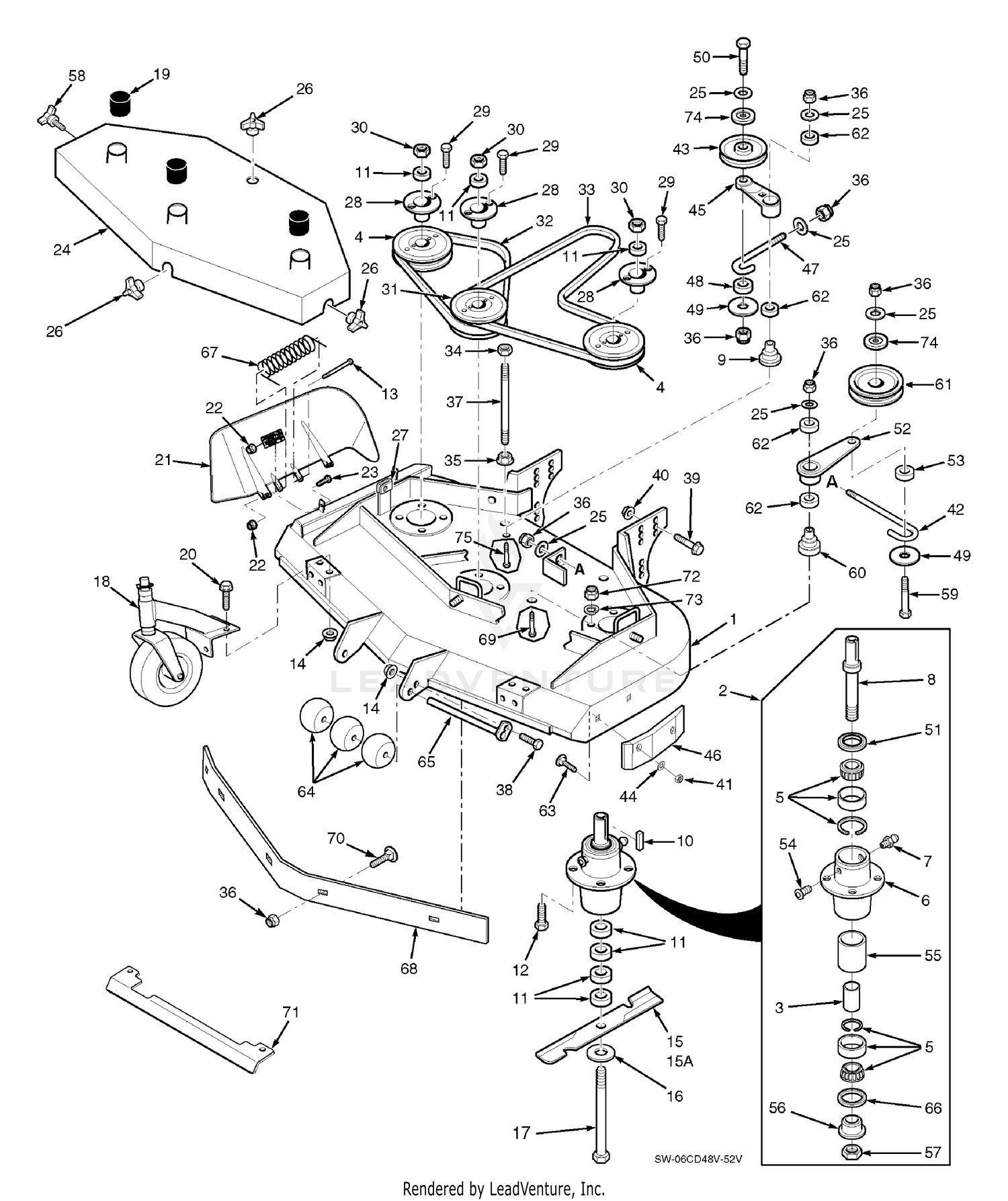

| Ref | Part Number | Description |
|---|
| 2 |
461663 |
Spindle Assembly Price: Call Us |
| 3 |
43296 |
Spacer, Inside Price: Call Us |
| 4 |
482744 |
Pulley Price: Call Us |
| 5 |
481022 |
Tapered Bearing (Two) Price: Call Us |
| 6 |
43644 |
Spindle Housing Price: Call Us |
| 7 |
48114-04 |
Grease Fitting Str. 5/16" Price: Call Us |
| 8 |
43589 |
Spindle Shaft, Tapered Brng Price: Call Us |
| 9 |
43682 |
Idler Pivot Price: Call Us |
| 10 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 11 |
43592 |
Spacer, Cutter Blade - Small Price: Call Us |
| 12 |
04001-175 |
Bolt, 5/16-18 x 1-1/2" Hex Head GR-8 Price: Call Us |
| 13 |
04001-154 |
Bolt, 5/16-18 x 4-3/4" Hex Head Price: Call Us |
| 14 |
04019-03 |
Serrated Flange Nut, 5/16-18 Price: Call Us |
| 15 |
481707 |
Cutter Blade 18" Marbain Price: Call Us |
| 15A |
481711 |
Cutter Blade 18 High Lift Marbain Price: Call Us |
| 16 |
04043-06 |
Flatwasher,5/8" (.688 x 1.75 x .134) Price: Call Us |
| 17 |
04001-41 |
Hex Head Bolt, 5/8-11 x 9-1/2" Price: Call Us |
| 18 |
461023 |
Caster Assembly Price: Call Us |
| 19 |
48098 |
Spindle Shield Price: Call Us |
| 20 |
04017-16 |
Capscrew, 5/16-18 x 3/4" Price: Call Us |
| 22 |
04021-10 |
Nut, 5/16-18 Elastic Elastic Stop Price: Call Us |
| 23 |
04001-11 |
Bolt, 5/16-18 x 1-1/2" Hex Head Price: Call Us |
| 25 |
04043-04 |
Flat Washer, 3/8" Special Price: Call Us |
| 26 |
04029-03 |
Wing Nut, 3/8-16 (Large) Price: Call Us |
| 27 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 28 |
48926 |
Tapered Hub Price: Call Us |
| 29 |
04001-172 |
Bolt, 1/4-20 x 1" Hex Head Grade 8 Price: Call Us |
| 30 |
04020-09 |
Nut, 5/8-11 Hex Price: Call Us |
| 31 |
48923 |
Pulley, 5 75 Double Grove This part replaces 482748. Price: Call Us |
| 34 |
04021-05 |
Nut, 3/8-16, Nut Centerlock Price: Call Us |
| 35 |
04019-04 |
Nut, 3/8-16, Serrated Flange Price: Call Us |
| 36 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 37 |
04004-02 |
Support, Belt Cover Price: Call Us |
| 38 |
04001-09 |
Bolt, 5/16-18 x 1" Hex Head Price: Call Us |
| 39 |
04017-36 |
Cpscrw, 1/2-13 x 1" Ser.Flg. HH Price: Call Us |
| 40 |
04112-05 |
Nut, 1/2-13 Spiralock Price: Call Us |
| 41 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 43 |
48181 |
Idler Pulley, "V" Groove Price: Call Us |
| 44 |
04040-04 |
Flatwasher, 5/16" Price: Call Us |
| 46 |
483176 |
Pad, Deck Wear Price: Call Us |
| 47 |
43028 |
J-Rod, Idler Pulley Price: Call Us |
| 48 |
43077 |
Spacer, J-Rod Price: Call Us |
| 49 |
04041-12 |
Washer, 3/8 x 1-1/2 x 16 ga. Price: Call Us |
| 50 |
04001-31 |
Bolt, 3/8-16 x 2-1/2" Hex Head Price: Call Us |
| 51 |
481024 |
Seal, Cutter Spindle Price: Call Us |
| 53 |
43277 |
Spacer, J-Rod Price: Call Us |
| 54 |
48677 |
Reief Fitting, Cutter Spindle Price: Call Us |
| 55 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 56 |
43297 |
Spindle Bushing Price: Call Us |
| 57 |
481035 |
Nut, Cutter Spindle Price: Call Us |
| 58 |
481625-01 |
Knob, w/stud Price: Call Us |
| 59 |
04001-51 |
Bolt, 3/8-16 x 3-3/4" Hex Head Price: Call Us |
| 60 |
43681 |
Idler Pivot Price: Call Us |
| 61 |
483215 |
Idler Pulley, Belt Clutch Price: Call Us |
| 62 |
48224 |
Bearing Price: Call Us |
| 63 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 64 |
482295 |
Guide Roller Price: Call Us |
| 65 |
45944 |
Roller Shaft Price: Call Us |
| 66 |
481025 |
Seal, Cutter Spindle Price: Call Us |
| 67 |
483378 |
Spring, Discharge Chute This part replaces 483185. Price: Call Us |
| 69 |
04001-62 |
Bolt, 3/8-16 x 3-1/4" Hex Head Price: Call Us |
| 70 |
04003-23 |
Bolt, Carriage 3/8-16 x 1" Price: Call Us |
| 71 |
424661 |
Heatshield, 16" Small Frame This part replaces 423972. Price: Call Us |
| 72 |
04021-22 |
Nut, Hex Lock 5/16-18 Price: Call Us |
| 73 |
04030-03 |
Lock Washer 5/16 Price: Call Us |
| 74 |
424367 |
Dust Shield Price: Call Us |
| 48285 |
Belt, |
RH Blade Drive Price: Call Us 48285 |
| 424840 |
Baffle |
Weldment 52V This part replaces 424174. Price: Call Us 424840 |
| 461845 |
Discharge |
Chute 52V Price: Call Us 461845 |
| 483518 |
Belt, |
Blade Drive This part replaces 48286. Price: Call Us 483518 |
