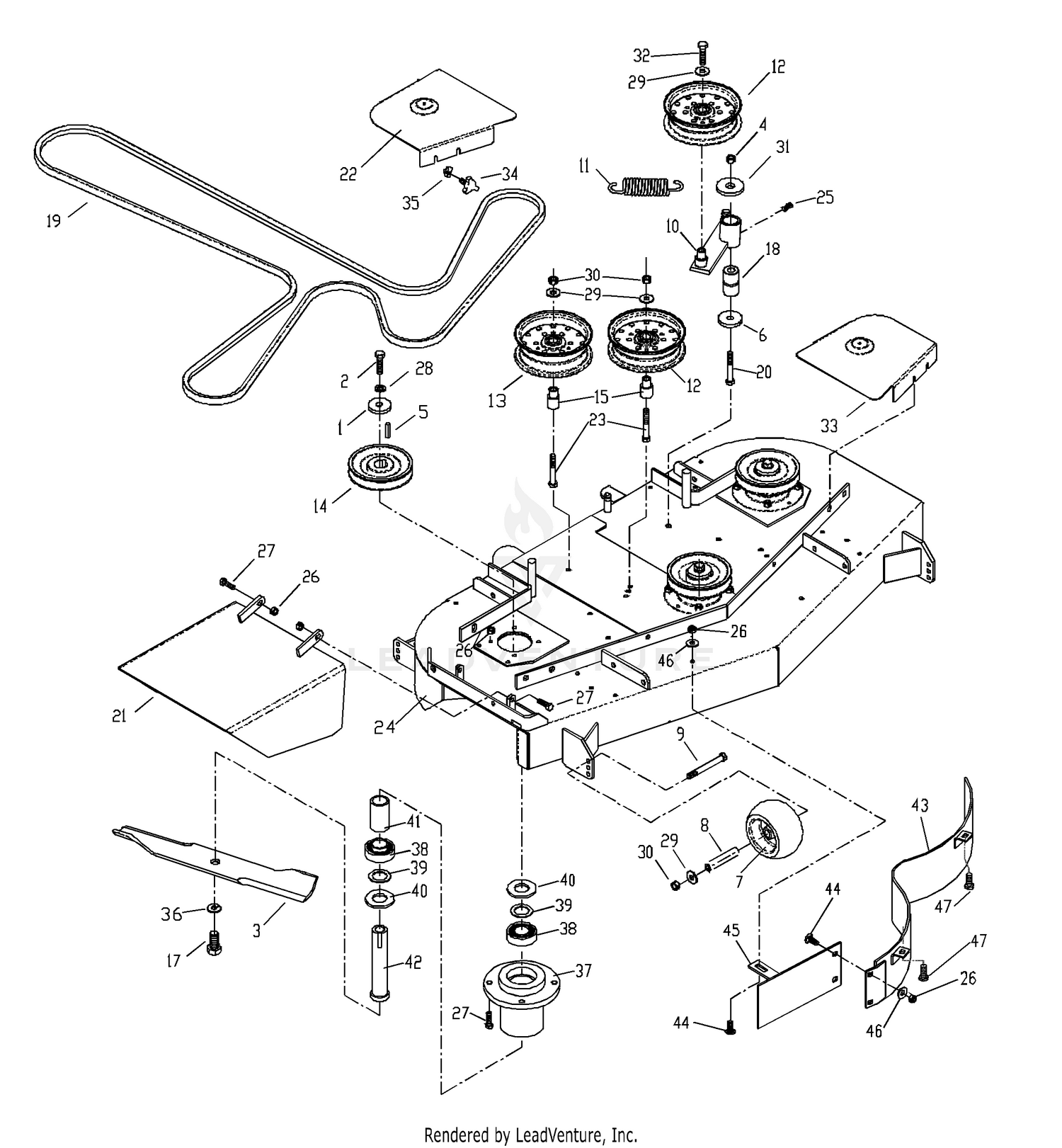

52" Front Deck Assembly

52" Front Deck Assembly

Parts (75)

RefPart NumberDescription
1 596770301 Washers This part replaces 539106504. Price: $4.99
1 69-9560-01 HOUSING-CONTROL This part replaces 69-9560. Price: $199.96
2 3234-7 SCREW-HHF Price: $1.99
2 539100141 HCS 7/16F X 1 1/2 Price: $7.99
3 539101733 BLADE OEM 21" (61" DECK) Price: $18.99
3 71-4180 AUDIO ALARM Price: $204.28
4 323-4 SCREW-HH Price: $1.02
4 596135601 GSPW NUTS This part replaces 539101331. Price: $3.99
5 539101995 KEY 1/4 SQ X 1 1/8 Price: $2.99
5 71-4270 DISCONTINUED Price: Call Us
6 596437501 Washers This part replaces 539102243. Price: $8.99
6 69-6260 MAGNET Price: $58.32
7 32105-1 SCREW-SHH Price: $3.19
7 539102643 ANTI-SCALP ROLLER Price: $8.99
8 32105-13 SCREW-HWH Price: $1.59
8 539102698 BUSHING Price: $29.99
9 539102754 HCS 3/8C X 3 1/2 Price: $3.99
10 43-4000 CIRCUIT BREAKER Price: $116.55
10 539103230 IDLER ARM Price: $159.99
11 3290-133 SCREW Price: $1.19
11 539105192 DECK SPRING Price: $13.99
12 3256-22 WASHER-FLAT Price: $0.39
12 539103257 IDLER PULLEY Price: $49.99
13 539103258 IDLER PULLEY (TALL) Price: $44.99
13 69-7040 HOLDER-CUP Price: $57.78
14 321-3 SCREW-HH Price: $0.28
14 539104421 PULLEY 52" DECK Price: $60.99
15 3253-3 WASHER-LOCK Price: $0.31
15 539103295 IDLER BUSHING Price: $12.99
16 539107408 HOUSING KIT FOR 104403 This part replaces 539104403. Price: $449.99
16 71-2430-03 REAR PLATE ASM This part replaces 71-2430. Price: $54.89
17 539103299 HCS 5/8F X 1 1/4 Price: $5.99
17 71-4130 SUPPORT-CONTROL Price: $347.75
18 3290-378 TIE-CABLE Price: $0.79
18 539103427 PIVOT BUSHING Price: $7.99
19 3253-21 WASHER-LOCK Price: $0.28
19 539109242 BELT, DECK 52" This part replaces 539105643. Price: $84.99
20 539103433 HCS 1/2C X 3 1/4 Price: $5.99
21 3296-2 NUT-LOCK, NI Price: $1.89
21 539107312 DISCHARGE CHUTE ORANGE This part replaces 539106514. Price: $349.99
22 539106448 BELT SHIELD Price: $59.99
22 98-4437 CONTROLLER ASM This part replaces 71-2480. Price: $1,680.76
23 32149-7 NUT-KEPS Price: $0.27
23 596434201 Bolts This part replaces 539990637. Price: $3.99
24 539106582 DECK W/DECALS 52" HUS Price: $849.99
24 67-7160 BLOCK-FUSE Price: $18.75
25 3234-14 SCREW-HHF Price: $0.61
25 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
26 596580701 Nuts This part replaces 539990184. Price: $2.99
26 69-8210-03 SUPPORT-COVER This part replaces 69-8210. Price: $47.02
27 32128-20 NUT-HF Price: $0.99
27 596580801 Bolts This part replaces 539990209. Price: $2.99
28 596238901 Washers This part replaces 539990247. Price: $2.99
29 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
29 74-2310 CLAMP-PLASTIC Price: $2.87
30 37-2690 CAPACITOR Price: $155.98
30 595305901 Nuts This part replaces 539990546. Price: $2.99
31 3296-15 NUT-LOCK, NI Price: $1.75
31 595316401 Washers This part replaces 539990550. Price: $2.99
32 596583101 Screws This part replaces 539990582. Price: $3.99
32 80-4890 DECAL - SERVICE Price: $26.87
33 539106449 BELT SHIELD Price: $50.99
34 597783101 GSPW Knobs This part replaces 539104411. Price: $3.99
35 539104763 U-CLIP 5/16-18 NUT RETAINER Price: $4.99
36 539990333 LOCKWASHER 5/8 Price: $2.99
37 539104852 HOUSING, DIE CAST Price: $64.99
38 539115279 BEARING-ECC LOCK W/COLLAR This part replaces 539102677. Price: $30.99
39 539102244 BUSHING.MACHINE.18.GAUGE Price: $4.99
40 539102675 MACHINERY BUSHING 10 GA. Price: $8.99
41 539102676 SPACER Price: $8.99
42 539104402 SPINDLE Price: $64.99
43 539105457 MAIN BAFFLE 52" Price: $219.99
44 596039401 BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99
45 539105453 CENTER BAFFLE - 52" Price: $54.99
46 596134901 GSPH This part replaces 539990692. Price: $2.99
