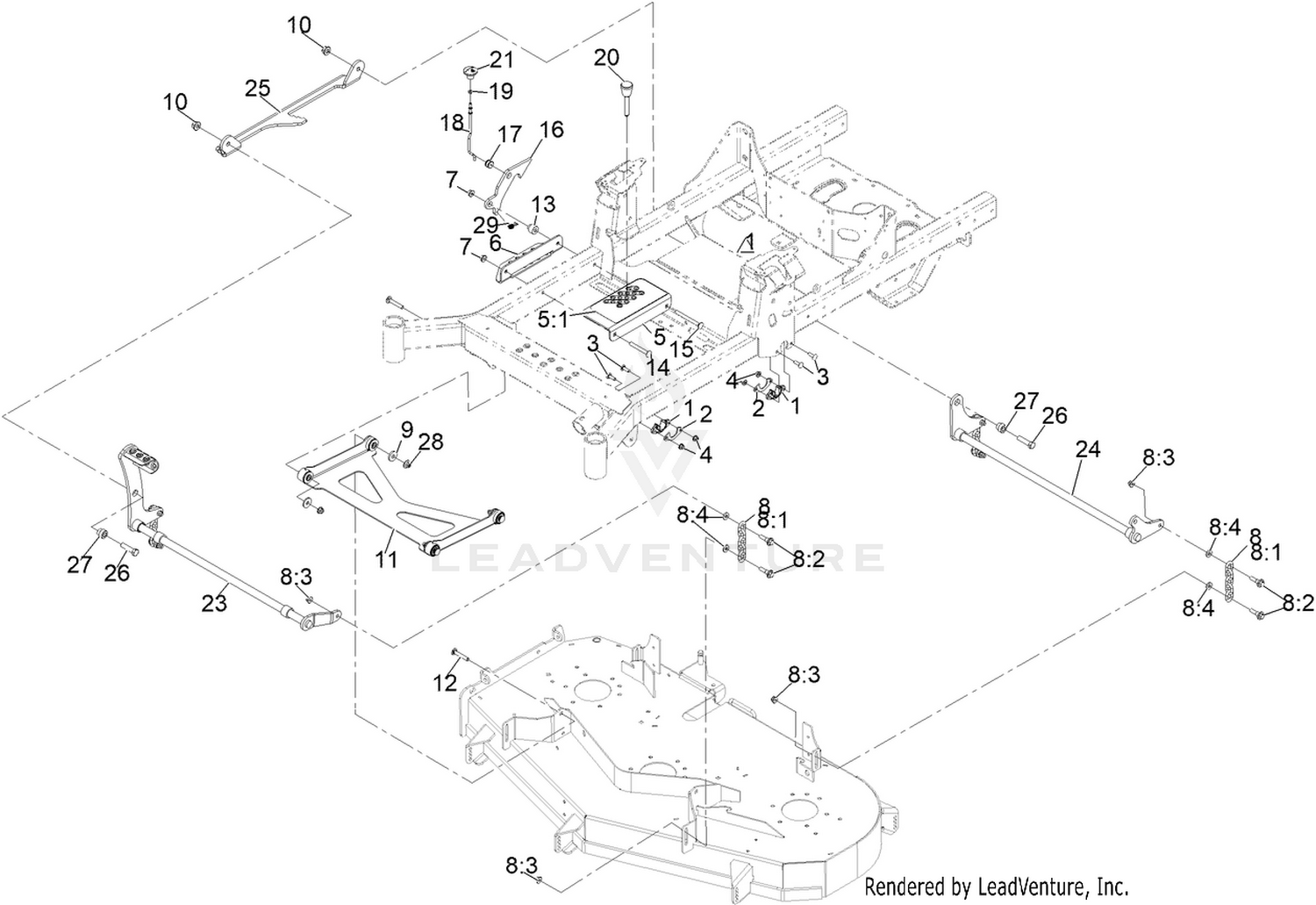

Deck Lift Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139-5872 | BEARING-FLANGE Price: $1.59 |
| 2 | 116-2887 | GUSSET-LIFT, DECK Price: $4.79 |
| 3 | 3230-22 | SCREW-CARR Price: $1.99 |
| 4 | 104-8300 | NUT-HF, NI Price: $0.89 |
| 5 | 126-4535 | BRACKET ASM Price: $33.99 |
| 6 | 142-8483-03 | Plate, HOC Lower Price: $28.99 |
| 7 | 104-8301 | NUT-HF, NI Price: $1.19 |
| 8 | 126-8877 | DECK CHAIN ASM Price: $12.99 |
| 9 | 1-373034 | WASHER Price: $3.19 |
| 10 | 142-7784 | NUT-HF, NI Price: $3.39 |
| 11 | 142-8044 | ASM-DECK STRUT WITH BUSHINGS Price: $78.99 |
| 12 | 3231-40 | BOLT-CARR, SHORT NECK Price: $2.29 |
| 13 | 126-5221 | SPACER-STEPPED Price: $5.89 |
| 14 | 3231-42 | SCREW-CARR Price: $2.29 |
| 15 | 135-0313 | SCREW-CARR Price: $2.59 |
| 16 | 142-8481 | LATCH, TRANSPORT Price: $20.99 |
| 17 | 126-5593 | GROMMET Price: $1.29 |
| 18 | 142-8482 | LINKAGE, TRANSPORT Price: $5.89 |
| 19 | 3218-1 | NUT-JAM Price: $1.29 |
| 20 | 126-5401 | PIN-HOC Price: $20.99 |
| 21 | 126-7019 | KNOB Price: $9.99 |
| 23 | 146-0966-03 | Weld-Decklift Front Shaft Price: $119.99 |
| 24 | 146-0965-03 | Weld-Decklift Rear Shaft Price: $86.99 |
| 25 | 135-5079-03 | LINK-DECKLIFT Price: $83.99 |
| 26 | 142-7785 | SCREW-HEX Price: $2.69 |
| 27 | 142-7110 | SPACER, HOC Price: $2.49 |
| 28 | 109-6658 | Nut-Nyloc 3/8-16 Flg Price: $1.19 |
