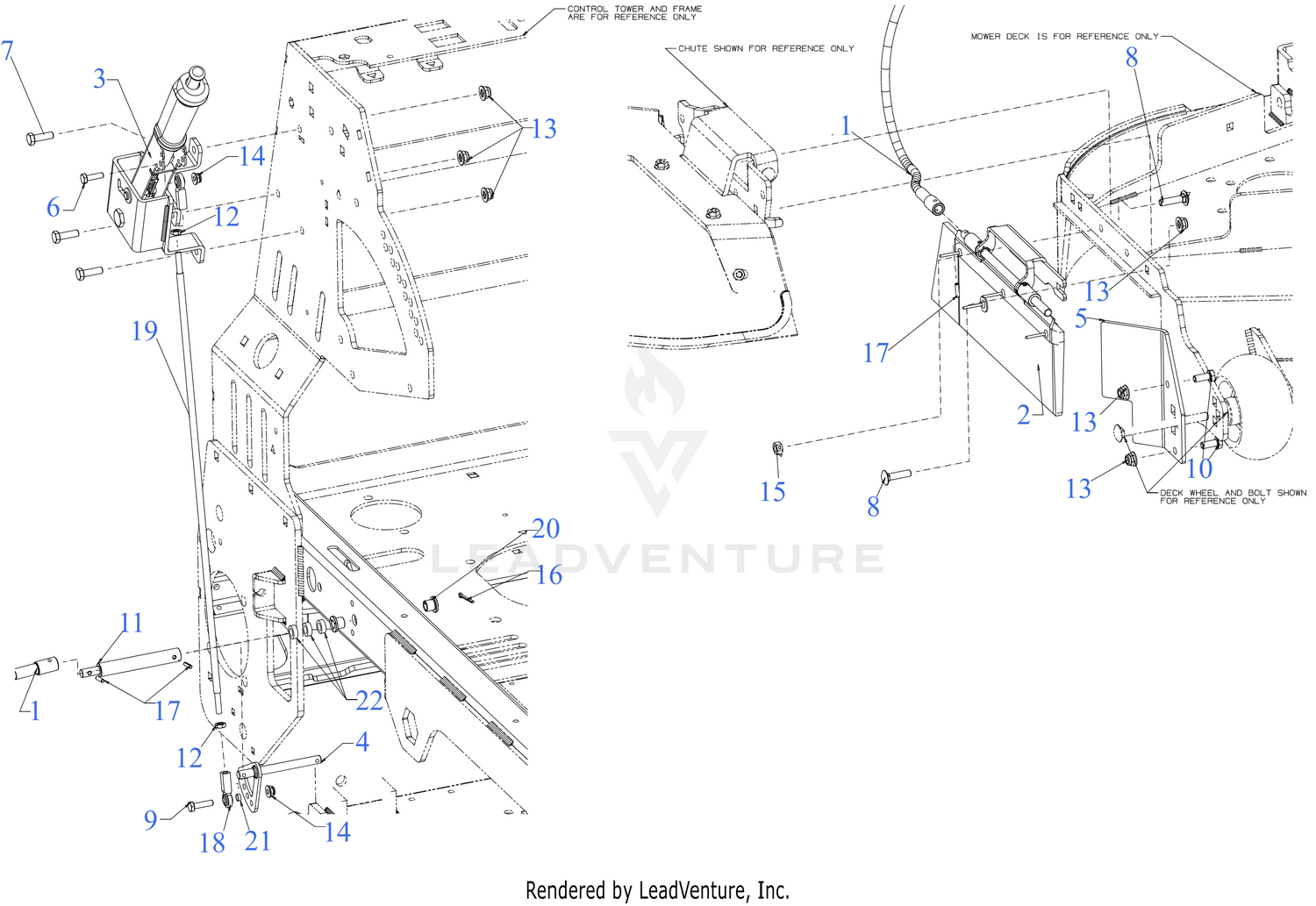

| Ref | Part Number | Description |
|---|
| 1 |
611-05567 |
DISCHARGE DOOR CONTROL Price: $187.40 |
| 4 |
680-01596 |
DOOR SHAFT Price: $98.56 |
| 6 |
710-0206 |
HEX SCREW 1/4-20 x .875 GR5 Price: $3.94 |
| 7 |
710-0376 |
SCREW 5/16-18 x 1.0 GR5 Price: $3.66 |
| 8 |
710-04821 |
CARRIAGE BOLT 5/16-18 x 1.25 Price: $4.55 |
| 9 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 10 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 11 |
711-07101 |
ADAPTER SHAFT 4.25" Price: $76.43 |
| 12 |
712-0314 |
HEX JAM NUT 1/4-28 Price: $3.21 |
| 13 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 14 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 15 |
712-3009 |
HEX NUT Price: $5.99 |
| 16 |
714-0470 |
COTTER PIN Price: $3.90 |
| 17 |
715-04137 |
ROLL PIN 5/32" x .688" Price: $4.21 |
| 18 |
723-04077 |
END ROD (RH) Price: $19.55 |
| 19 |
747-08930 |
DOOR ROD Price: $22.21 |
| 20 |
748-0208A |
FLANGE BEARING Price: $3.93 |
| 21 |
1751 |
FLAT WASHER 1/4 SAE ZINC Price: $0.06 |
| 21 |
750-05212 |
SPACER Price: $2.27 |
| 22 |
950-0535 |
SPACER-.380 ID x .625 OD x .227 Price: $3.90 |
