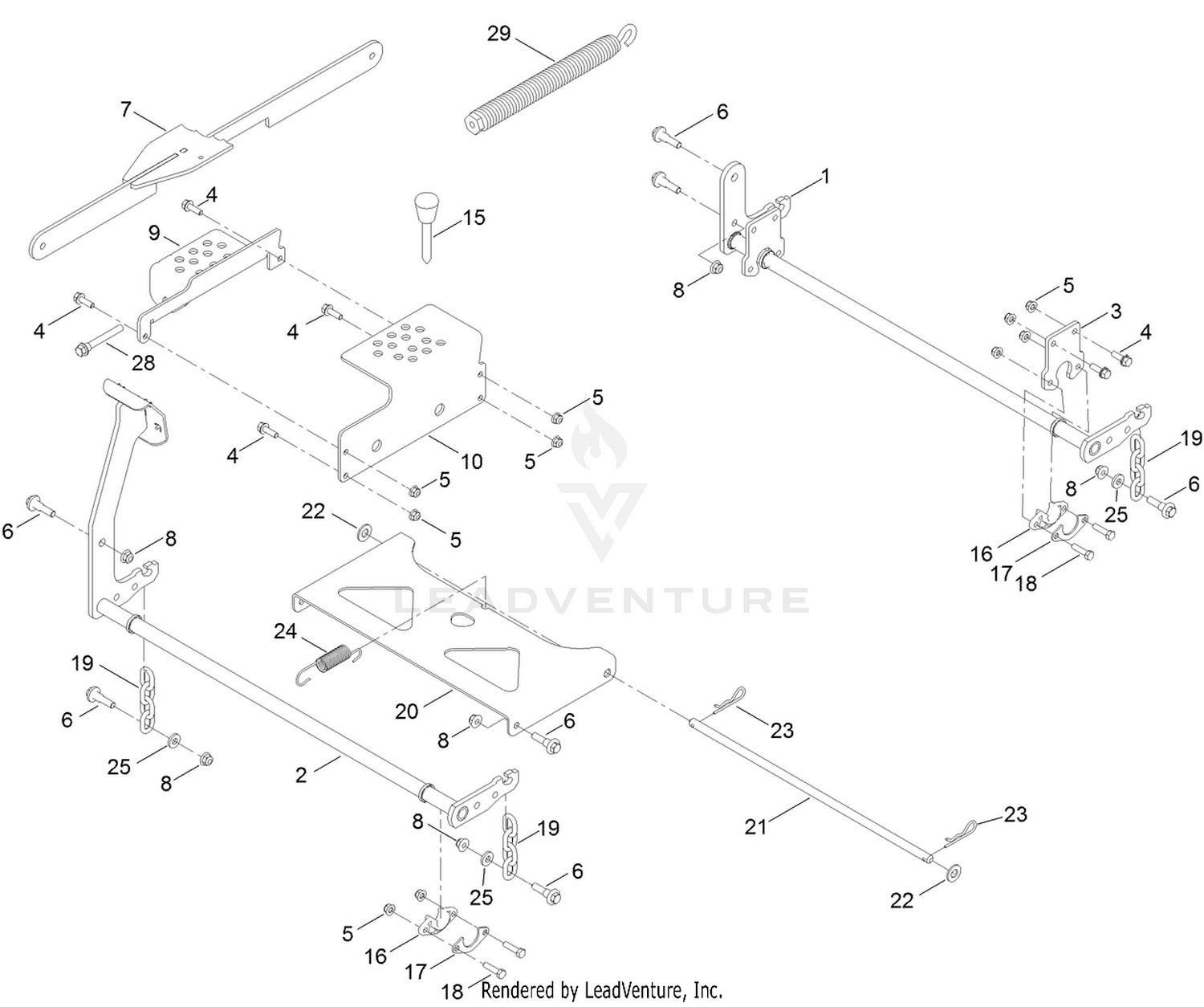

Deck Lift Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 137-2020-03 | PIVOT-REAR Price: $44.00 |
| 2 | 133-4430-03 | PIVOT-FRONT Price: $63.47 |
| 3 | 137-2021-03 | PLATE Price: $5.01 |
| 4 | 3234-29 | SCREW-HHF Price: $1.84 |
| 5 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 6 | 130-0742 | BOLT-SHOULDER Price: $1.29 |
| 7 | 139-3553-03 | LIFT LINK ASM Price: $44.75 |
| 8 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 9 | 139-3557-03 | PLATE-HOC, LOWER Price: $27.96 |
| 10 | 139-3556-03 | PLATE-HOC, UPPER Price: $29.08 |
| 15 | 140-2146 | HOC PIN ASM Price: $11.18 |
| 16 | 139-5872 | BEARING-FLANGE Price: $1.10 |
| 17 | 138-7204 | GUSSET-DECK LIFT Price: $1.73 |
| 18 | 322-6 | SCREW-HH Price: $0.45 |
| 19 | 138-7205 | CHAIN-DECKLIFT, 4-LINK Price: $4.81 |
| 20 | 133-4311-01 | PAN-PIVOT, DECK Price: $38.06 |
| 21 | 133-7071 | ROD-PIVOT, DECK Price: $12.06 |
| 22 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 23 | 1-806005 | PIN-COTTER Price: $2.39 |
| 24 | 138-7206 | SPRING-EXTENSION Price: $4.08 |
| 25 | 138-7207 | SPACER-HUB, BLOWER Price: $0.56 |
| 28 | 92-7674 | BOLT-SHOULDER Price: $1.93 |
