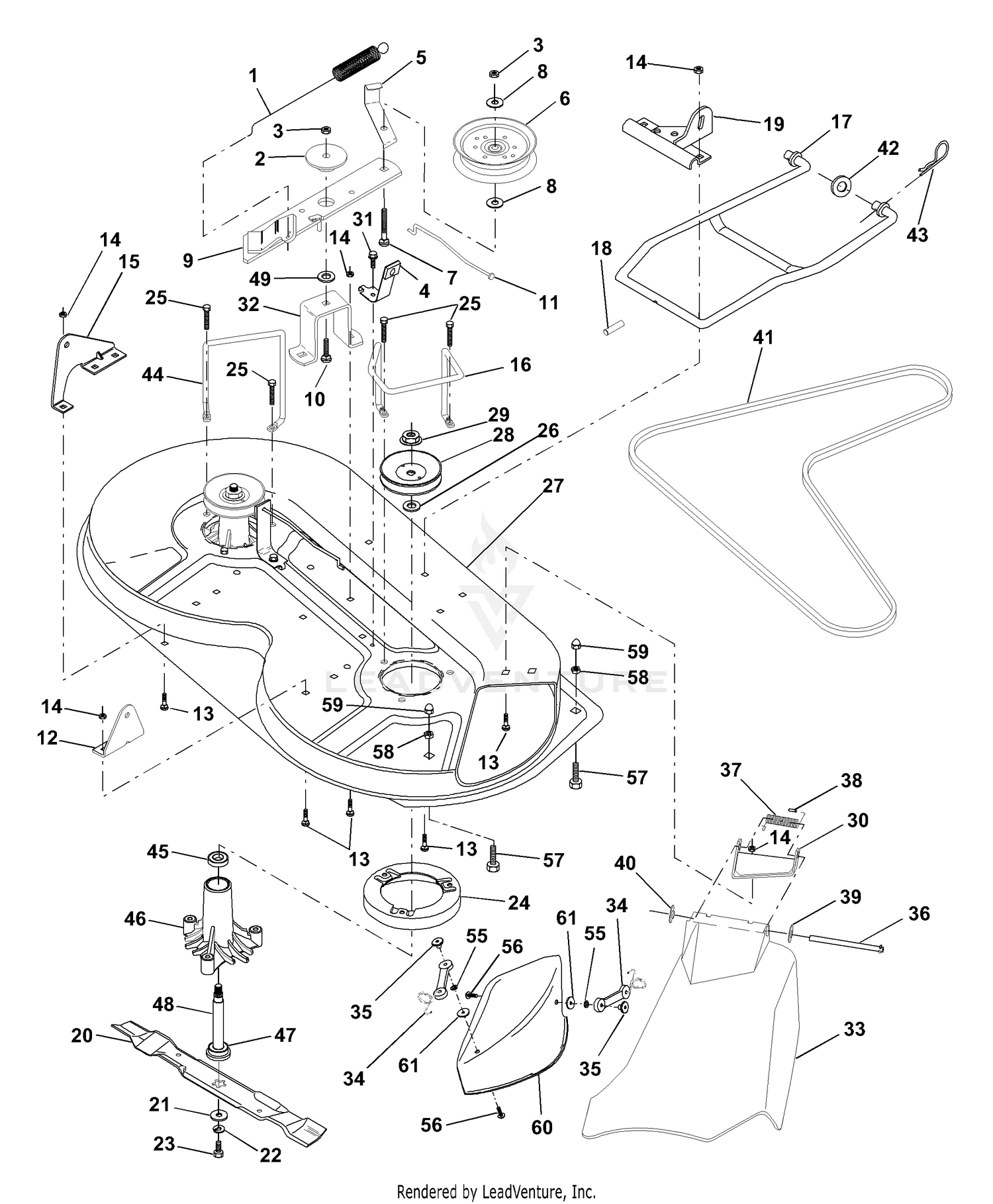

| Ref | Part Number | Description |
|---|
| 1 |
532140064 |
SPRING-MOWER CLUTCH Price: $14.99 |
| 1 |
93-5595 |
HOSE-RADIATOR, UPPER Price: $71.69 |
| 2 |
2412-111 |
CLAMP Price: $4.39 |
| 2 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 3 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 3 |
93-5538 |
HOSE-PEUGEOT Price: $14.47 |
| 4 |
2412-141 |
CLAMP-DRIVE, WORM Price: $2.40 |
| 4 |
531165101 |
SERVICE KIT BRAKE ASSEMBLY BRA This part replaces 532130840. Price: $6.99 |
| 5 |
532131251 |
IDLER BELT GUIDE Price: $3.99 |
| 5 |
77-3100 |
DECAL-WARNING Price: $7.89 |
| 6 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 6 |
532121316 |
PULLEY.IDLER.FLAT.MOWER.BLK.PT Price: $44.99 |
| 7 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 7 |
93-5109 |
SPACER Price: $3.03 |
| 8 |
596134901 |
GSPH This part replaces 819131410. Price: $2.99 |
| 8 |
93-5108 |
GROMMET-RUBBER Price: $15.32 |
| 9 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 9 |
532140092 |
IDLER ARM ASSY This part replaces 532127744. Price: $8.78 |
| 10 |
595901101 |
Bolts This part replaces 872140610. Price: $3.99 |
| 10 |
93-5100-03 |
UPPER RAD. SUPT ASM This part replaces 93-5100. Price: $49.80 |
| 11 |
532130841 |
BRAKE ROD Price: $24.99 |
| 11 |
83-9150 |
DECAL-FLUID, STARTING Price: $20.09 |
| 12 |
532127356 |
BRKT LIFT REAR Price: $3.99 |
| 12 |
93-5104 |
DISCONTINUED Price: Call Us |
| 13 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 13 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 14 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 14 |
63-5400 |
DISCONTINUED Price: Call Us |
| 15 |
532127357 |
BRKT LIFT REAR LH Price: $4.99 |
| 15 |
93-5107 |
FITTING-ADAPTER Price: $23.99 |
| 16 |
237-30 |
O-RING Price: $2.50 |
| 16 |
532153298 |
BELT KEEPER This part replaces 532140093. Price: $11.99 |
| 17 |
532128508 |
MOWER LINK STABILIZER Price: $41.84 |
| 17 |
93-5106 |
TUBE-OIL COOLER Price: $53.36 |
| 18 |
532128511 |
PIN GROOVE Price: $2.99 |
| 18 |
93-5103 |
SUPPORT - RADIATOR *B Price: $68.03 |
| 19 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 19 |
532127380 |
BRKT LINK STABILIIZER Price: $7.99 |
| 20 |
532140101 |
BLADE.36".MULCH Price: $19.99 |
| 20 |
93-5105 |
DISCONTINUED Price: Call Us |
| 21 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 21 |
532140296 |
WASHER.BLADE Price: $5.99 |
| 22 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 22 |
93-5942 |
RADIATOR Price: $1,168.11 |
| 23 |
532850857 |
BLADE BOLT Price: $3.99 |
| 23 |
93-5034 |
DISCONTINUED Price: Call Us |
| 24 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 24 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532140329. Price: $6.99 |
| 25 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 25 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532138776. Price: $3.99 |
| 26 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 26 |
93-5054 |
FITTING-RESTRICTION Price: $18.47 |
| 27 |
2412-141 |
CLAMP-DRIVE, WORM Price: $2.40 |
| 27 |
532174082 |
DECK SVCX1 KIT MOWER.36.LR This part replaces 532129983. Price: $119.99 |
| 28 |
532173434 |
MANDREL PULLEY This part replaces 532129207. Price: $14.99 |
| 28 |
93-5537 |
HOSE-PEUGEOT Price: $24.94 |
| 29 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $7.99 |
| 29 |
93-5392 |
O-RING Price: $1.33 |
| 30 |
532136631 |
BRACKET ASM DEFLECTOR Price: $9.99 |
| 30 |
93-5597 |
HOSE-RADIATOR Price: $24.16 |
| 31 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 31 |
93-5053 |
FITTING-RADIATOR Price: $63.27 |
| 32 |
532122051 |
SUPT,IDLER ARM Price: $4.99 |
| 32 |
93-5596 |
HOSE-RADIATOR, LOWER Price: $74.92 |
| 33 |
532175029 |
SHIELD.DEFL.MWR.36" This part replaces 532131560. Price: $24.99 |
| 33 |
93-5528 |
FITTING-COCK, DRAIN Price: $16.97 |
| 34 |
354-94 |
FITTING-FEMALE, BARBED Price: $9.70 |
| 35 |
18-2080 |
PWR STEER RETURN HOSE Price: $28.11 |
| 36 |
593885101 |
Rods This part replaces 532121980. Price: $5.99 |
| 37 |
532123713 |
SPRING TORSION Price: $6.99 |
| 38 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 39 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 40 |
532110452 |
NUT PUSH M Price: $2.99 |
| 41 |
532131264 |
BELT Price: $34.99 |
| 42 |
596040101 |
Washers This part replaces 819171616. Price: $2.99 |
| 43 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $2.99 |
| 44 |
532140608 |
KEEPER LH Price: $22.99 |
| 45 |
532110485 |
BEARING Price: $11.99 |
| 46 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 47 |
532129895 |
BEARING.BALL.#6204.(MANDREL) Price: $9.99 |
| 49 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 50 |
532140102 |
MULCH.COVER.36" Price: $46.99 |
| 51 |
532133841 |
ACORN NUT Price: $2.99 |
| 52 |
597000601 |
LATCH.ASM.MULCH/BAGGER This part replaces 532130758. Price: $5.99 |
| 53 |
596987401 |
Nuts This part replaces 532125004. Price: $2.99 |
| 54 |
819061216 |
WASHER Price: $3.99 |
| 55 |
810071000 |
LOCKWASHER #10 Price: $3.99 |
| 56 |
596039001 |
Screws This part replaces 871161010. Price: $2.99 |
| 57 |
596580801 |
Bolts This part replaces 874930516. Price: $2.99 |
| 58 |
596040501 |
Hardware This part replaces 532063124. Price: $2.99 |
