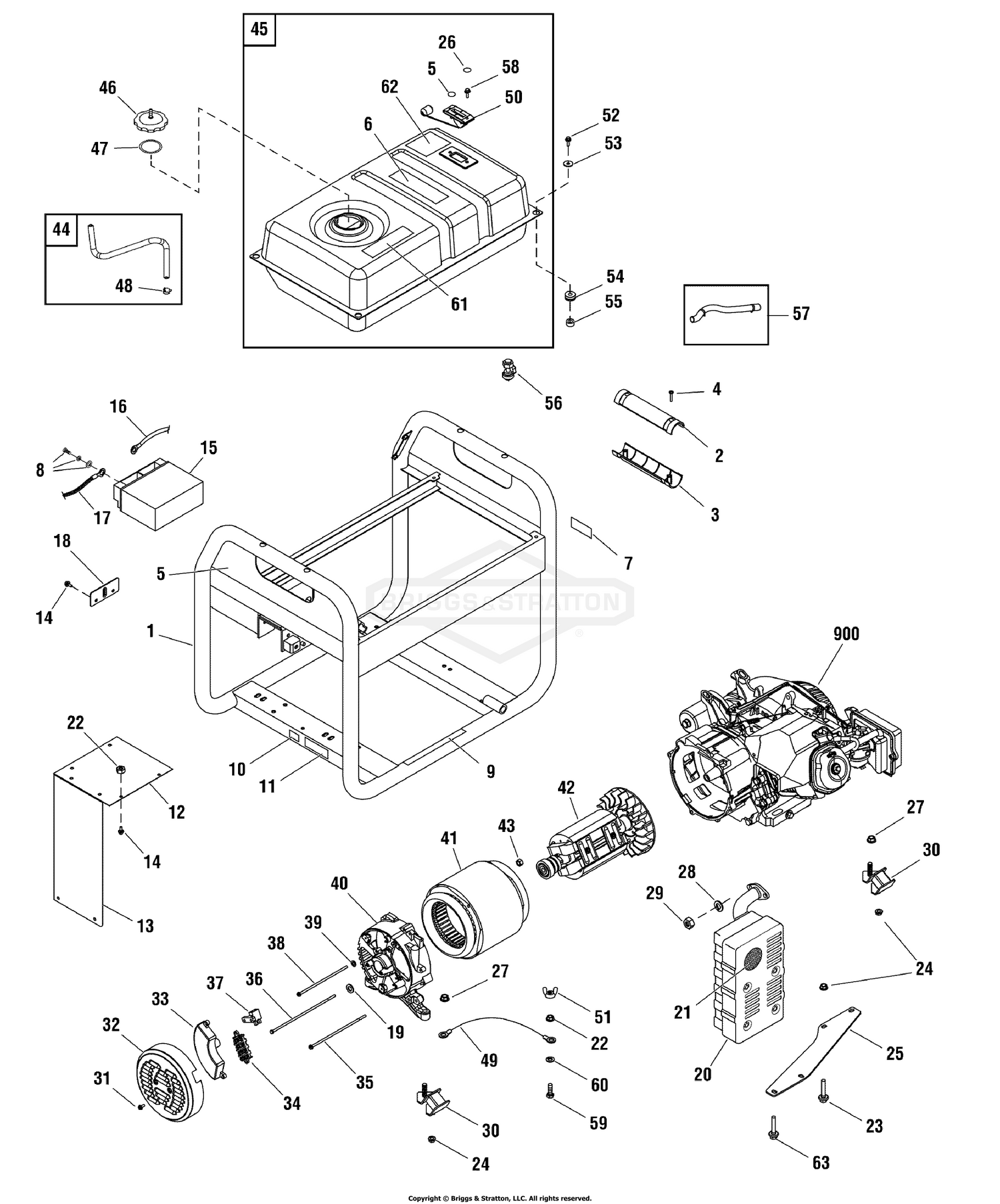

| Ref | Part Number | Description |
|---|
| 1 |
312007GS |
CRADLE Price: $489.99 |
| 2 |
312008GS |
GRIP, Handle Price: $14.39 |
| 3 |
312009GS |
GRIP, Handle Price: $14.86 |
| 4 |
75477GS |
PPHMS, M5 - 0.8 x 20 Price: $3.28 |
| 5 |
313461GS |
DECAL Price: $8.89 |
| 6 |
194984GS |
Decal, Warning, French Price: $13.99 |
| 7 |
197798GS |
DECAL, Fuel Shut Off Price: $7.89 |
| 8 |
315546GS |
KIT, Hardware, Battery Terminal Price: $8.05 |
| 9 |
200310GS |
DECAL, Caution Hot Muffler Price: $14.83 |
| 10 |
B4986GS |
DECAL, Ground, Green Price: $2.75 |
| 11 |
200311GS |
DECAL, Neutral Bonded,Frnch Price: $6.99 |
| 12 |
312020GS |
HEATSHIELD Price: $31.26 |
| 13 |
312019GS |
HEATSHIELD Price: $51.93 |
| 14 |
209775GS |
BOLT Price: $4.07 |
| 15 |
316345GS |
BATTERY Price: $229.66 |
| 16 |
312014GS |
CABLE-BATTRY, RED Price: $18.93 |
| 17 |
312026GS |
CABLE-BTTRY, BLACK Price: $17.32 |
| 18 |
311983GS |
PLATE-BATTERY Price: $8.15 |
| 19 |
312045GS |
WASHER Price: $2.99 |
| 20 |
192569GS |
MUFFLER Price: $148.05 |
| 21 |
83083GS |
SCREEN, Spark Arrest Price: $8.49 |
| 22 |
197861GS |
Nut, M6, Flange Price: $2.59 |
| 23 |
311987GS |
SCREW Price: $3.39 |
| 24 |
67989GS |
NUT, M8 Flange Serrated Price: $2.77 |
| 25 |
311985GS |
SUPPORT-MUFFLER Price: $14.69 |
| 26 |
313462GS |
DECAL Price: $8.36 |
| 27 |
193747GS |
NUT Price: $4.12 |
| 28 |
22129GS |
WASHER, Lock Price: $2.61 |
| 29 |
45771GS |
NUT, M8 - 1.25 Price: $5.88 |
| 30 |
319451GS |
MOUNT-VIBRATION This part replaces 312012GS. Price: $10.58 |
| 31 |
207824GS |
BOLT, M5 - 6 x 12 Price: $3.73 |
| 32 |
209428GS |
END COVER Price: $25.13 |
| 33 |
312038GS |
VOLTAGE REGULATOR Price: $55.57 |
| 34 |
312041GS |
TERMINAL BLOCK Price: $13.49 |
| 35 |
312042GS |
BOLT Price: $13.69 |
| 36 |
312044GS |
BOLT Price: $6.52 |
| 37 |
209441GS |
BRUSH ASSEMBLY Price: $9.35 |
| 38 |
312046GS |
BOLT Price: $7.49 |
| 39 |
49226GS |
WASHER, Lock, M5 Price: $1.89 |
| 40 |
708704 |
CARRIER-BEARING This part replaces 207838GS. Price: $90.94 |
| 41 |
312035GS |
STATOR Price: $374.49 |
| 42 |
708718 |
ROTOR This part replaces 312036GS. Price: $389.99 |
| 43 |
207878GS |
NUT, M5 Price: $5.79 |
| 44 |
315017GS |
HOSE, Vapor (cut to fit) Price: $26.64 |
| 45 |
316602GS |
TANK, Fuel Price: $231.20 |
| 46 |
314950GS |
CAP, Fuel Price: $20.30 |
| 47 |
209939GS |
GASKET, Fuel Cap Price: $3.49 |
| 48 |
314955GS |
CLAMP Price: $4.19 |
| 49 |
312040GS |
WIRE Price: $5.54 |
| 50 |
311992GS |
GAUGE, Fuel Price: $14.54 |
| 51 |
87680GS |
NUT, M6 - 1.0 Wing Price: $6.57 |
| 52 |
590644 |
SCREW This part replaces 209421GS. Price: $3.36 |
| 53 |
312005GS |
WASHER Price: $3.09 |
| 54 |
312006GS |
GROMMET Price: $3.19 |
| 55 |
312010GS |
SPACER Price: $2.99 |
| 56 |
209417GS |
VALVE, Fuel Price: $7.75 |
| 58 |
197896GS |
Screw, M5 x 10 Price: $1.55 |
| 59 |
84010594 |
HANDLE This part replaces 47411GS. Price: $32.85 |
| 60 |
22097GS |
WASHER Price: $3.05 |
| 61 |
312728GS |
DECAL Price: $8.39 |
| 62 |
202997GS |
DECAL, Warning, CO Price: $12.80 |
| 63 |
66476GS |
SCREW, w/Lock Washer Price: $2.94 |
