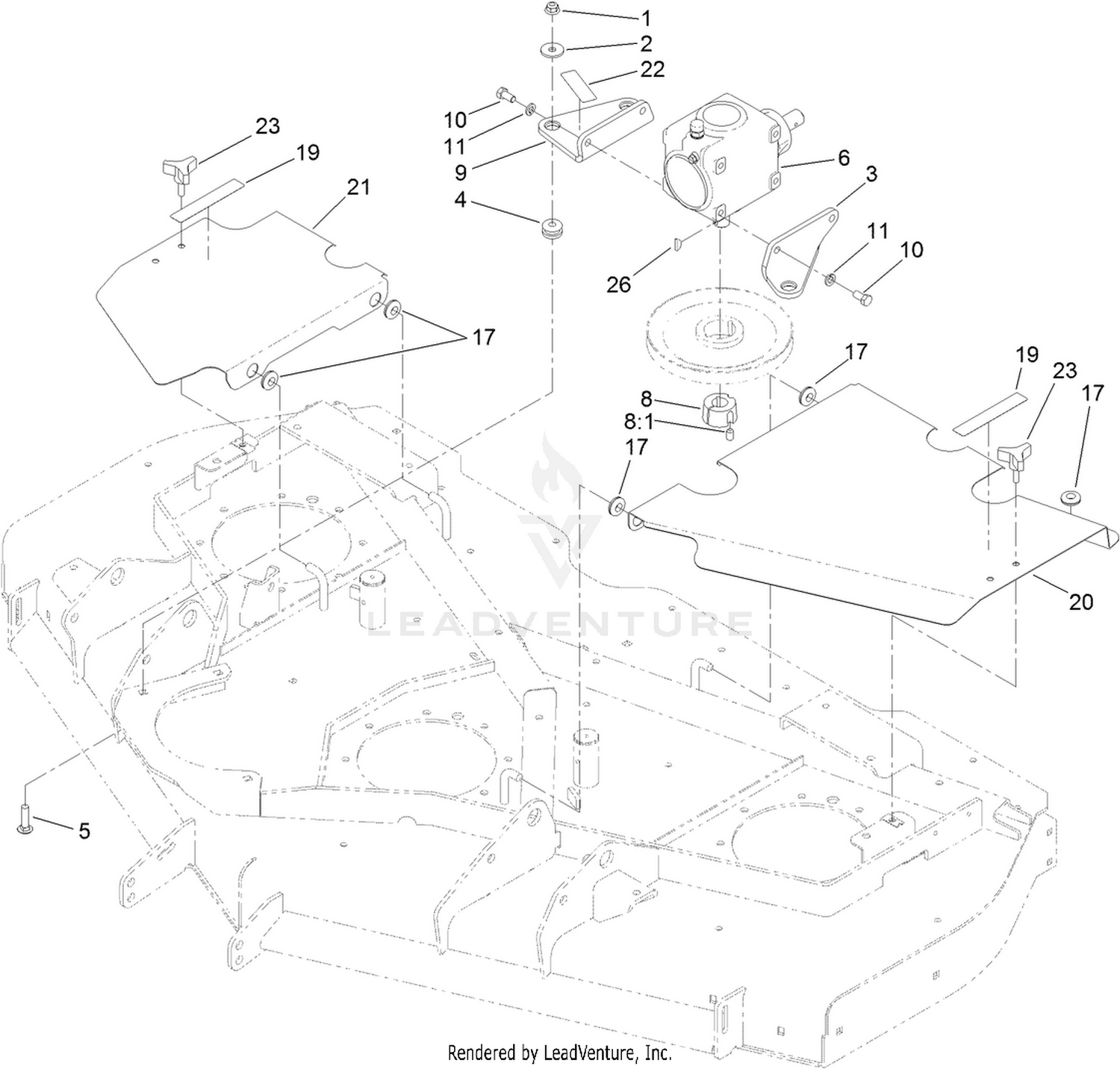

Deck Cover and Gearbox Assembly
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 2 | 63-8410 | WASHER Price: $1.76 |
| 3 | 110-6384-03 | BRACKET-GEARBOX, LH Price: $61.81 |
| 4 | 63-9750 | MOUNT Price: $18.92 |
| 5 | 3231-26 | SCREW-CARR Price: $0.86 |
| 6 | 130-8659 | GEARBOX ASM Price: $843.83 |
| 8 | 23-1640 | BUSHING-TAPERLOCK Price: $68.50 |
| 9 | 110-6385-03 | BRACKET-GEARBOX, RH Price: $61.81 |
| 10 | 323-4 | SCREW-HH Price: $1.02 |
| 11 | 3253-21 | WASHER-LOCK Price: $0.28 |
| 17 | 112-9559 | GROMMET Price: $5.38 |
| 19 | 93-6687 | DECAL-NO STEP Price: $14.45 |
| 20 | 112-1458-03 | COVER-DECK, LH Price: $101.86 |
| 21 | 112-1459-03 | COVER-DECK, RH Price: $68.80 |
| 22 | 93-6697 | DECAL-LUBE Price: $11.38 |
| 23 | 106-2240 | KNOB Price: $12.99 |
