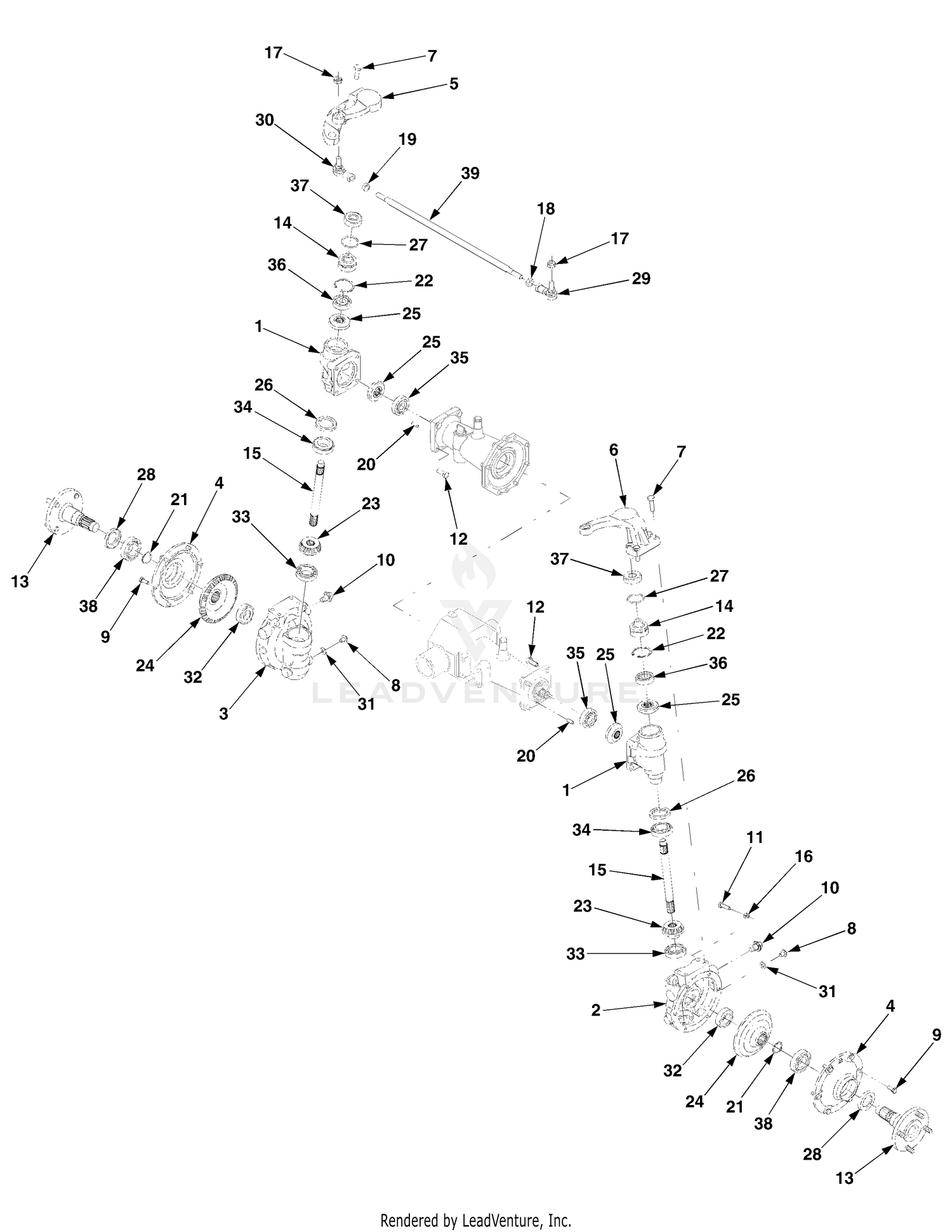

| Ref | Part Number | Description |
|---|
| 1 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532124186. Price: $219.99 |
| 1 |
619-04017AP |
PINION GEAR HOUSING Not Available This part replaces 619-04017A. Price: |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
69-1510 |
SPACER Price: $4.48 |
| 2 |
919-04020A |
FINAL DRIVE HOUSING (RH) Not Available This part replaces 619-04020A. Price: |
| 3 |
32128-23 |
NUT-HF Price: $1.51 |
| 3 |
919-04021A |
FINAL DRIVE HOUSING (LH) This part replaces 619-04021A. Price: $287.77 |
| 4 |
69-8790-01 |
PLATE-REINFORCING Price: $21.41 |
| 4 |
919-04024A |
FINAL DRIVE COVER Not Available This part replaces 619-04024A. Price: |
| 5 |
532140407 |
INSULATED CLIP Price: $3.99 |
| 5 |
69-7290-01 |
MOUNT-JOINT, BALL Price: $105.61 |
| 5 |
919-04027A |
STEERING ARM (LH) Not Available This part replaces 619-04027A. Price: |
| 6 |
325-15 |
SCREW-HH Price: $3.19 |
| 6 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 6 |
619-04028A |
STEERING ARM (RH) Not Available Price: |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
69-8860 |
DISCONTINUED Price: Call Us |
| 7 |
710-1313 |
SCREW M10-1.5X35MM GR8.8 Not Available Price: |
| 8 |
32151-48 |
E-RING Price: $1.41 |
| 8 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 8 |
710-1323 |
SCREW 3/8-16 x .500 GR2 Not Available Price: |
| 9 |
283-70 |
PIN-HITCH Price: $29.52 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 9 |
710-1681 |
Screw, Hex Cap, M8-1.25 x 20 GR8.8 Price: $5.22 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $17.99 |
| 10 |
710-1633 |
Plug, Screw, M14-1.5 x .827 Price: $13.06 |
| 10 |
98-3047-01 |
MACHINING - PIVOT ARM This part replaces 98-3047. Price: $355.96 |
| 11 |
3290-343 |
PIN-HAIR Price: $0.76 |
| 11 |
710-1683 |
SCREW M8-1.25X30 Not Available Price: |
| 12 |
532121248 |
BUSHING Price: $4.99 |
| 12 |
710-3208 |
BOLT M10-1.5X25MM GR8.8 Not Available Price: |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
911-04060 |
WHEEL HUB W/ SHAFT Not Available This part replaces 711-04060. Price: |
| 13 |
93-4241 |
SPACER-BEARING, INNER Price: $26.72 |
| 14 |
120-5378 |
BEARING-BALL This part replaces 93-4237. Price: $13.84 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $3.99 |
| 14 |
911-04104 |
KINGPIN Not Available This part replaces 711-04104. Price: |
| 15 |
327-24 |
SCREW-HH Price: $7.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
911-04106 |
KINGPIN SHAFT Not Available This part replaces 711-04106. Price: |
| 16 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
712-0690 |
HEX NUT Not Available Price: |
| 17 |
323-15 |
SCREW-HH Price: $1.53 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
712-3103 |
Nut, Hex Flange Lock, M12-1.75 Not Available Price: |
| 18 |
5-0838 |
WASHER Price: $1.09 |
| 18 |
712-3104 |
Nut, Hex, M12-1.75 RH Thrd. Price: $6.01 |
| 19 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 19 |
712-3105 |
NUT (LH) JAM M12X1.75 Not Available Price: |
| 20 |
327-25 |
SCREW-HH Price: $11.16 |
| 20 |
915-04014 |
DOWEL PIN 8MMX 20MM Not Available This part replaces 715-04014. Price: |
| 21 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 21 |
716-0201 |
RETAINING RING Not Available Price: |
| 21 |
93-5630 |
SPACER-BEARING, INNER Price: $45.74 |
| 22 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
716-0393 |
RETAINING RING Not Available Price: |
| 22 |
98-7313 |
TIRE-12 INCH Price: $72.29 |
| 23 |
917-04040 |
PINION DRIVE GEAR Not Available This part replaces 717-04040. Price: |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 24 |
917-04041 |
FINAL DRIVE GEAR Not Available This part replaces 717-04041. Price: |
| 24 |
98-7302-01 |
FORK-CASTOR Price: $418.77 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 25 |
69-6860 |
WASHER-THRUST Price: $3.15 |
| 25 |
917-04045 |
PINION IDLER GEAR Not Available This part replaces 717-04045. Price: |
| 26 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 26 |
69-6470 |
BUSHING-CASTOR Price: $5.82 |
| 26 |
721-04087 |
Seal, Oil, 38 x 55 x 7 w/Dirt Lip Price: $20.30 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 27 |
921-04066 |
KINGPIN O-RING Not Available This part replaces 721-04066. Price: |
| 28 |
32128-16 |
NUT-HHF Price: $0.54 |
| 28 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 28 |
721-0497 |
OIL SEAL Price: $12.92 |
| 29 |
69-9260 |
CLEVIS PIN Price: $49.47 |
| 29 |
723-0462 |
Ball Joint, 12-1.75 RH Price: $64.18 |
| 30 |
723-0463 |
Ball Joint, 12-1.75 LH Price: $64.82 |
| 30 |
95-0818 |
DECAL-TORQUE Price: $22.79 |
| 31 |
13-5069 |
DISCONTINUED Price: Call Us |
| 31 |
736-0567 |
NYLON FLAT WASHER Not Available Price: |
| 32 |
30-8770 |
WASHER Price: $3.43 |
| 32 |
941-0301 |
Ball Brg. .25MM x 52MM x 15MM Thk. This part replaces 741-0301. Price: $46.98 |
| 33 |
93-4242 |
PLATE Price: $11.21 |
| 33 |
941-04034 |
BALL BEARING Not Available This part replaces 741-04034. Price: |
| 34 |
93-4243 |
TIRE Price: $54.25 |
| 34 |
941-04043 |
TAPERED BEARING W/RACE This part replaces 741-04043. Price: $48.29 |
| 35 |
93-4239 |
RIM-WHEEL, HALF Price: $29.68 |
| 35 |
941-04044 |
Bearing, Ball, .79 Id x 2.05 Od x .6 This part replaces 741-04044. Price: $26.35 |
| 36 |
93-5980 |
HUB Price: $67.14 |
| 36 |
941-04068 |
BALL BEARING Not Available This part replaces 741-04068. Price: |
| 37 |
741P0919B |
BALL BEARING This part replaces 741-0919. Price: $18.90 |
| 37 |
93-4244 |
TUBE-INNER (W/VALVE) Price: $14.42 |
| 38 |
941-3033A |
Bearing, Ball This part replaces 741-3033A. Price: $50.07 |
| 40 |
95-2741 |
RIM-WHEEL, HALF Price: $25.01 |
