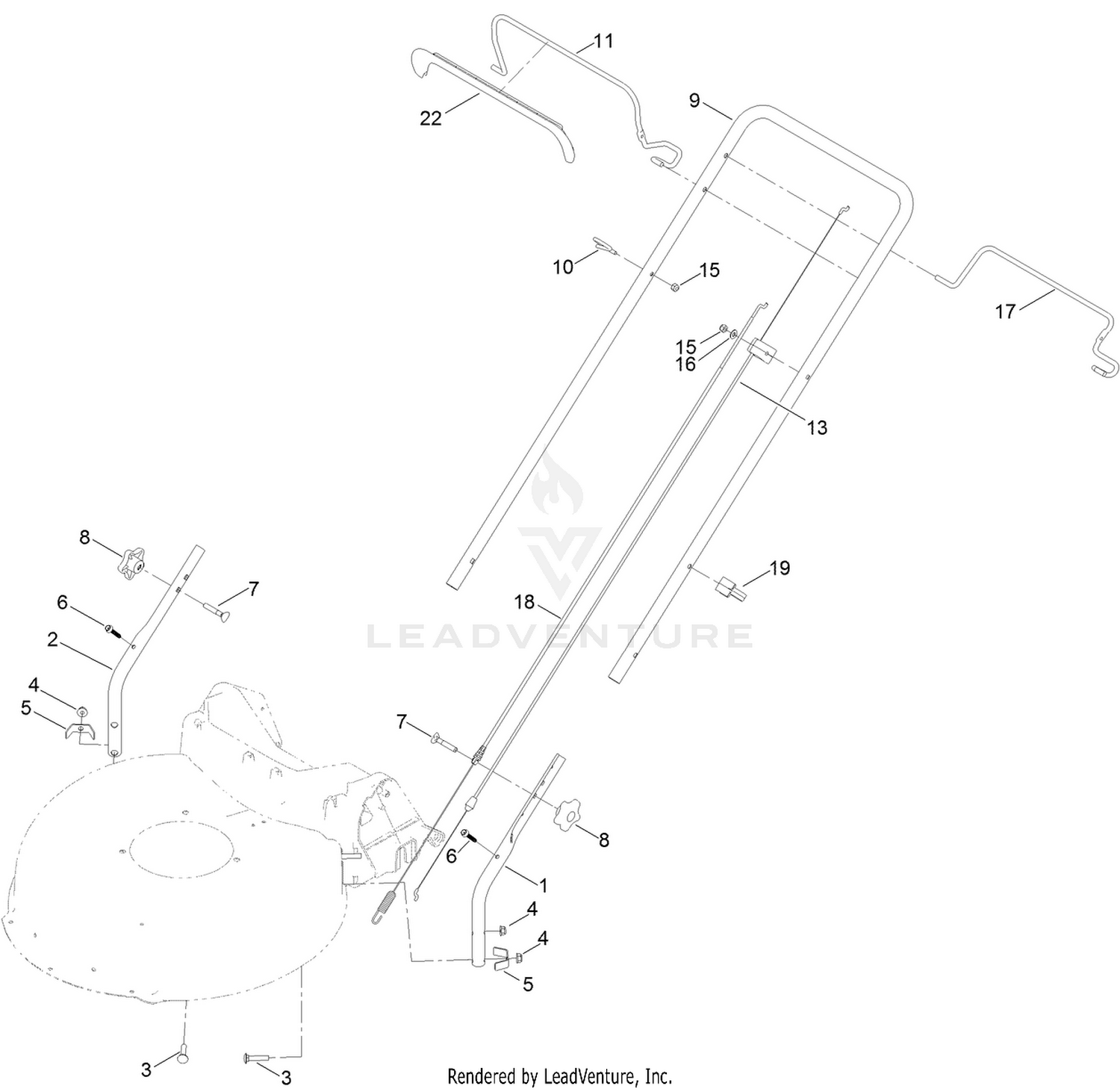

Handle Assembly
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 136-5923-05 | HANDLE-LOWER, LH Price: $15.35 |
| 2 | 136-5924-05 | HANDLE-LOWER, RH Price: $15.35 |
| 3 | 130-6654 | BOLT-CARR Price: $0.88 |
| 4 | 130-6655 | NUT-FLANGE, NI Price: $0.22 |
| 5 | 127-0699 | BRACKET-CHUTE Price: $1.27 |
| 6 | 130-6659 | SCREW-FLANGE, SERRATED Price: $0.88 |
| 7 | 92-2260 | SCREW-HANDLE Price: $2.83 |
| 8 | 117-5976 | KNOB-HANDLE Price: $2.17 |
| 9 | 137-4826-05 | HANDLE-UPPER Price: $36.97 |
| 10 | 86-9671 | GUIDE-ROPE Price: $3.28 |
| 11 | 138-3270-03 | BAIL-BRAKE This part replaces 137-4798-03. Price: $9.61 |
| 13 | 112-8818 | CABLE-BRAKE Price: $22.47 |
| 15 | 3296-73 | NUT-LOCK, NI Price: $3.59 |
| 16 | 3256-1 | WASHER-FLAT Price: $0.39 |
| 17 | 137-4799-03 | BAIL-TRACTION Price: $11.07 |
| 18 | 127-0733 | CABLE-TRACTION Price: $11.70 |
| 19 | 114-7988 | GUIDE-CABLE Price: $1.84 |
