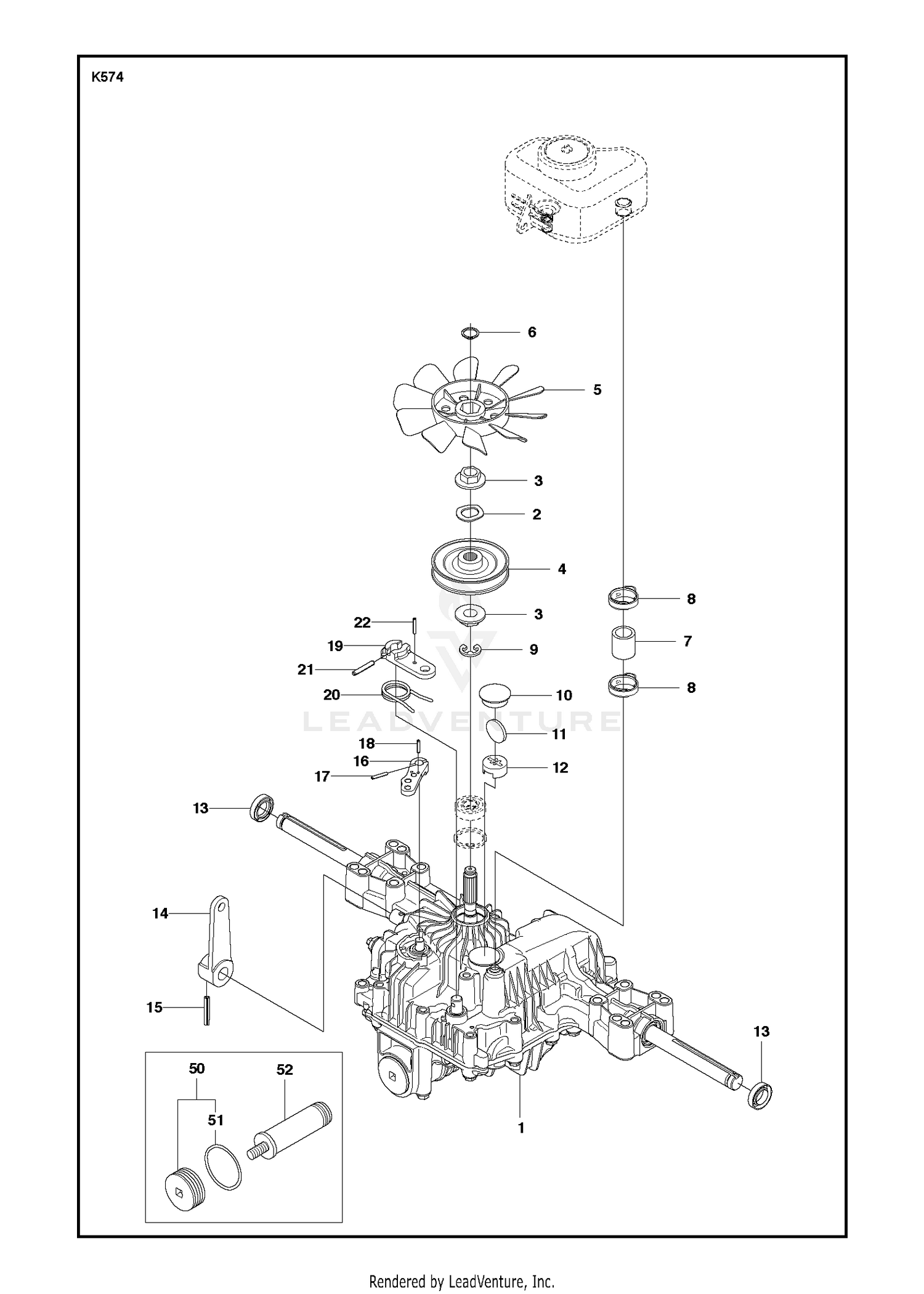

TRANSMISSION
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-0398 | ROPS ASM Price: $278.23 |
| 1 | 590716801 | TRANSMISSION K574A Price: $849.99 |
| 2 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 2 | 506986501 | WASHER ** Price: $3.99 |
| 3 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 3 | 506986601 | SLEEVE Price: $7.99 |
| 4 | 502451901 | PULLEY B Price: $37.99 |
| 4 | 9266934 | SCREW Price: $7.89 |
| 5 | 2412-133 | CLAMP-R Price: $3.19 |
| 5 | 583350101 | FAN.BLACK.1A646083070 This part replaces 506986801. Price: $27.99 |
| 6 | 735311500 | RETAINING RING ** Price: $2.99 |
| 6 | 99-5107 | NUT-LOCK Price: $1.77 |
| 7 | 125-2398-01 | BRACKET-ROPS Price: $24.50 |
| 8 | 109-9505 | WASHER-SPRING Price: $4.49 |
| 8 | 505131102 | HOSE CLAMP 20-32 This part replaces 506987001. Price: $4.99 |
| 9 | 535402807 | CLIP Price: $0.25 |
| 10 | 535402832 | PLUG Price: $14.99 |
| 11 | 535402829 | MAGNET Price: $5.17 |
| 12 | 535402830 | HOLDER Price: $4.55 |
| 13 | 583349301 | SEAL.19, 19216334280 This part replaces 535402837. Price: $17.99 |
| 14 | 502453201 | CONTROL LEVER Price: $34.99 |
| 15 | 535402809 | PIN Price: $2.99 |
| 16 | 535402817 | ARM Price: $19.99 |
| 17 | 535402816 | PIN Price: $2.99 |
| 18 | 535402833 | PIN Price: $2.99 |
| 19 | 535402838 | ARM Price: $14.99 |
| 20 | 535402839 | RETURN SPRING Price: $11.99 |
| 21 | 535402840 | PIN Price: $3.99 |
| 22 | 535402841 | PIN Price: $2.99 |
| 50 | 574515101 | CAP KIT Price: $12.99 |
| 51 | 574515201 | O-Rings Price: $4.99 |
| 52 | 586666801 | FILTER This part replaces 535402819. Price: $74.99 |
