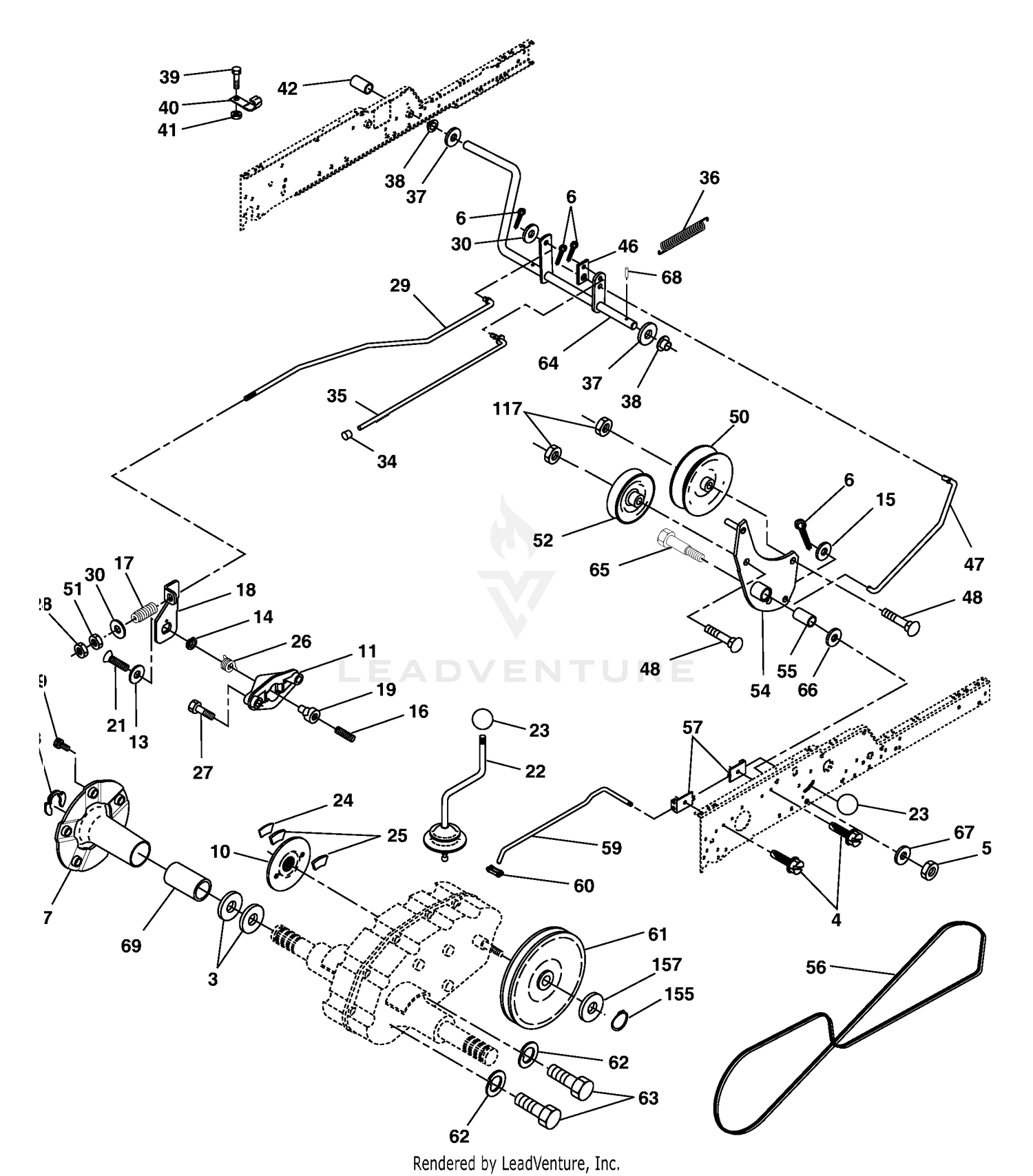

| Ref | Part Number | Description |
|---|
| 1 |
98-7417 |
PLATE-ELEMENT Price: $2.18 |
| 2 |
98-7418 |
PLATE-ELEMENT Price: $3.79 |
| 3 |
532007563 |
Washer, Thrust, Axle Price: $4.99 |
| 3 |
98-7419 |
ELEMENT-BREATHER Price: $1.72 |
| 4 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 4 |
98-7420 |
SHIELD-BREATHER, OIL Price: $5.59 |
| 5 |
873680600 |
Nut, Crownlock 3/8-16 Price: $1.99 |
| 5 |
98-7421 |
SCREW W/WASHER Price: $0.24 |
| 6 |
876020412 |
Pin, Cotter Price: $3.99 |
| 6 |
98-7422 |
JOINT-PIPE, BREATHER Price: $11.13 |
| 7 |
532634692 |
HUB.ASSEMBLY.WHEEL.REAR This part replaces 532149176. Price: $42.99 |
| 7 |
98-7423 |
PIPE-BREATHER Price: $8.51 |
| 8 |
812000034 |
Klip, Ring Price: $2.99 |
| 8 |
98-7424 |
CLAMP-PIPE Price: $6.82 |
| 9 |
532140080 |
Bolt, Hub Price: $2.99 |
| 9 |
98-7425 |
COVER-HEAD, CYLINDER Price: $373.42 |
| 10 |
532142509 |
Disc, Brake Price: $17.99 |
| 10 |
98-7426 |
GASKET-COVER, HEAD Price: $42.36 |
| 11 |
532136927 |
Yoke, Brake Disc Price: $9.99 |
| 11 |
98-7427 |
NUT-CAP Price: $6.64 |
| 12 |
98-7428 |
GASKET Price: $0.68 |
| 13 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-7429. Price: $7.25 |
| 13 |
532139419 |
Washer, Special Price: $3.99 |
| 14 |
532138901 |
Bushing Price: $3.99 |
| 15 |
819131316 |
Washer 13/32x13/16 x 16 Ga. Price: $2.99 |
| 16 |
532143012 |
Set, Screw 1/4-28 x 3/4 Price: $2.99 |
| 17 |
532126909 |
Spring Price: $2.99 |
| 18 |
532137104 |
Lever, Brake Price: $4.99 |
| 19 |
532136926 |
Cam, Brake Disc Price: $9.99 |
| 21 |
823260412 |
Screw, Flat Head 1/4-28 x 3/4 Price: $3.99 |
| 22 |
532421069 |
TUBE.HANDLE.PLOW.LH.BLACK This part replaces 532194121. Price: $37.99 |
| 23 |
532106932 |
Knob Price: $2.99 |
| 24 |
532136925 |
Support, Puck Brake Price: $3.99 |
| 25 |
532136923 |
Puck, Brake Top Price: $11.99 |
| 26 |
532137552 |
Spring, Return Price: $3.99 |
| 27 |
532193135 |
Screw, Hexwsh Thd. 5/16-18 x 1-3/4 Price: $2.66 |
| 28 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 29 |
532137213 |
Brake, Rod Price: $20.99 |
| 30 |
819131612 |
Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99 |
| 34 |
532071673 |
Cap, Plunger Price: $3.99 |
| 35 |
532137648 |
Rod, Parking Brake Price: $6.99 |
| 36 |
532149412 |
Spring, Drive Ground Price: $3.99 |
| 37 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. Price: $1.99 |
| 38 |
532150035 |
Nyliner Price: $2.99 |
| 39 |
874321016 |
Screw, Fin. #10-24 x 1 Price: $2.99 |
| 40 |
532178575 |
Actuator, Interlock Switch Price: $3.99 |
| 41 |
873931000 |
Nut, Centerlock #10-24 Price: $3.99 |
| 42 |
532008883 |
Cover, Pedal This part replaces 532124872. Price: $3.49 |
| 46 |
532145170 |
Retainer, Spring Price: $2.99 |
| 47 |
532138228 |
Clutch Rod Price: $8.99 |
| 48 |
872110612 |
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: $3.99 |
| 50 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 51 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 52 |
532139123 |
Pulley, Idler, Grooved Price: $22.99 |
| 54 |
532161590 |
Clutch, Arm Assembly Price: $18.99 |
| 55 |
532105706 |
Bearing, Idler Price: $3.99 |
| 56 |
532137153 |
V-Belt Price: $48.99 |
| 57 |
532141756 |
Bracket, Shift Rod, Hi-Lo Price: $2.99 |
| 59 |
532122253 |
Shift Rod, Hi-Lo Price: $14.99 |
| 60 |
532122268 |
Spring Clip, Connecting Link Price: $3.99 |
| 61 |
532184787 |
Pulley, Transaxle Price: $33.99 |
| 62 |
539990247 |
LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99 |
| 63 |
874780720 |
Bolt, Fin Hex 7/16-14 x 1-1/4 Price: $3.99 |
| 64 |
532154752 |
Shaft, Clutch/Brake Pedal Price: $35.99 |
| 65 |
532179613 |
Bolt, Shoulder Price: $2.99 |
| 66 |
532140296 |
Washer, Hardened Price: $2.99 |
| 67 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 68 |
532005142 |
Pin, Roll Price: $3.99 |
| 69 |
532136327 |
Hub, Cover Price: $3.99 |
| 117 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 155 |
532002267 |
Ring, Retaining This part replaces 812000028. Price: $3.99 |
