| Ref | Part Number | Description |
|---|
| 1 |
3249-3 |
SCREW-PRH Price: $0.34 |
| 1 |
532159460 |
WIRE ASM INNER W/ PLUNGER LT Price: $22.99 |
| 1 |
603-0961B-0637 |

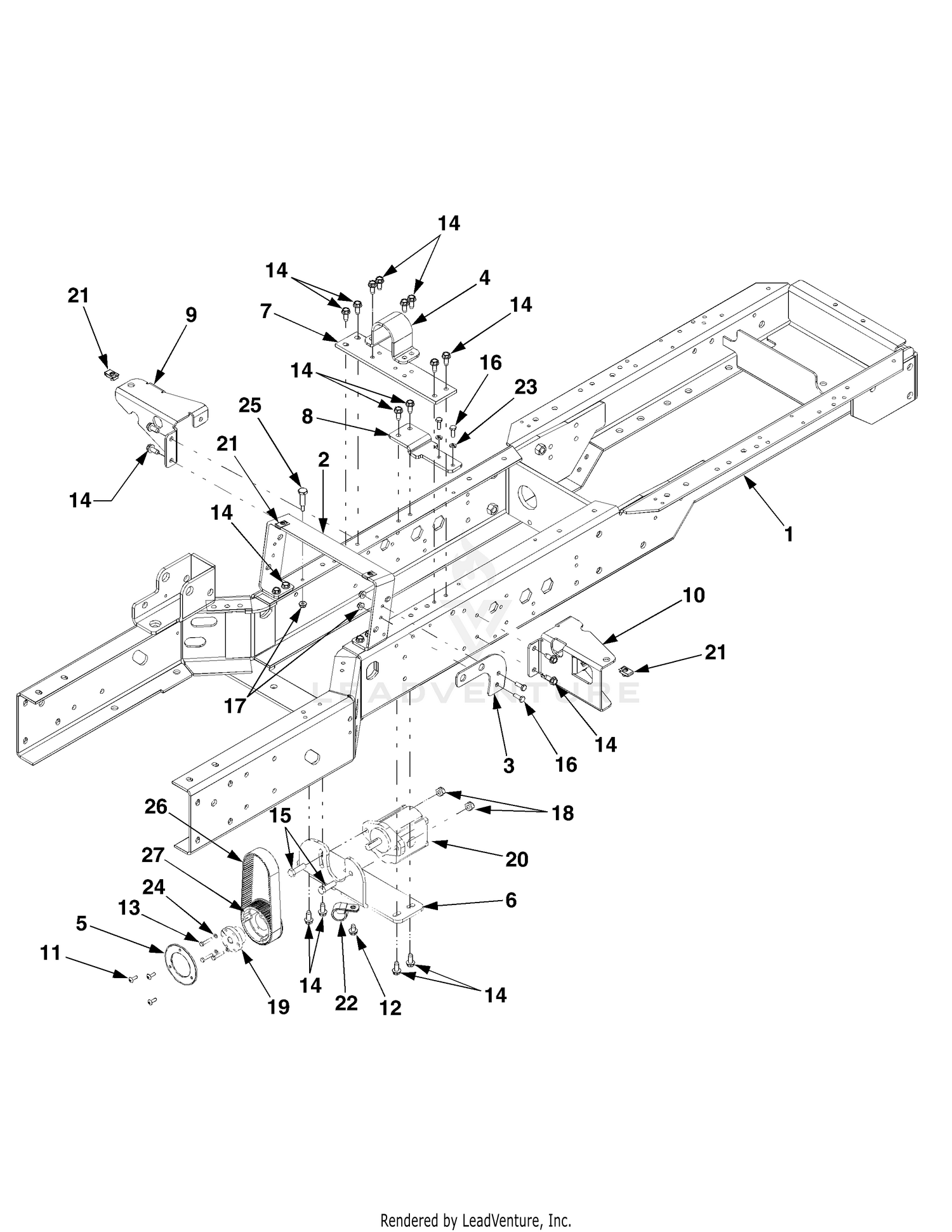

Frame Price: Call Us |
| 2 |
3256-53 |
WASHER-FLAT Price: $0.25 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 2 |
703-05031-0637 |
FRONT SEAT BRACKET (POWDER BLACK) Not Available Price: |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 3 |
703-05714-0637 |
RETURN TUBE BRACKET (POWDER BLACK) Not Available Price: |
| 3 |
94-1754 |
SWITCH & ROLLER BRACKET ASM Price: $246.41 |
| 4 |
703-05737-0637 |
DRIVE SHAFT SHIELD(POWDER BLACK) Not Available Price: |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 4 |
93-6825 |
PLATE - PUMP *B Price: $74.55 |
| 5 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 5 |
703-05741 |
BELT KEEPER PLATE Not Available Price: |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 6 |
703-05743-0637 |
AUX PUMP MOUNTING BRACKET (POWDER BLACK) Not Available Price: |
| 7 |
3217-29 |
NUT-HEX Price: $0.25 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 7 |
703-05748-0637 |
SHIELD MOUNTING PLATE (POWDER BLACK) Not Available Price: |
| 8 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 8 |
703-05771A-0637 |
FILTER MOUNTING PLATE(POWDER BLACK) Not Available Price: |
| 9 |
51-3150 |
SHIM-ARM, SPRING Price: $5.24 |
| 9 |
703-4124A-0637 |
BRACKET-RNGBRD (LH) (POWDER BLACK) Not Available Price: |
| 10 |
3220-2 |
NUT-JAM Price: $0.50 |
| 10 |
703-4125A-0637 |
BRACKET-RNGBRD (RH) (POWDER BLACK) Not Available Price: |
| 11 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 11 |
532145537 |
LIFT LINK LH This part replaces 532139865. Price: $22.99 |
| 11 |
710-0473 |
Screw, Truss Hd. Mach. #10-24 x .5 Price: $3.90 |
| 12 |
322-17 |
SCREW-HH Price: $2.62 |
| 12 |
532145536 |
LIFT LINK RH This part replaces 532139866. Price: $22.99 |
| 12 |
710-0607 |
Screw, Hex Wash. Hd Tapp 5/16-18 x .5 Price: $6.06 |
| 13 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 13 |
710-1194 |
Screw, Hex Mach. #10-24 x 1.0 GR5 Price: $3.33 |
| 14 |
321-6 |
SCREW-HH Price: $0.25 |
| 14 |
710-1260A |
Screw, Hex Wash. Hd. Tapp, 5/16-18 x .75 Price: $3.34 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 15 |
710-3005 |
Screw, Hex Cap, 3/8-16 x 1.25 GR5 Price: $3.61 |
| 15 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 16 |
104-3938-03 |
TRACTION PEDAL ASM This part replaces 83-8270. Price: $83.32 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 16 |
710-3015 |
Screw, Hex Cap, 1/4-20 x .75 GR5 Price: $3.65 |
| 17 |
532175689 |
TRUNNION This part replaces 532130171. Price: $3.99 |
| 17 |
712-04064 |
Nut, Hex Nylon Flange Lock, 1/4-20 GRF Price: $3.64 |
| 17 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 18 |
712-03000 |
Nut, Hex Lock, 3/8-20 GrB Price: Call Us |
| 18 |
93-6936 |
DISCONTINUED Price: Call Us |
| 19 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 19 |
718-04129P |
AUX PUMP PULLEY HUB Not Available This part replaces 718-04129. Price: |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 20 |
918-04130 |
AUXILIARY PUMP Not Available This part replaces 718-04130. Price: |
| 20 |
93-6859 |
SPACER Price: $9.48 |
| 21 |
2411-52 |
BEARING-ROD END, RH Price: $35.54 |
| 21 |
726-0211 |
Nut, U Speed, 5/16-18 Price: $3.90 |
| 22 |
322-9 |
SCREW-HH Price: $3.09 |
| 22 |
726-0475 |
Clamp Price: $12.11 |
| 23 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 23 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 24 |
3220-20 |
NUT-JAM Price: $0.92 |
| 24 |
736-0722 |
Washer, Lock, #10 Price: $5.81 |
| 25 |
738-0572 |
SHOULDER SCREW This part replaces 7380572. Price: $7.03 |
| 25 |
83-8760 |
DISCONTINUED Price: Call Us |
| 26 |
954-04086 |
BELT-AUX PMP DRIVE This part replaces 754-04086. Price: $59.47 |
| 27 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 28 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 29 |
74-6110 |
STOP-TRACTION Price: $21.73 |
| 30 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 31 |
251-259 |
BEARING-BALL This part replaces 251-307. Price: $13.67 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
3210-7 |
SCREW-HH Price: $0.61 |
| 33 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 34 |
93-6824 |
DISCONTINUED Price: Call Us |
| 35 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
323-7 |
SCREW-HH Price: $0.65 |
| 38 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 39 |
93-6826 |
DISCONTINUED Price: Call Us |
| 40 |
323-5 |
SCREW-HH Price: $0.41 |
| 41 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 43 |
140-6248 |
DAMPER This part replaces 76-8870. Price: $159.54 |
| 44 |
32128-44 |
NUT Price: $2.69 |
| 46 |
322-6 |
SCREW-HH Price: $0.45 |
| 47 |
3217-6 |
NUT-HEX Price: $1.19 |
