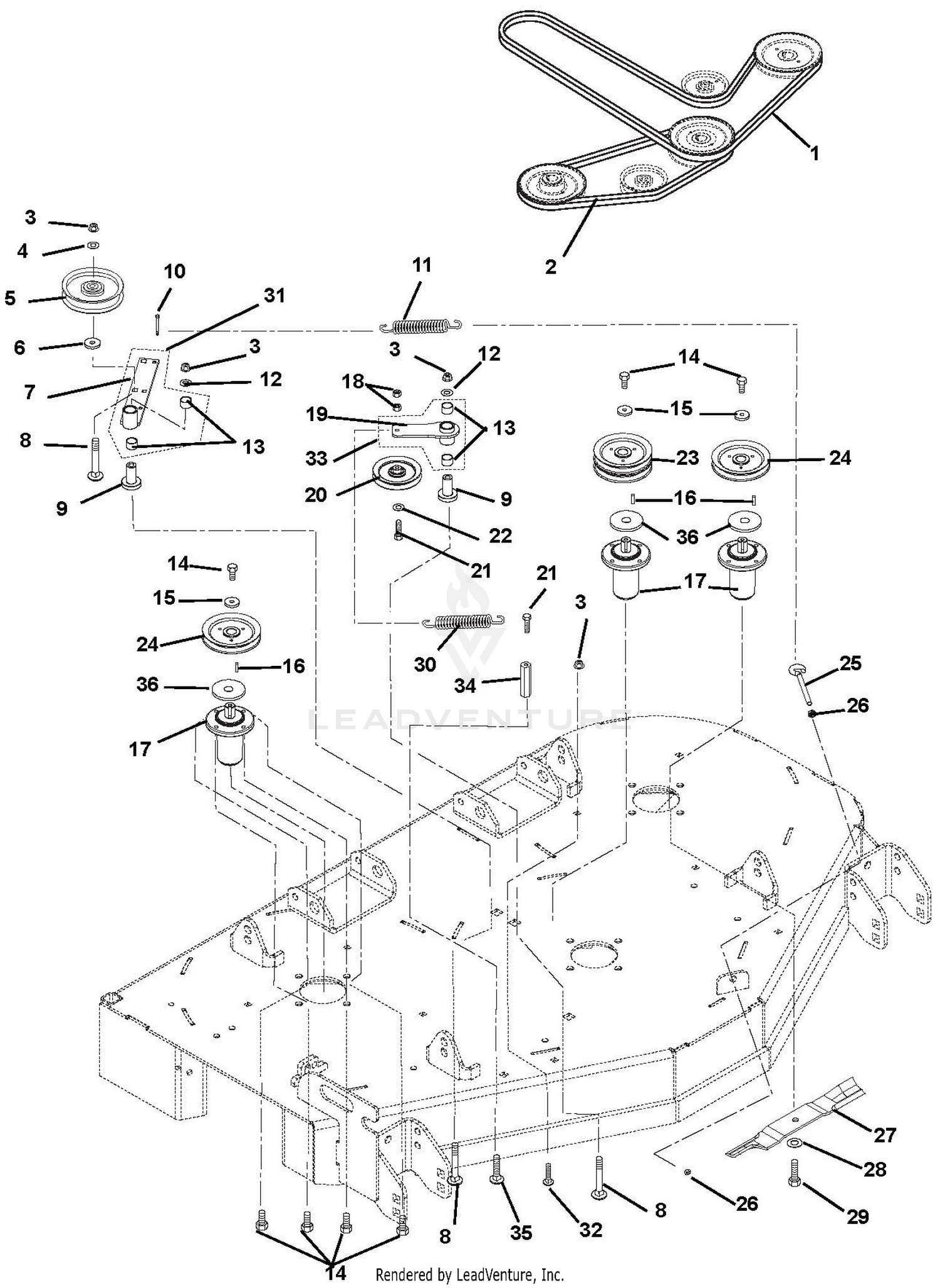

| Ref | Part Number | Description |
|---|
| 1 |
07200012 |
V-BELT, HB-WRAPPED Price: $110.95 |
| 2 |
07200035 |
V-BELT, B-COGGED Price: $48.95 |
| 3 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 4 |
06401139 |
WSHR- FLT .375X1.125X.065 ZCC This part replaces 06425500. Price: $2.45 |
| 5 |
07350100 |
IDLER, FLAT - 4.06" X .75" This part replaces 07300006. Price: $43.95 |
| 6 |
02506200 |
SPACER .380X.750X.236 Price: $3.45 |
| 7 |
00867551 |
WMT, PTO IDLER PIVOT ARM Price: $36.90 |
| 8 |
06200301 |
BLT,RHSN .38-16X2.25 G5 ZCC This part replaces 06213400. Price: $3.95 |
| 9 |
07000031 |
BEARING, PEDESTAL Price: $74.45 |
| 10 |
07000034 |
BLT,SHLDR EP .38-16X.30 HEX YZ Price: $3.45 |
| 12 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06430200. Price: $0.95 |
| 13 |
05435800 |
BRG, 1.00 X 1.12 X .75 Price: $8.45 |
| 14 |
05901721 |
BLT- HEX .38-16X1.00 G8ZCCEP30 This part replaces 05900013. Price: $1.95 |
| 15 |
06401110 |
WSHR, FLT .406X1.50X.245 ZCC This part replaces 06400006. Price: $3.95 |
| 16 |
06611200 |
KEY, SQ .25X.25X1.00 RC 40-50 Price: $2.95 |
| 17 |
59125000 |
ASM, MAINT FREE ALUM SPINDLE This part replaces 69219700. Price: $214.45 |
| 18 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 19 |
00345600 |
WMT, IDLER PIVOT ARM Price: $40.95 |
| 20 |
07351800 |
IDLER, V, 5.00X.38 This part replaces 07300015. Price: $27.95 |
| 21 |
05901640 |
BLT,HEX .38-16X2.25 G5 ZCC This part replaces 05962900. Price: $3.95 |
| 22 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 23 |
07329200 |
PULLEY, DOUBLE 1.000 ID X 5.750 OD This part replaces 07300031. Price: $72.45 |
| 24 |
07329300 |
PULLEY, V - 1.000 ID X 5.750 OD This part replaces 07300030. Price: $63.95 |
| 25 |
07001604 |
BOLT, .38-16X6.00 .62 DIA EYE This part replaces 07000030. Price: $6.45 |
| 26 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 27 |
00450200 |
BLADE, 16.19" MOWER (HI-LIFT) Price: $25.95 |
| 28 |
06445700 |
WSHR-BLVL .669X1.535X.138 Price: $4.45 |
| 29 |
05901822 |
BLT, HEX .62-18X1.75 G8 ZCC This part replaces 05978900. Price: $3.45 |
| 30 |
08300728 |
SPRING- EXTENSION This part replaces 08336000. Price: $24.95 |
| 32 |
06200006 |
BLT-RDHDSHSQNKFT.50-13X1.50 G5 Price: $5.45 |
| 34 |
06533500 |
NUT COUPLING .375-16X1.75 Price: $3.45 |
| 35 |
06200235 |
BLT,RHSSN .38-16X1.00 G5 ZCC This part replaces 06212000. Price: $1.45 |
